Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-0648D-30A
JGX-0648 Series

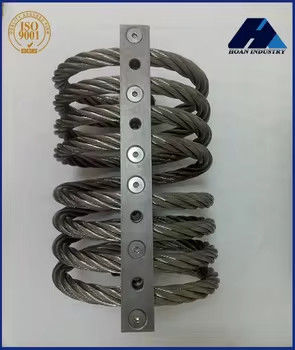

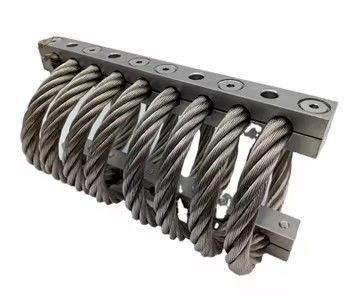

The JGX-0648D-30A wire rope isolator is another kind type isolators which are included in the family JGX-0648 series. The stainless steel cables and retaining bars of the JGX-0648D-30A provides amazing vibration isolation any time in use.
JGX-0648D-30A is the new designed 8 loops 6.4mm diameter wire rope isolators with max static load of 30kg, especially used in any instruments or systems for noise attenuation. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.
The JGX-0648D-30A model is widely used in the field of vehicles, armored cars, launcher, highway transportation, marine,shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 79 | 17.8 | 382 | 182 |
| 2 | JGX-0648D-68A | 68 | 23.9 | 266 | 116 |
| 3 | JGX-0648D-56A | 56 | 29.0 | 196 | 79 |
| 4 | JGX-0648D-45A | 45 | 32.0 | 151 | 60 |
| 5 | JGX-0648D-39A | 39 | 32.0 | 127 | 51 |
| 6 | JGX-0648D-36A | 36 | 35.6 | 109 | 42 |
| 7 | JGX-0648D-33A | 33 | 35.6 | 100 | 39 |
| 8 | JGX-0648D-30A | 30 | 50.8 | 74 | 25 |
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 56.7 | 25.9 | 215 | 89 |
| 2 | JGX-0648D-68A | 47.7 | 34.0 | 151 | 58 |
| 3 | JGX-0648D-56A | 39.8 | 39.6 | 109 | 40 |
| 4 | JGX-0648D-45A | 32.8 | 45.7 | 86 | 30 |
| 5 | JGX-0648D-39A | 27.9 | 45.7 | 72 | 25 |
| 6 | JGX-0648D-36A | 25.3 | 50.8 | 61 | 21 |
| 7 | JGX-0648D-33A | 23.4 | 50.8 | 56 | 19 |
| 8 | JGX-0648D-30A | 21.3 | 71.6 | 41 | 12 |
| NO. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-0648D-79A | 43.2 | 18.8 | 110 | 110 |
| 2 | JGX-0648D-68A | 36.3 | 24.9 | 72 | 72 |
| 3 | JGX-0648D-56A | 31.7 | 30.0 | 49 | 49 |
| 4 | JGX-0648D-45A | 25.0 | 34.0 | 37 | 37 |
| 5 | JGX-0648D-39A | 22.7 | 34.0 | 32 | 32 |
| 6 | JGX-0648D-36A | 20.4 | 38.1 | 25 | 25 |
| 7 | JGX-0648D-33A | 18.2 | 38.1 | 23 | 23 |
| 8 | JGX-0648D-30A | 15.9 | 52.8 | 16 | 16 |
* The material of the mounting splint *
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy plywood *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
