Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX-1276D-149B
JGX-1276 Series

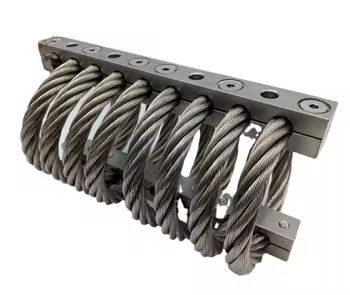

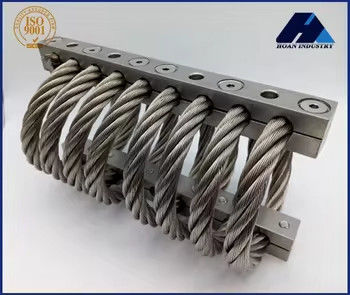

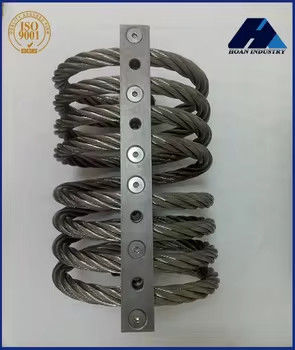

In the field of modern industry, with the continuous progress of technology and the increasing complexity of equipment, the requirements for the stability and reliability of the equipment operating environment are getting higher and higher. In order to meet this demand, JGX-1276 series shock absorbers came into being, which has become an indispensable and important part of many industrial equipment.
As a newly designed vibration isolator, JGX-1276 series shock absorber has a maximum static load range from 92kg to 280kg, which can adapt to the vibration damping needs of various large heavy equipment and systems. This strong carrying capacity makes the JGX-1276 series widely used in the industrial field.
JGX-1276 series shock absorbers also have good adaptability. It can be flexibly configured and adjusted according to the needs of different equipment and working conditions. Whether it is installed vertically or horizontally, whether it is subjected to axial or radial forces, the JGX-1276 series can provide a suitable solution. This high degree of flexibility allows it to be used in a wide range of different types of equipment and systems.
JGX-1276 series shock absorbers also play an important role in some special fields. For example, in the military sphere, it can be used for vibration damping and stabilization of equipment and weapon systems; In the aerospace field, it can be used for vibration damping and stability control of aircraft; In offshore engineering, it can be used for vibration damping and stabilization of offshore platforms and ships.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 278 | 32.0 | 716 | 352 |
| 2 | JGX-1278D-233B | 233 | 38.1 | 531 | 249 |
| 3 | JGX-1278D-220B | 220 | 43.2 | 461 | 208 |
| 4 | JGX-1278D-176B | 176 | 48.8 | 343 | 147 |
| 5 | JGX-1276D-149B | 149 | 59.9 | 256 | 103 |
| 6 | JGX-1276D-130B | 130 | 74.7 | 196 | 72 |
| 7 | JGX-1276D-115B | 115 | 85.9 | 154 | 54 |
| 8 | JGX-1276D-92B | 92 | 102.6 | 111 | 37 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 197.4 | 44.7 | 405 | 177 |
| 2 | JGX-1278D-233B | 165.7 | 52.8 | 298 | 126 |
| 3 | JGX-1278D-220B | 156.6 | 61.0 | 263 | 105 |
| 4 | JGX-1278D-176B | 124.8 | 68.6 | 194 | 74 |
| 5 | JGX-1276D-149B | 106.6 | 84.8 | 144 | 51 |
| 6 | JGX-1276D-130B | 93.1 | 105.7 | 110 | 37 |
| 7 | JGX-1276D-115B | 81.7 | 121.9 | 88 | 28 |
| 8 | JGX-1276D-92B | 63.6 | 144.8 | 62 | 19 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 152.0 | 33.0 | 221 | 221 |
| 2 | JGX-1278D-233B | 124.8 | 40.1 | 156 | 156 |
| 3 | JGX-1278D-220B | 115.7 | 45.2 | 130 | 130 |
| 4 | JGX-1278D-176B | 93.1 | 50.8 | 91 | 91 |
| 5 | JGX-1276D-149B | 61.3 | 56.9 | 60 | 60 |
| 6 | JGX-1276D-130B | 45.4 | 77.7 | 46 | 46 |
| 7 | JGX-1276D-115B | 34.1 | 90.9 | 33 | 33 |
| 8 | JGX-1276D-92B | 22.7 | 107.7 | 23 | 23 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
