Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JGX1276D-115B
JGX-1276 Series
In the field of modern industry, with the continuous progress of technology and the increasing complexity of equipment, the requirements for the stability and reliability of the equipment operating environment are getting higher and higher. In order to meet this demand, JGX-1276 series shock absorbers came into being, which has become an indispensable and important part of many industrial equipment.

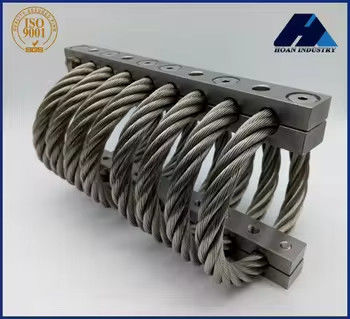

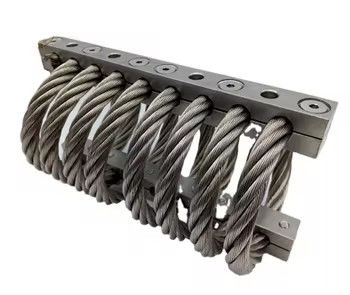

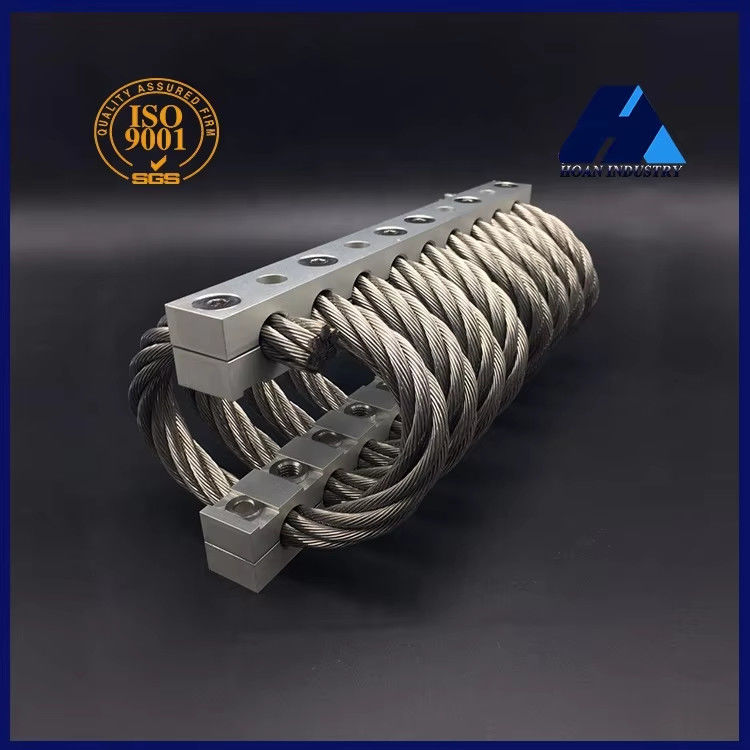

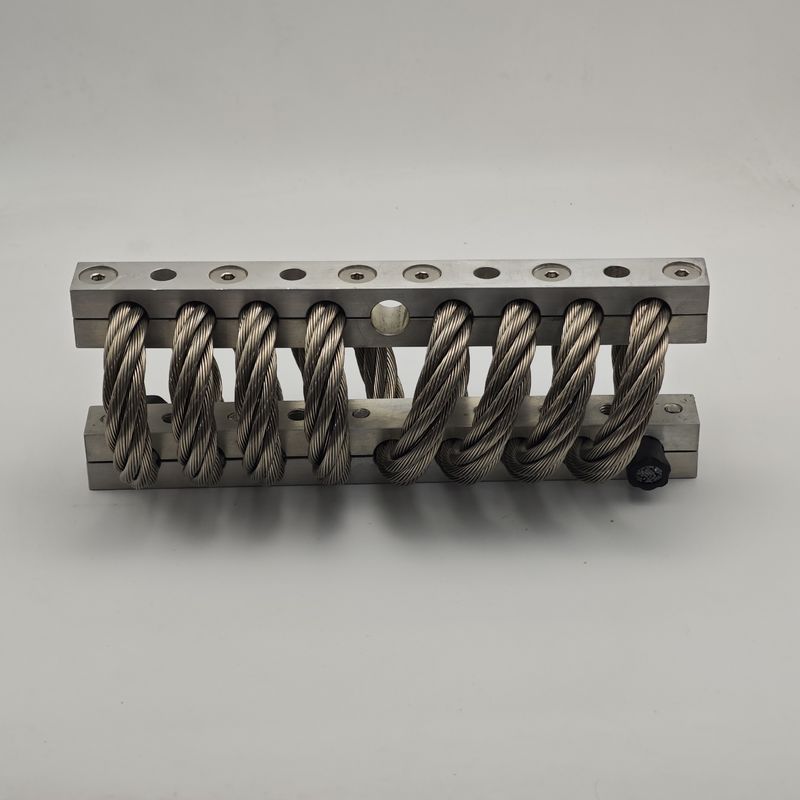

As a newly designed vibration isolator, JGX-1276 series shock absorber has a maximum static load range from 92kg to 280kg, which can adapt to the vibration damping needs of various large heavy equipment and systems. This strong carrying capacity makes the JGX-1276 series widely used in the industrial field.
The JGX-1276 series shock absorbers are also extremely convenient in terms of installation and maintenance. Its structural design is simple and reasonable, which makes the installation process fast and efficient. At the same time, due to its excellent durability and reliability, the maintenance interval is also relatively long, which greatly reduces the maintenance burden of users.
JGX-1276 series shock absorbers have a wide range of applications. It plays an indispensable role in industries such as automotive manufacturing, mechanical engineering, power equipment or construction engineering. For example, in the automobile manufacturing industry, the JGX-1276 series can be used to dampen the vibration of the engine and improve the comfort and stability of the vehicle; In machinery manufacturing, it can be used to support and fix various mechanical equipment to reduce vibration and noise during equipment operation; In power equipment, it can be used to fix generators, transformers and other equipment to ensure the stable operation of the equipment; In construction engineering, it can be used for seismic reinforcement of building structures and improve the seismic performance of buildings.
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 278 | 32.0 | 716 | 352 |
| 2 | JGX-1278D-233B | 233 | 38.1 | 531 | 249 |
| 3 | JGX-1278D-220B | 220 | 43.2 | 461 | 208 |
| 4 | JGX-1278D-176B | 176 | 48.8 | 343 | 147 |
| 5 | JGX-1276D-149B | 149 | 59.9 | 256 | 103 |
| 6 | JGX-1276D-130B | 130 | 74.7 | 196 | 72 |
| 7 | JGX-1276D-115B | 115 | 85.9 | 154 | 54 |
| 8 | JGX-1276D-92B | 92 | 102.6 | 111 | 37 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 197.4 | 44.7 | 405 | 177 |
| 2 | JGX-1278D-233B | 165.7 | 52.8 | 298 | 126 |
| 3 | JGX-1278D-220B | 156.6 | 61.0 | 263 | 105 |
| 4 | JGX-1278D-176B | 124.8 | 68.6 | 194 | 74 |
| 5 | JGX-1276D-149B | 106.6 | 84.8 | 144 | 51 |
| 6 | JGX-1276D-130B | 93.1 | 105.7 | 110 | 37 |
| 7 | JGX-1276D-115B | 81.7 | 121.9 | 88 | 28 |
| 8 | JGX-1276D-92B | 63.6 | 144.8 | 62 | 19 |
| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 152.0 | 33.0 | 221 | 221 |
| 2 | JGX-1278D-233B | 124.8 | 40.1 | 156 | 156 |
| 3 | JGX-1278D-220B | 115.7 | 45.2 | 130 | 130 |
| 4 | JGX-1278D-176B | 93.1 | 50.8 | 91 | 91 |
| 5 | JGX-1276D-149B | 61.3 | 56.9 | 60 | 60 |
| 6 | JGX-1276D-130B | 45.4 | 77.7 | 46 | 46 |
| 7 | JGX-1276D-115B | 34.1 | 90.9 | 33 | 33 |
| 8 | JGX-1276D-92B | 22.7 | 107.7 | 23 | 23 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
