Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GX-40A(N)
GX Series

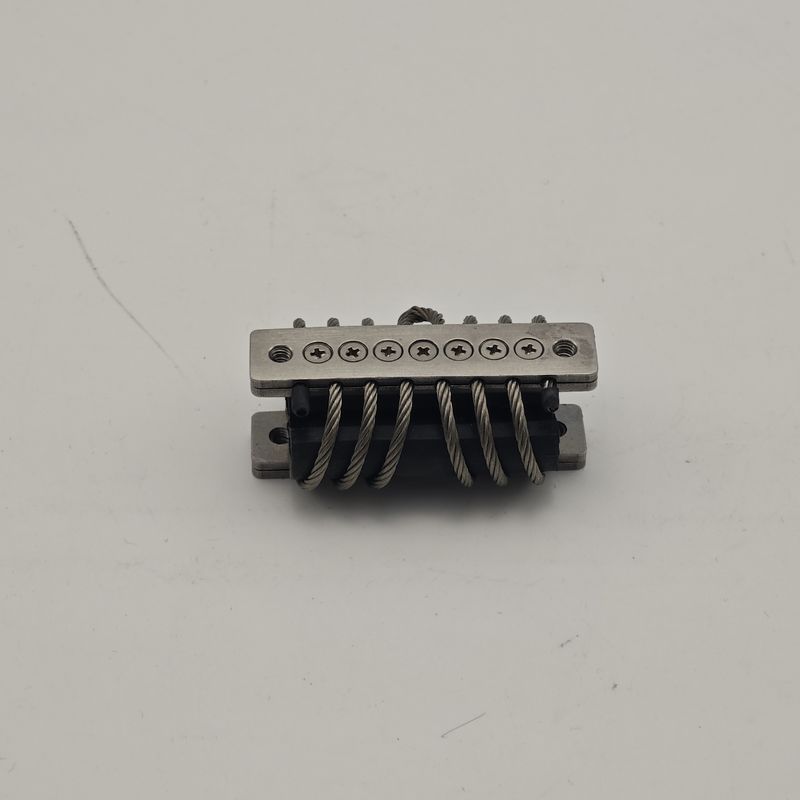

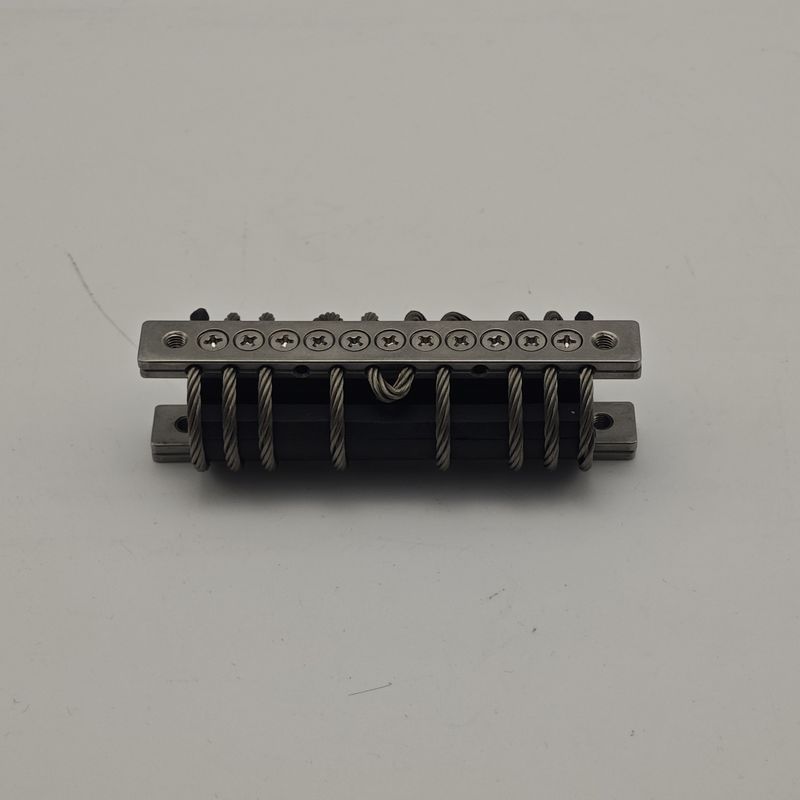

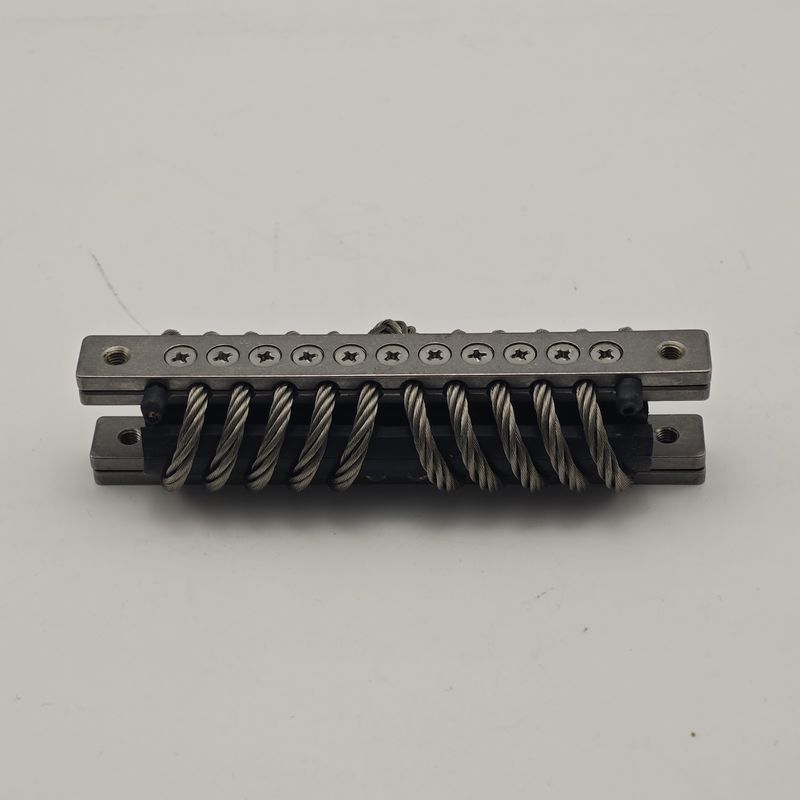

GX-40AN New Rubber Pad Anti-Strength Impact Wire Rope Vibration Isolator: The "Shock Absorber Master" in the Industry In all areas of industrial production, vibration has always been an important factor affecting the stable operation of equipment and product quality. In order to solve this problem, engineers have developed a variety of vibration isolators, among which the GX-40AN new rubber pad anti-strong impact steel wire rope vibration isolator has attracted attention for its excellent performance.
In addition to strong shock resistance, the GX-40AN also has excellent vibration isolation performance. Its arched rubber pad design not only provides vibration isolation cushioning in the Pz direction, but also guarantees vibration isolation in other directions. This all-round vibration isolation design enables the GX-40AN to adapt to a variety of complex working environments and changing working conditions.
The GX-40AN shock absorber has a wide range of applications, covering almost all industrial fields that require vibration control. In the field of military equipment, the GX-40AN is used in key weapon systems such as armored vehicles, self-propelled guns, missile launchers, etc. It is able to effectively absorb the strong impact force generated when firing, improving the stability and shooting accuracy of the weapon system. For example, in a certain model of main battle tank, the GX-40AN vibration isolator is installed at the turret and hull junction, which significantly improves the stability and shooting accuracy of the tank.
GX-40AN new rubber pad anti-strong impact wire rope vibration isolator has become the "shock absorption master" in the industry with its excellent performance and wide range of applications. It not only improves the stability of the equipment and structure, but in many cases, significantly increases the efficiency and service life of the system. With the continuous progress of science and technology and the continuous development of industry, the application prospect of GX-40AN vibration isolator will be broader, contributing to the construction of a safer and more efficient modern industrial society.
Technical Parameter Table
| Technical Parameter | 型号 | |
| Pz Nominal Load(N) | GX-A | GX-AN |
| Deflection | 10～60 | |
| Resonance Magnification | Pressed down | |
| High Frequency Efficiency | ≤4 | |
| Working Temperature | ≥95 | |
| Shock(Ks) | 30g/11ms | 100g/6ms |
| Peak Response G | ≤3.5Km/s2 | |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
