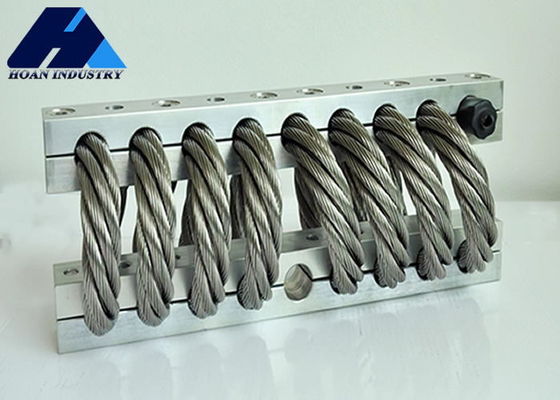

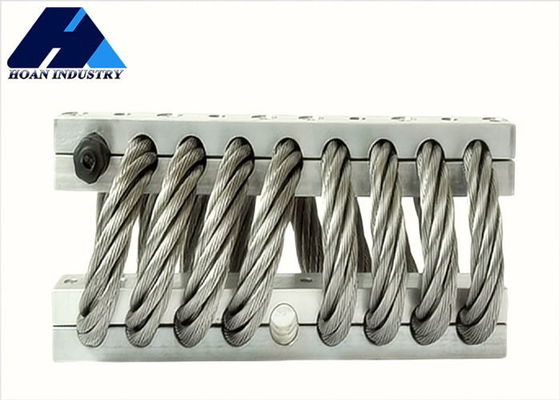

Name: 216mm High Return Air Function Perfect Solution for Industries Wire Rope Vibration Isolator JGX-2228D-960B SPRING SHOCK ABSORBER
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-2228D-960B
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

216mm High Return Air Function Perfect Solution for Industries Wire Rope Vibration Isolator JGX-2228D-960B SPRING SHOCK ABSORBER

Industries Wire Rope Vibration Isolator

216mm Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-2228D-960B

Request A Quote

Product Details

Condition:

New

Mounting Orientation:

Vertical

Width:

102/112/121/135/152/165/178mm

Manufacturer:

XYZ Company

Function:

Return Air

Showroom Location:

None

Warranty:

1 Year

Feature:

Durable

Working Temperatu:

: -55 ~ +120

High:

216mm

Shock Absorption:

Yes

Maintenance:

Low

Packing:

Standard Packing

Marketing Type:

Hot Product 2019

Product Keywords:

Wire Vibration Damper

Highlight:

Industries Wire Rope Vibration Isolator

216mm Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

Stable and Durable Wire Rope Vibration Isolator for Aerial Photography with GR3-11D-A Precision Spring Shock Absorber

Get Best Price

Video

JGX-0400A-31.5A Wire Rope Vibration Isolator Vertical Mounting for Protecting Your Equipment from Vibration and Shock

Get Best Price

Video

Stainless Steel Wire Rope Vibration Isolator For Aerial And Communication Water-Proof And Durability JGX-0400-31.5A

Get Best Price

JGX-0648D-56A Meticulously Designed Wire Rope Vibration Isolator for Optimal Performance in Various Devices

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-2228 Series

In modern industry, steel wire rope vibration isolators play a crucial role. They are mainly composed of high - strength steel wire ropes, and their unique structures endow them with excellent vibration isolation performance. During operation, through the mutual friction and elastic deformation of the steel wire ropes, vibration energy is converted into heat energy and dissipated.This type of vibration isolator can operate stably in harsh environments, whether it is a high - impact or high - humidity setting. It can significantly reduce the vibration and noise of equipment, improve the reliability and service life of equipment,and is an ideal choice to ensure the normal operation of various precision equipment and mechanical devices.

On the path of pursuing stable equipment operation, steel wire rope vibration isolators stand out. Relying on their unique steel wire rope structures, they effectively isolate external vibration interference, creating a stable operating environment for equipment. They not only have remarkable vibration isolation effects but also possess excellent shock resistance, being able to withstand sudden external impacts. With a long lifespan and low maintenance costs, they don't need to be replaced or maintained frequently. Nowadays, in industries with extremely high requirements for equipment stability, such as aerospace and shipbuilding,steel wire rope vibration isolators have become indispensable key components.

Product parameters

	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	JGX-2228D-1250B	1250	50.8	2362	1010
2	JGX-2228D-960B	960	67.3	1513	585
3	JGX-2228D-860B	860	74.9	1270	469
4	JGX-2228D-665B	665	102.9	800	263
5	JGX-2228D-550B	550	125.7	585	180
6	JGX-2228D-380B	380	125.7	377	138

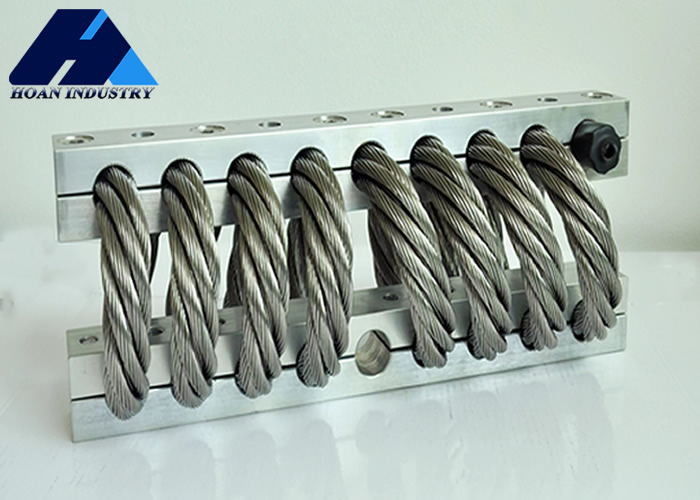

216mm High Return Air Function Perfect Solution for Industries Wire Rope Vibration Isolator JGX-2228D-960B SPRING SHOCK ABSORBER 1

	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	JGX-2228D-1250B	889.8	72.4	1348	503
2	JGX-2228D-960B	680.6	96.5	860	289
3	JGX-2228D-860B	613.3	105.4	718	235
4	JGX-2228D-665B	454.1	144.8	448	131
5	JGX-2228D-550B	331.6	177.8	327	89
6	JGX-2228D-380B	215.3	177.8	212	70

	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock)
1	JGX-2228D-1250B	626.5	53.3	618	618
2	JGX-2228D-960B	361.5	71.1	356	356
3	JGX-2228D-860B	294.9	77.5	291	291
4	JGX-2228D-665B	165.3	108.0	163	163
5	JGX-2228D-550B	113.2	132.1	112	112
6	JGX-2228D-380B	77.6	132.1	77	77

* The material of the wire rope splint *
Stainless Steel or Aluminum can be selected

* Surface treatment options for aluminum alloy plywood *

· White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
· Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
