Name: JGX-0160A-2.7A High-Performance Wire Rope Vibration Isolator for Aerospace Industry and Space Exploration WIRE CABLE VIBRATION ISOLATOR
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0160A-2.7A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-0160A-2.7A High-Performance Wire Rope Vibration Isolator for Aerospace Industry and Space Exploration WIRE CABLE VIBRATION ISOLATOR

Aerospace Industry Wire Rope Vibration Isolator

High-Performance Wire Rope Vibration Isolator

Space Exploration Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0160A-2.7A

Request A Quote

Product Details

Condition:

New

Installation:

Wall Mounted

Color:

Black

Load Capacity:

500 Lbs

Vibration Frequency:

10-100Hz

Mounting Orientation:

Vertical

Working Temperatu:

: -55 ~ +120

Strand Construction:

7 X 19

Compression Ratio:

1:2

Certifications:

ISO 9001:2015

Core Components:

Design

Size:

Customized

Maximum Load Capacity:

2.7kg

Feature:

Vibration Isolation

Highlight:

Aerospace Industry Wire Rope Vibration Isolator

High-Performance Wire Rope Vibration Isolator

Space Exploration Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

Stable and Durable Wire Rope Vibration Isolator for Aerial Photography with GR3-11D-A Precision Spring Shock Absorber

Get Best Price

Video

JGX-0400A-31.5A Wire Rope Vibration Isolator Vertical Mounting for Protecting Your Equipment from Vibration and Shock

Get Best Price

Video

Stainless Steel Wire Rope Vibration Isolator For Aerial And Communication Water-Proof And Durability JGX-0400-31.5A

Get Best Price

JGX-0648D-56A Meticulously Designed Wire Rope Vibration Isolator for Optimal Performance in Various Devices

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0160 Series

The aerospace-grade steel wire vibration isolator embodies cutting-edge technology and exquisite craftsmanship, and is specially developed for the harsh aerospace environment. High-strength and lightweight alloy steel wires are selected and undergo special surface treatment, endowing it with excellent performance in resisting high and low temperatures as well as radiation.

On satellites and spacecraft, it can effectively isolate the vibrations of engines and the micro-vibrations in the space environment, ensuring the stable operation of key components such as electronic devices and optical systems, and guaranteeing the smooth completion of tasks such as communication and remote sensing. On airplanes, it can reduce the impact of engine vibrations on the fuselage and onboard equipment, improving flight safety and comfort.

This vibration isolator has extremely high reliability and impact resistance, meeting strict aerospace standards. It adopts a modular design, making it easy to install and maintain. It provides a solid guarantee for the development of the aerospace industry and contributes to humanity's journey of exploring the universe.

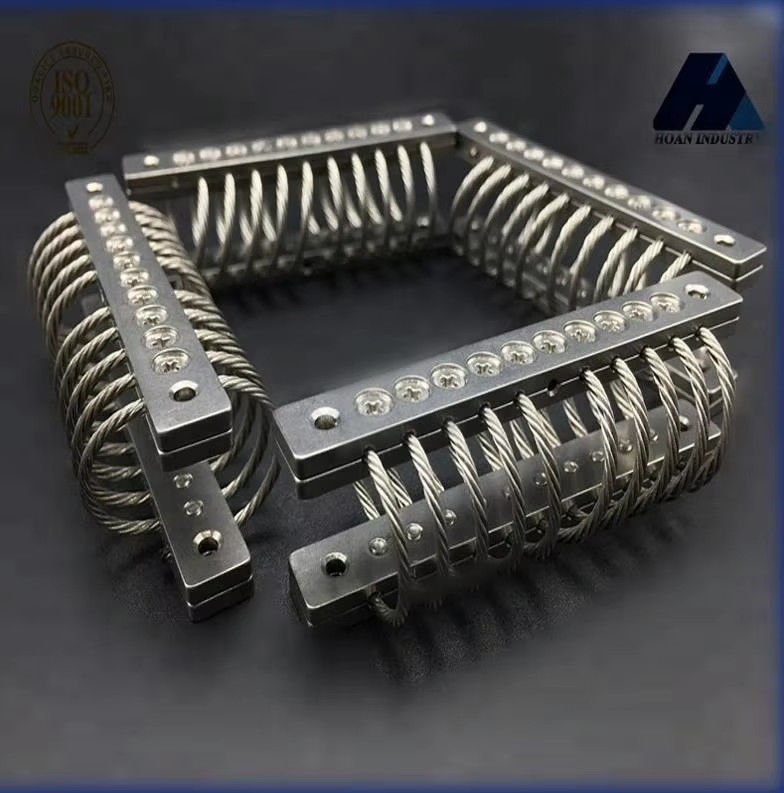

JGX-0160A-2.7A High-Performance Wire Rope Vibration Isolator for Aerospace Industry and Space Exploration WIRE CABLE VIBRATION ISOLATOR 0

Static-Load Curve

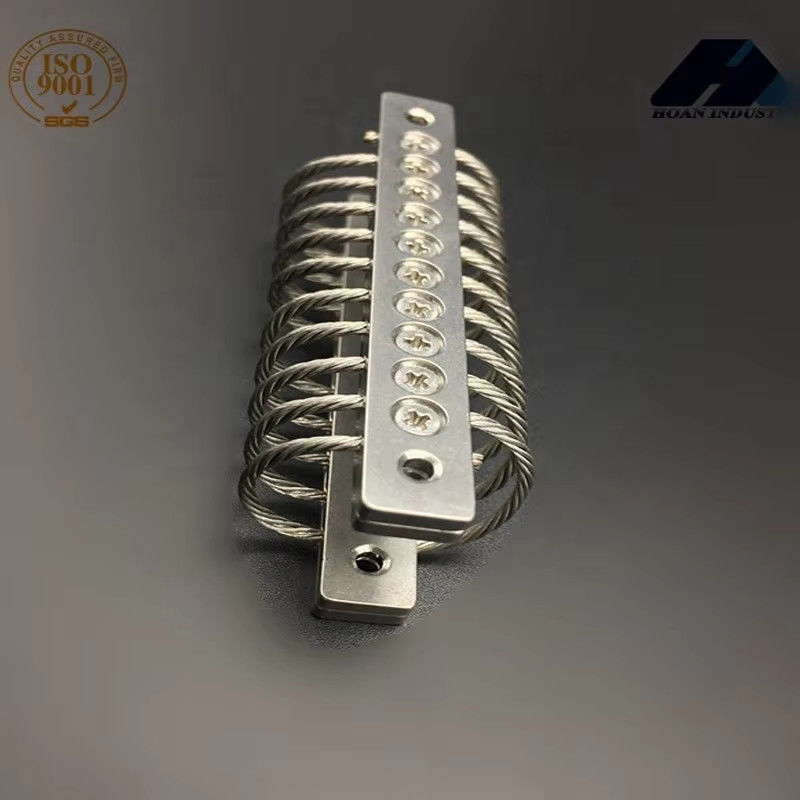

JGX-0160A-2.7A High-Performance Wire Rope Vibration Isolator for Aerospace Industry and Space Exploration WIRE CABLE VIBRATION ISOLATOR 1

No.	Model	Max Static Load (KG)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(Shock) (KNm)
1	JGX-0160A-4.8A	4.8	8.6	36	22
2	JGX-0160A-3.6A	3.6	9.7	25	16
3	JGX-0160A-3.2A	3.2	14.7	17	8.8
4	JGX-0160A-2.7A	2.7	17.8	12	6.1
5	JGX-0160A-2.2A	2.2	18.8	11	5.3
6	JGX-0160A-2A	2.0	21.8	7.9	3.9

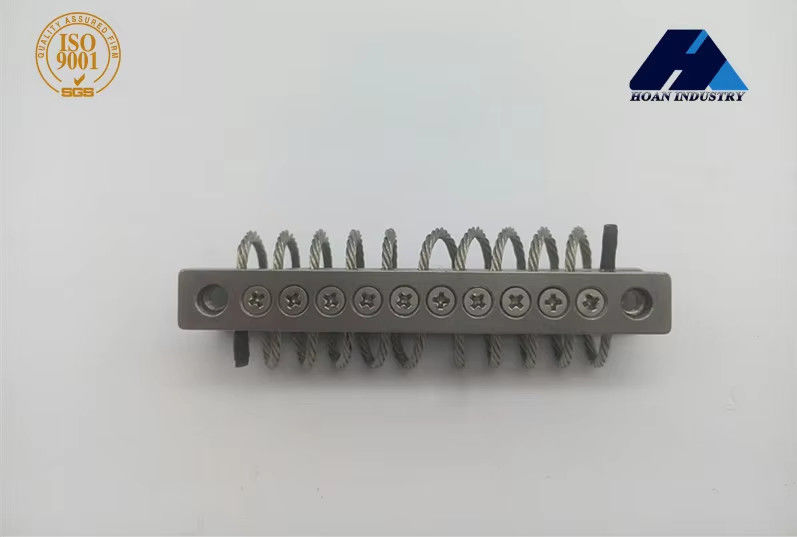

JGX-0160A-2.7A High-Performance Wire Rope Vibration Isolator for Aerospace Industry and Space Exploration WIRE CABLE VIBRATION ISOLATOR 2

No.	Model	Max Static Load (KG)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(Shock) (KNm)
1	JGX-0160A-4.8A	3.4	11.7	20	11.4
2	JGX-0160A-3.6A	2.4	14.7	14	7.0
3	JGX-0160A-3.2A	2.4	20.8	11	4.7
4	JGX-0160A-2.7A	1.8	24.9	7.0	3.0
5	JGX-0160A-2.2A	1.8	26.9	6.1	2.6
6	JGX-0160A-2A	1.6	31.0	5.3	1.9

JGX-0160A-2.7A High-Performance Wire Rope Vibration Isolator for Aerospace Industry and Space Exploration WIRE CABLE VIBRATION ISOLATOR 3

No.	Model	Max Static Load (KG)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(Shock) (KNm)
1	JGX-0160A-4.8A	2.2	8.6	14	14
2	JGX-0160A-3.6A	1.8	10.7	8.8	8.8
3	JGX-0160A-3.2A	1.6	15.7	5.3	5.3
4	JGX-0160A-2.7A	1.3	18.8	3.9	3.9
5	JGX-0160A-2.2A	1.3	19.8	3.2	3.2
6	JGX-0160A-2A	1.1	22.8	2.3	2.3

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays.
