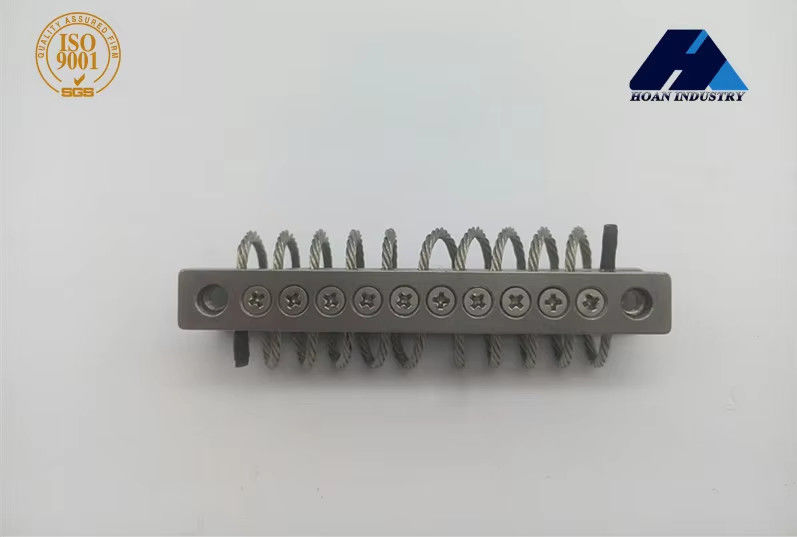

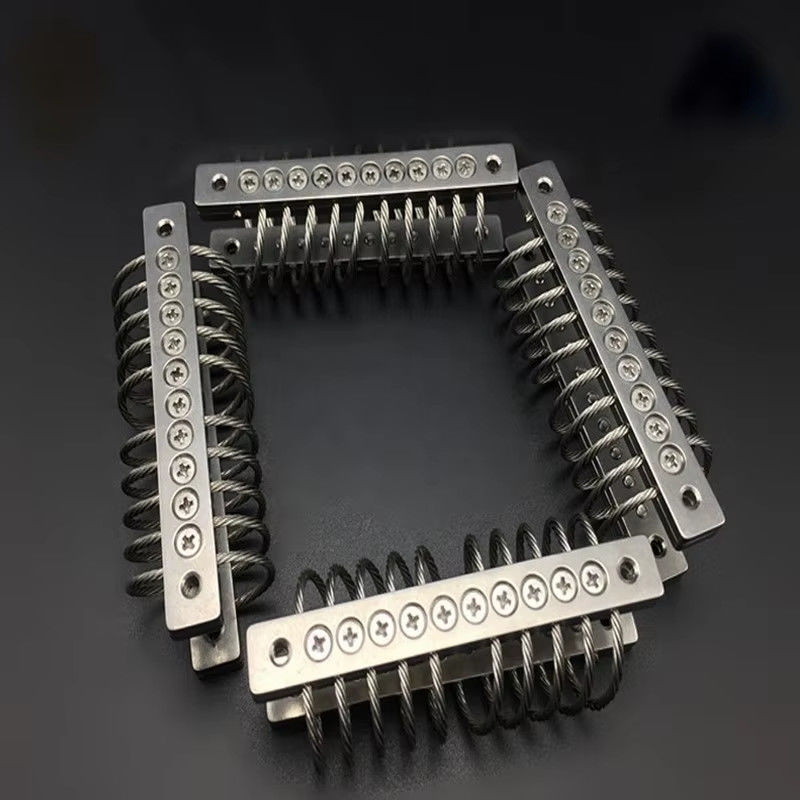

Name: Max Static Load 4.8kg Max Deflection 8.6mm Wire Rope Vibration Isolator High Shock Absorption for Heavy-Duty Equipment
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0160A-4.8A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

Max Static Load 4.8kg Max Deflection 8.6mm Wire Rope Vibration Isolator High Shock Absorption for Heavy-Duty Equipment

Heavy Duty Wire Rope Vibration Isolator

8.6mm Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0160A-4.8A

Request A Quote

Max Static Load 4.8kg Max Deflection 8.6mm Wire Rope Vibration Isolator High Shock Absorption for Heavy-Duty Equipment

Product Details

Axial Stiffness:

50N/mm

Isolator Type:

Vibration

Applicable Industries:

Building Material Shops, Energy & Mining

Height:

50mm

Wire Rope Material:

Galvanized Steel

Shock Absorption:

High

Structure:

Helical Spring

Resonance Frequency:

30 Hz

Core Components:

Bearing, Pump

Resonant Frequency:

10Hz

Mounting Type:

Threaded

Shape:

Cylindrical

Shock Resistance:

20g/11ms

After Warranty Service:

Online Support

Port:

Xi'an

Highlight:

Heavy Duty Wire Rope Vibration Isolator

8.6mm Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments

Get Best Price

Video

Temperature Resistant GR4-18D-A Wire Rope Vibration Isolator for Smooth Industrial Operations

Get Best Price

Video

GR2-12D-A Cinema Shock Absorber Professional Grade Wire Rope Vibration Isolator for Smooth Filmmaking

Get Best Price

Video

JGX-0956A-75A Wire Rope Vibration Isolator For Aerospace And Military Equipment With Nonlinear Stiffness

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0160 Series

Xi'an Hoan Microwave Co., Ltd. is a high-tech enterprise specializing in the research, development, and production of wire rope vibration isolators. The company's products are precisely woven from high-strength stainless steel wire ropes, featuring excellent vibration damping, shock resistance, and corrosion resistance properties. They are widely applied in fields such as military industry, ships, precision instruments, rail transit, and so on.

The wire rope vibration isolators of Hoan Microwave can effectively absorb vibration energy in different directions, protect equipment from vibration damage, and extend its service life. The company strictly controls product quality to ensure that each product meets international standards, providing customers with high-reliability and long-life vibration isolation solutions.

Product Performance

Max Static Load 4.8kg Max Deflection 8.6mm Wire Rope Vibration Isolator High Shock Absorption for Heavy-Duty Equipment 0

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0160A-4.8A	4.8	8.6	36	22
2	JGX-0160A-3.6A	3.6	9.7	25	16
3	JGX-0160A-3.2A	3.2	14.7	17	8.8
4	JGX-0160A-2.7A	2.7	17.8	12	6.1
5	JGX-0160A-2.2A	2.2	18.8	11	5.3
6	JGX-0160A-2A	2.0	21.8	7.9	3.9

Max Static Load 4.8kg Max Deflection 8.6mm Wire Rope Vibration Isolator High Shock Absorption for Heavy-Duty Equipment 1

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0160A-4.8A	3.4	11.7	20	11.4
2	JGX-0160A-3.6A	2.4	14.7	14	7.0
3	JGX-0160A-3.2A	2.4	20.8	11	4.7
4	JGX-0160A-2.7A	1.8	24.9	7.0	3.0
5	JGX-0160A-2.2A	1.8	26.9	6.1	2.6
6	JGX-0160A-2A	1.6	31.0	5.3	1.9

Max Static Load 4.8kg Max Deflection 8.6mm Wire Rope Vibration Isolator High Shock Absorption for Heavy-Duty Equipment 2

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0160A-4.8A	2.2	8.6	14	14
2	JGX-0160A-3.6A	1.8	10.7	8.8	8.8
3	JGX-0160A-3.2A	1.6	15.7	5.3	5.3
4	JGX-0160A-2.7A	1.3	18.8	3.9	3.9
5	JGX-0160A-2.2A	1.3	19.8	3.2	3.2
6	JGX-0160A-2A	1.1	22.8	2.3	2.3

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
