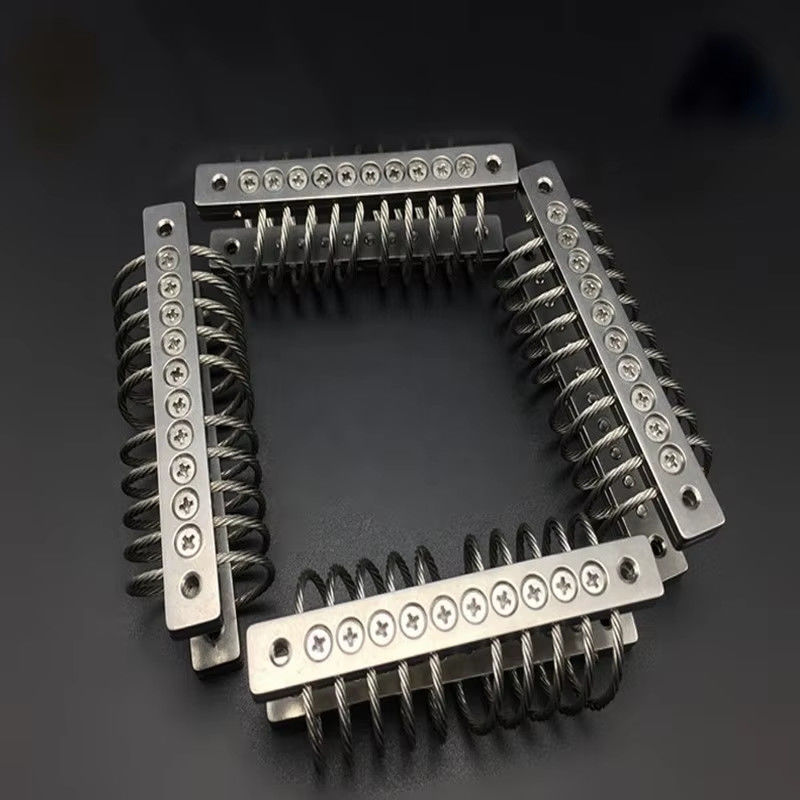

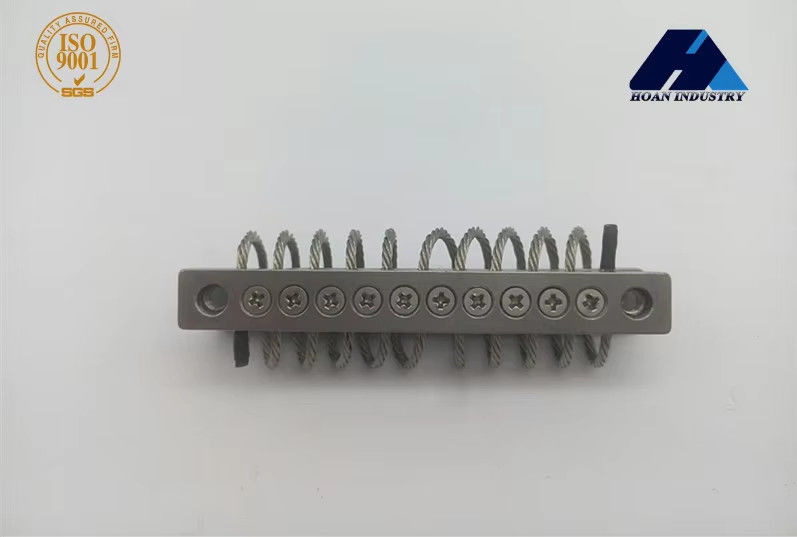

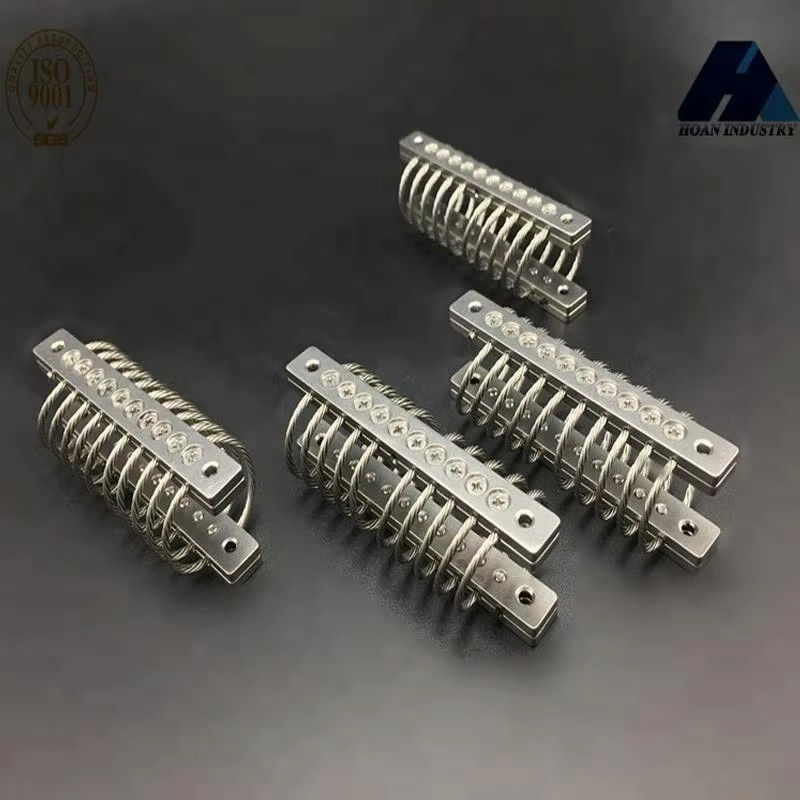

Name: JGX-0160A-2A Wire Rope Vibration Isolator with 2.0kg Max Static Load and 21.8mm Max Deflection for Long Service Life
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0160A-2A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-0160A-2A Wire Rope Vibration Isolator with 2.0kg Max Static Load and 21.8mm Max Deflection for Long Service Life

21.8mm Wire Rope Vibration Isolator

2.0kg Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0160A-2A

Request A Quote

Product Details

Length:

50mm

Shock Resistance:

30g/11ms

Port:

Xi'an

Certifications:

ISO 9001, RoHS

Max Static Load:

20-47N(2kg-4.8Kg)

Maximum Deflection:

0.5-1.5 Inches

Packing:

Standard Packing

Installation:

Wall Mounted

Characteristic:

Wide Working Frequency, Long Life Span

Maximum Load Capacity:

2.7kg

Weight:

0.2kg

Natural Frequency:

7Hz-15Hz

Temperature Range:

-40°F To 200°F

Core Components:

Wire Rope

Application:

Vibration Isolation For Mechanical Equipment

Highlight:

21.8mm Wire Rope Vibration Isolator

2.0kg Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments

Get Best Price

Video

Temperature Resistant GR4-18D-A Wire Rope Vibration Isolator for Smooth Industrial Operations

Get Best Price

Video

GR2-12D-A Cinema Shock Absorber Professional Grade Wire Rope Vibration Isolator for Smooth Filmmaking

Get Best Price

Video

JGX-0956A-75A Wire Rope Vibration Isolator For Aerospace And Military Equipment With Nonlinear Stiffness

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0160 Series

The wire rope vibration isolators of Xi'an Hoan Microwave Co., Ltd., with the advantages of three-dimensional vibration isolation, fatigue resistance, shock resistance, etc., have become the preferred products in the industrial vibration damping field. Compared with traditional rubber vibration isolators, wire rope vibration isolators have a longer service life and can operate stably in extreme temperatures (-60°C to 200°C) and corrosive environments.

The products adopt a multi-strand helical structure, which can effectively absorb both high-frequency and low-frequency vibrations, and are suitable for high-end fields such as aerospace, electronic equipment, and energy machinery. Hoan Microwave offers a variety of specifications to meet different load requirements, ensuring that the equipment operates more smoothly and quietly.

Product Performance

JGX-0160A-2A Wire Rope Vibration Isolator with 2.0kg Max Static Load and 21.8mm Max Deflection for Long Service Life 0

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0160A-4.8A	4.8	8.6	36	22
2	JGX-0160A-3.6A	3.6	9.7	25	16
3	JGX-0160A-3.2A	3.2	14.7	17	8.8
4	JGX-0160A-2.7A	2.7	17.8	12	6.1
5	JGX-0160A-2.2A	2.2	18.8	11	5.3
6	JGX-0160A-2A	2.0	21.8	7.9	3.9

JGX-0160A-2A Wire Rope Vibration Isolator with 2.0kg Max Static Load and 21.8mm Max Deflection for Long Service Life 1

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0160A-4.8A	3.4	11.7	20	11.4
2	JGX-0160A-3.6A	2.4	14.7	14	7.0
3	JGX-0160A-3.2A	2.4	20.8	11	4.7
4	JGX-0160A-2.7A	1.8	24.9	7.0	3.0
5	JGX-0160A-2.2A	1.8	26.9	6.1	2.6
6	JGX-0160A-2A	1.6	31.0	5.3	1.9

JGX-0160A-2A Wire Rope Vibration Isolator with 2.0kg Max Static Load and 21.8mm Max Deflection for Long Service Life 2

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0160A-4.8A	2.2	8.6	14	14
2	JGX-0160A-3.6A	1.8	10.7	8.8	8.8
3	JGX-0160A-3.2A	1.6	15.7	5.3	5.3
4	JGX-0160A-2.7A	1.3	18.8	3.9	3.9
5	JGX-0160A-2.2A	1.3	19.8	3.2	3.2
6	JGX-0160A-2A	1.1	22.8	2.3	2.3
