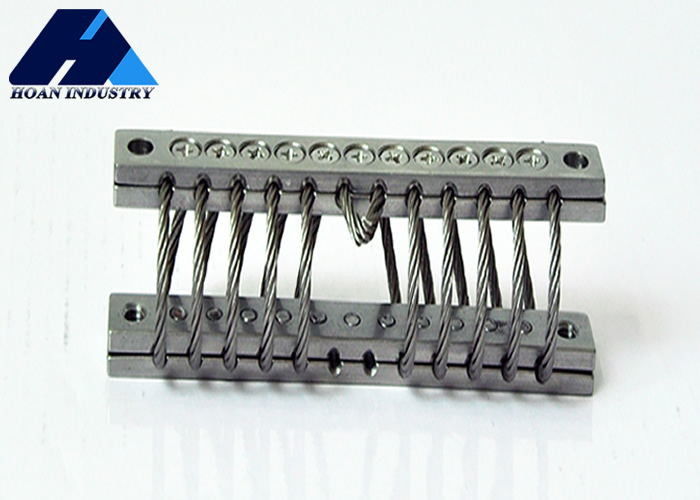

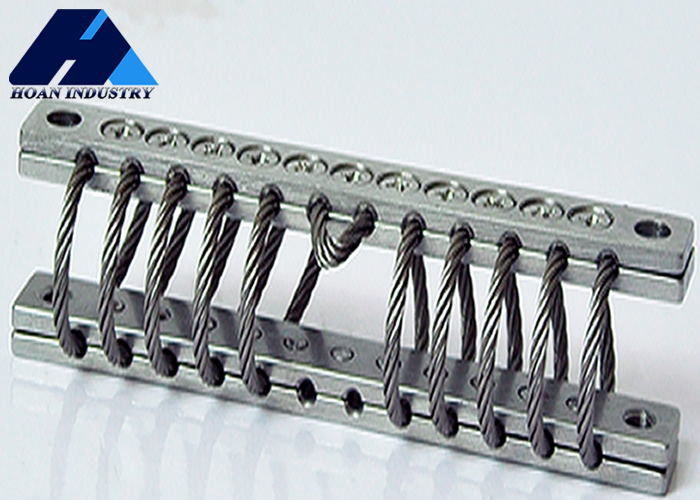

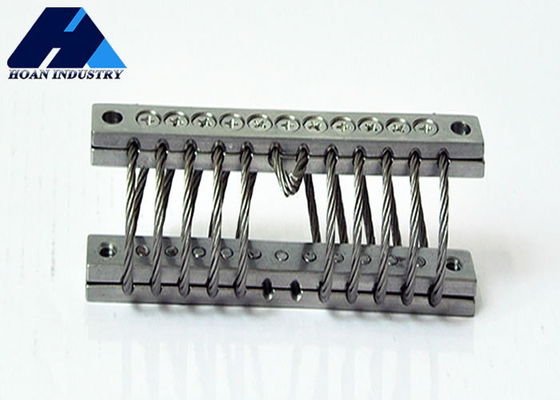

JGX-0240A-8.6A Wire Rope Vibration Isolator for Ship Vibration Reduction in Harsh Environments

Name: JGX-0240A-8.6A Wire Rope Vibration Isolator for Ship Vibration Reduction in Harsh Environments
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0240A-8.6A
Availability: InStock

Brand Name:	Hoan
Model Number:	JGX-0240A-8.6A
MOQ:	4 piences
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	4，pience，7

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Features:

Anchoring Holes; Oil Resis

Installation Type:

Horizontal/Vertical

Height:

50mm

Max Static Load:

20-47N(2kg-4.8Kg)

Applications:

Industrial Engine Mounts

Installation:

Wall Mounted

Damping Ratio:

0.5

Number Of Strands:

Maximum Deflection:

10mm

Accessories:

Net

Function:

Return Air

Construction:

Braided Wire Rope

High:

155mm

Mounting Holes:

Type:

SHOCK ABSORBER

Supply Ability:

4，pience，7

Highlight:

JGX-0240A-8.6A Wire Rope Vibration Isolator

Harsh Environments Wire Rope Vibration Isolator

Product Description

JGX-0240 Series

The wire rope vibration isolators of Xi'an Hoan Microwave Co., Ltd. have been successfully applied in multiple industries, such as equipment, ship vibration reduction, precision machine tools, laboratory instruments, etc.

In the field of rail transit, it can effectively reduce the vibration noise during train operation. In energy equipment, it can reduce the damage to the structure caused by mechanical vibration. For electronic precision instruments, it can improve the stability of the equipment and the measurement accuracy.

The products of Hoan Microwave have undergone strict tests and comply with standards such as ISO and GB, ensuring that they can still maintain excellent performance in various harsh environments, and providing customers with efficient and durable vibration isolation solutions.

Product Performance

JGX-0240A-8.6A Wire Rope Vibration Isolator for Ship Vibration Reduction in Harsh Environments 0

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0240A-8.6A	8.6	8.6	65	40
2	JGX-0240A-7.7A	7.7	10.7	51	30
3	JGX-0240A-6.3A	6.3	13.7	37	19
4	JGX-0240A-4.5A	4.5	17.8	23	11
5	JGX-0240A-4A	4.0	20.8	18	7.9
6	JGX-0240A-3.6A	3.6	22.9	16	7.0

JGX-0240A-8.6A Wire Rope Vibration Isolator for Ship Vibration Reduction in Harsh Environments 1

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0240A-8.6A	6.3	12.7	38	20
2	JGX-0240A-7.7A	5.4	15.7	28	14
3	JGX-0240A-6.3A	4.5	18.8	21	9.6
4	JGX-0240A-4.5A	3.7	25.9	13	5.6
5	JGX-0240A-4A	3.2	27.9	11	4.4
6	JGX-0240A-3.6A	2.8	32.0	9.6	3.5

JGX-0240A-8.6A Wire Rope Vibration Isolator for Ship Vibration Reduction in Harsh Environments 2

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0240A-8.6A	4.5	9.7	24	24
2	JGX-0240A-7.7A	4.1	11.7	18	18
3	JGX-0240A-6.3A	3.2	13.7	12	12
4	JGX-0240A-4.5A	2.8	18.8	7.0	7.0
5	JGX-0240A-4A	2.2	21.8	5.3	5.3
6	JGX-0240A-3.6A	1.8	23.9	4.4	4.4

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
