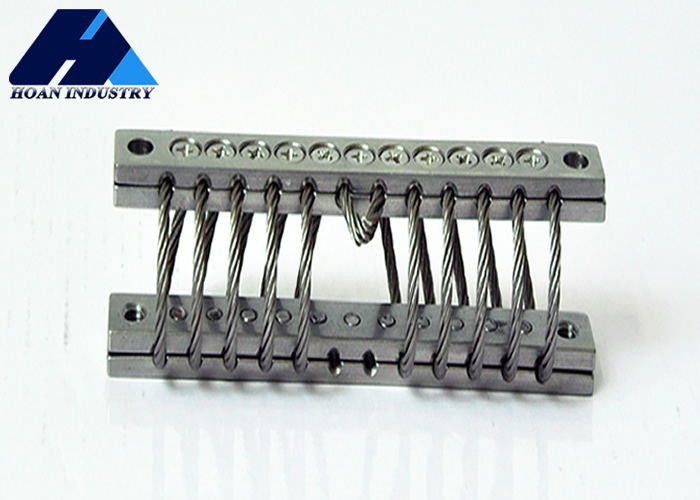

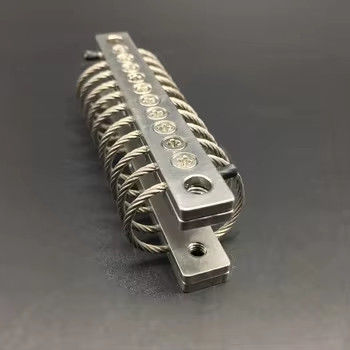

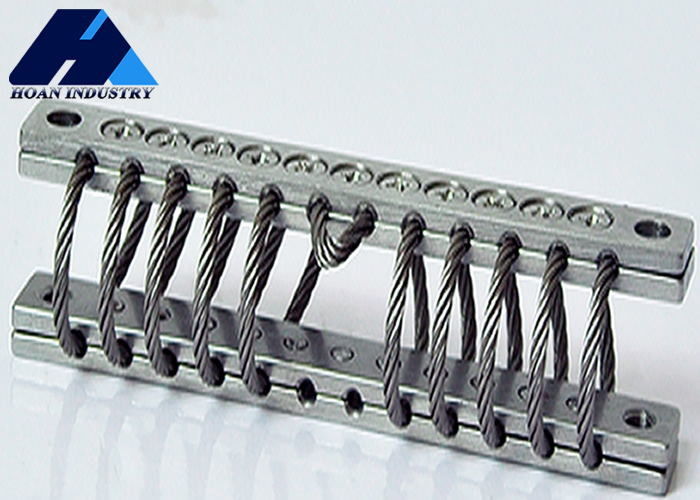

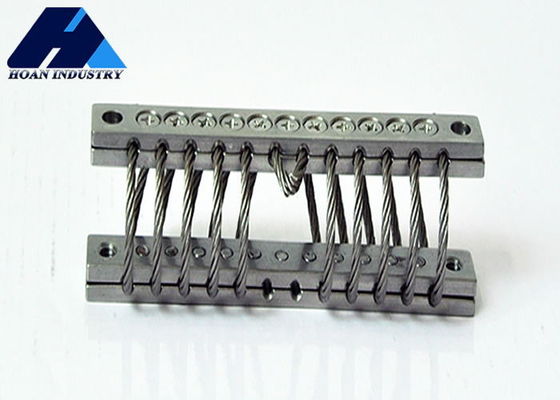

Name: JGX-0240A-7.7A Vibration Isolator With Computer Simulation Technology For Optimal Performance
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0240A-7.7A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-0240A-7.7A Vibration Isolator With Computer Simulation Technology For Optimal Performance

Computer Simulation Technology Vibration Isolator

Optimal Performance Vibration Isolator

JGX-0240A-7.7A Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0240A-7.7A

Request A Quote

Product Details

Applicable Industries:

Building Material Shops, Energy & Mining

Load Capacity:

Up To 5000 Lbs

Model:

GR SERIERS

Type:

Shock Absorber

Mounting Thread Size:

Usage:

Industrial Machinery

Function:

Damping

Temperature Range:

-40℃ To 80℃

Accessories:

Net

Isolation Efficiency:

Up To 90%

Mounting Orientation:

Vertical

Feature:

Vibration Isolation

Vibration Isolation Type:

Passive

Shock Absorption:

Excellent

Isolation Frequency:

5Hz

Highlight:

Computer Simulation Technology Vibration Isolator

Optimal Performance Vibration Isolator

JGX-0240A-7.7A Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments

Get Best Price

Video

Temperature Resistant GR4-18D-A Wire Rope Vibration Isolator for Smooth Industrial Operations

Get Best Price

Video

GR2-12D-A Cinema Shock Absorber Professional Grade Wire Rope Vibration Isolator for Smooth Filmmaking

Get Best Price

Video

JGX-0956A-75A Wire Rope Vibration Isolator For Aerospace And Military Equipment With Nonlinear Stiffness

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0240 Series

Xi'an Hoan Microwave Co., Ltd. continuously optimizes the design and manufacturing process of wire rope vibration isolators, making them perform more outstandingly in aspects such as low-frequency vibration isolation, shock resistance, and corrosion resistance. The company uses computer simulation technology to optimize the structure, ensuring that the products can provide the best vibration damping effect under different frequencies and loads.

In addition, the wire rope vibration isolators of Hoan Microwave feature maintenance-free operation and a long service life, which can significantly reduce the usage cost for customers. Whether it is military equipment, ship machinery, or precision instruments, Hoan Microwave can provide high-performance and high-reliability vibration isolation solutions.

Product Performance

JGX-0240A-7.7A Vibration Isolator With Computer Simulation Technology For Optimal Performance 0

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0240A-8.6A	8.6	8.6	65	40
2	JGX-0240A-7.7A	7.7	10.7	51	30
3	JGX-0240A-6.3A	6.3	13.7	37	19
4	JGX-0240A-4.5A	4.5	17.8	23	11
5	JGX-0240A-4A	4.0	20.8	18	7.9
6	JGX-0240A-3.6A	3.6	22.9	16	7.0

JGX-0240A-7.7A Vibration Isolator With Computer Simulation Technology For Optimal Performance 1

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0240A-8.6A	6.3	12.7	38	20
2	JGX-0240A-7.7A	5.4	15.7	28	14
3	JGX-0240A-6.3A	4.5	18.8	21	9.6
4	JGX-0240A-4.5A	3.7	25.9	13	5.6
5	JGX-0240A-4A	3.2	27.9	11	4.4
6	JGX-0240A-3.6A	2.8	32.0	9.6	3.5

JGX-0240A-7.7A Vibration Isolator With Computer Simulation Technology For Optimal Performance 2

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0240A-8.6A	4.5	9.7	24	24
2	JGX-0240A-7.7A	4.1	11.7	18	18
3	JGX-0240A-6.3A	3.2	13.7	12	12
4	JGX-0240A-4.5A	2.8	18.8	7.0	7.0
5	JGX-0240A-4A	2.2	21.8	5.3	5.3
6	JGX-0240A-3.6A	1.8	23.9	4.4	4.4

FAQ

1.Q:Are you a manufacturer or a trading company?

A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process. This allows us to offer competitive pricing and customized solutions directly to our clients.

2.Q:Can you customize products for us?
A:Yes, we have the capability to customize our products to meet your specific needs. Please contact us with your requirements, and our team will work with you to create a tailored solution that fits your preferences.

3.Q:What is the lead time?

A:Sample will usually take 2 to 5 days.For the mass production,it will estimated take 7 to 20 day, Faster delivery when our factory has stock.

4.Q:Can I get some samples before place order and how long for a sample?
A:Yes, sample order is accepted

5.Q:How is your shipping?
A:1)worldwide shipping service available
2)please contact before order as shipping cost varies time to time.

6.Q:Do you offer discounts for bulk orders?
A:Yes, we offer discounts for bulk orders. The discount percentage may vary depending on the order quantity.
