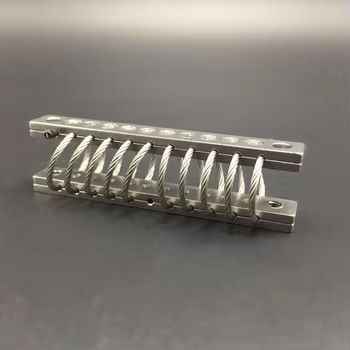

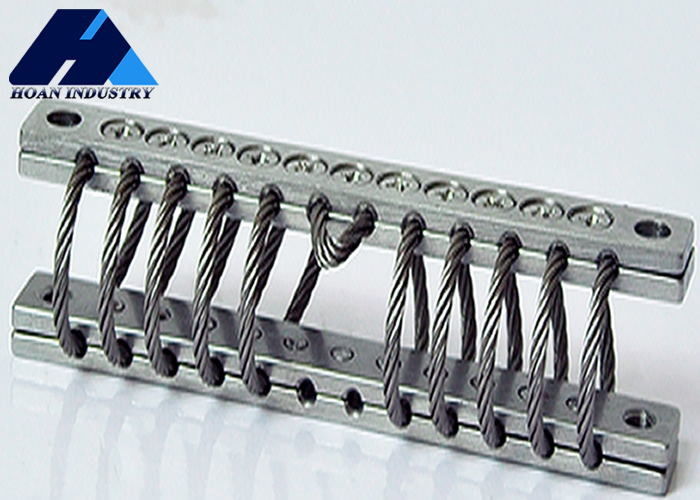

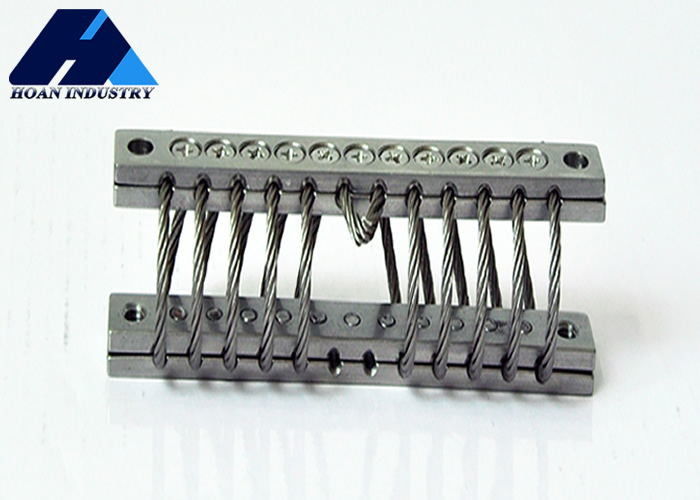

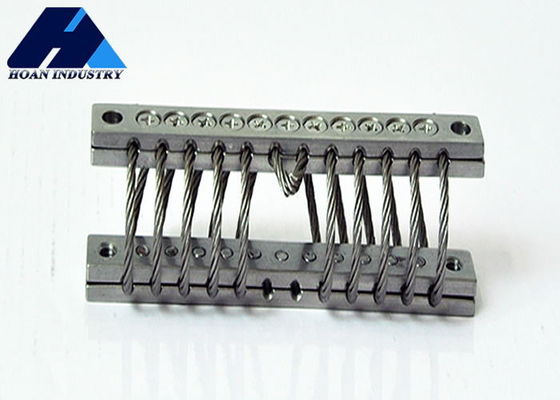

Name: JGX-0240A-6.3A Wire Rope Vibration Isolator Easy Installation and Maintenance Free
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0240A-6.3
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-0240A-6.3A Wire Rope Vibration Isolator Easy Installation and Maintenance Free

Easy Installation Wire Rope Vibration Isolator

Maintenance Free Wire Rope Vibration Isolator

JGX-0240A-6.3A Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0240A-6.3

Request A Quote

Product Details

Features:

Anchoring Holes; Oil Resis

Mounting Orientation:

Vertical

Size:

Custom Size

Warranty:

1 Year

Packing:

Standard Packing

Load Capacity:

500-5000 Lbs

Length:

2-10 Inches

Mounting Thread Size:

Marketing Type:

Hot Product 2019

Design Style:

Industrial

Damping Ratio:

0.7

Wire Rope Length:

79.5mm

Function:

Return Air

Wire Rope Construction:

7x19

Corrosion Resistance:

Yes

Highlight:

Easy Installation Wire Rope Vibration Isolator

Maintenance Free Wire Rope Vibration Isolator

JGX-0240A-6.3A Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

Stable and Durable Wire Rope Vibration Isolator for Aerial Photography with GR3-11D-A Precision Spring Shock Absorber

Get Best Price

Video

JGX-0400A-31.5A Wire Rope Vibration Isolator Vertical Mounting for Protecting Your Equipment from Vibration and Shock

Get Best Price

Video

Stainless Steel Wire Rope Vibration Isolator For Aerial And Communication Water-Proof And Durability JGX-0400-31.5A

Get Best Price

JGX-0648D-56A Meticulously Designed Wire Rope Vibration Isolator for Optimal Performance in Various Devices

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0240 Series

Compared with traditional rubber vibration isolators and spring vibration isolators, the wire rope vibration isolators of Xi'an Hoan Microwave Co., Ltd. have a longer service life and stronger environmental adaptability. Rubber vibration isolators are prone to aging, while wire rope vibration isolators are resistant to high and low temperatures and corrosion, making them suitable for harsh environments such as ships, the chemical industry, and the military industry. Spring vibration isolators are prone to resonance, whereas the multi-strand helical structure of wire rope vibration isolators can effectively suppress resonance and provide a more stable vibration damping effect. The products of Hoan Microwave are easy to install and maintenance-free, making them an upgraded choice in the field of industrial vibration damping.

Product Performance

JGX-0240A-6.3A Wire Rope Vibration Isolator Easy Installation and Maintenance Free 0

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0240A-8.6A	8.6	8.6	65	40
2	JGX-0240A-7.7A	7.7	10.7	51	30
3	JGX-0240A-6.3A	6.3	13.7	37	19
4	JGX-0240A-4.5A	4.5	17.8	23	11
5	JGX-0240A-4A	4.0	20.8	18	7.9
6	JGX-0240A-3.6A	3.6	22.9	16	7.0

JGX-0240A-6.3A Wire Rope Vibration Isolator Easy Installation and Maintenance Free 1

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0240A-8.6A	6.3	12.7	38	20
2	JGX-0240A-7.7A	5.4	15.7	28	14
3	JGX-0240A-6.3A	4.5	18.8	21	9.6
4	JGX-0240A-4.5A	3.7	25.9	13	5.6
5	JGX-0240A-4A	3.2	27.9	11	4.4
6	JGX-0240A-3.6A	2.8	32.0	9.6	3.5

JGX-0240A-6.3A Wire Rope Vibration Isolator Easy Installation and Maintenance Free 2

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KN/m)
1	JGX-0240A-8.6A	4.5	9.7	24	24
2	JGX-0240A-7.7A	4.1	11.7	18	18
3	JGX-0240A-6.3A	3.2	13.7	12	12
4	JGX-0240A-4.5A	2.8	18.8	7.0	7.0
5	JGX-0240A-4A	2.2	21.8	5.3	5.3
6	JGX-0240A-3.6A	1.8	23.9	4.4	4.4

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
