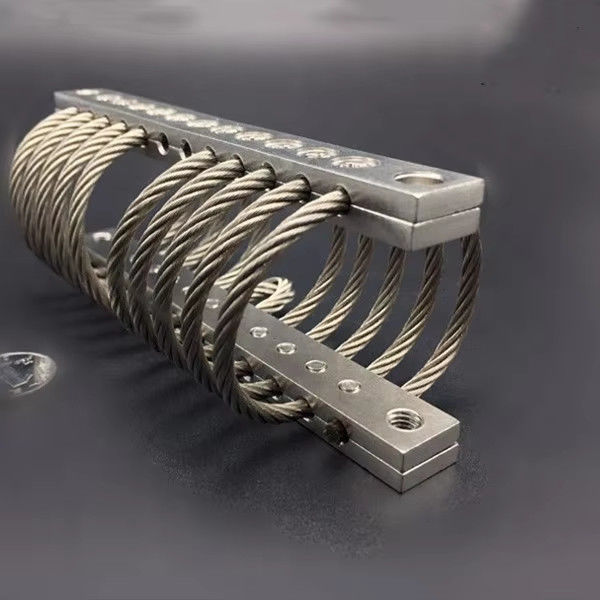

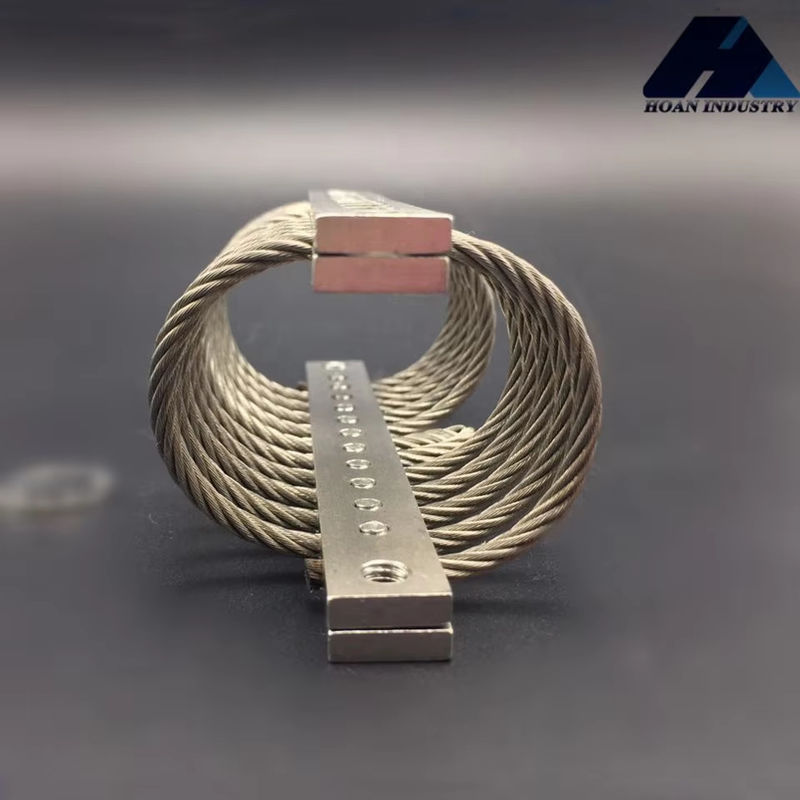

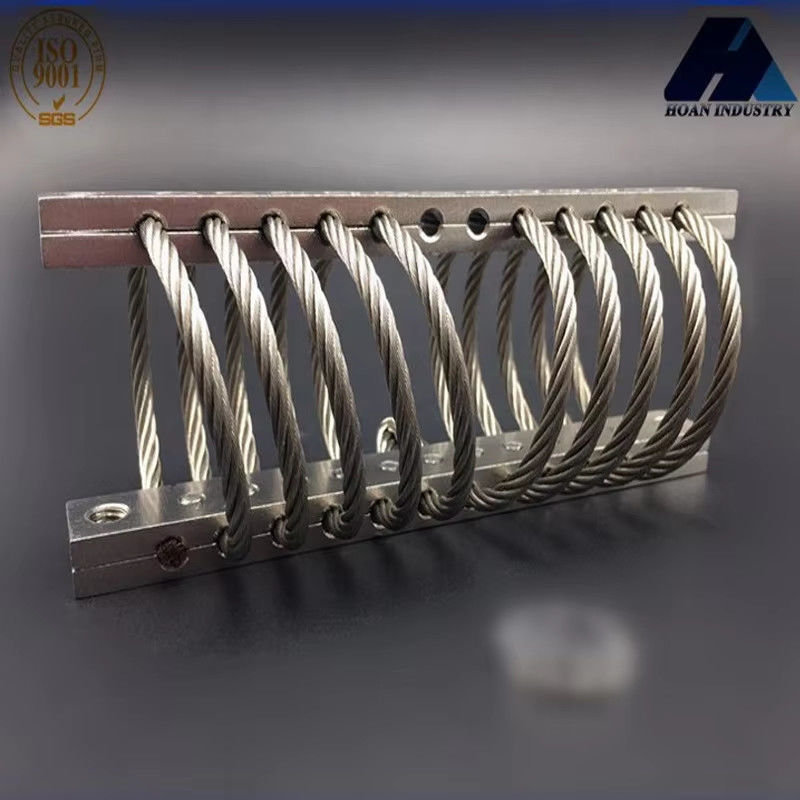

Name: JGX-0240A-4A Flexible and Modular Design Wire Rope Vibration Isolator for Multi-Directional Vibration Isolation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0240A-4A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-0240A-4A Flexible and Modular Design Wire Rope Vibration Isolator for Multi-Directional Vibration Isolation

Multi Directional Vibration Isolator

Modular Design Wire Rope Vibration Isolator

Flexible Wire Rope Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0240A-4A

Request A Quote

Product Details

Features:

Anchoring Holes; Oil Resis

Strand Construction:

7x19

Vibration Frequency Range:

10Hz To 100Hz

Drawing Format:

DWG And PDF

Design Style:

Industrial

Applications:

Small Devices

Mounting Holes:

Size:

To Machine

Working Temperature:

-55 ~ +120

Diameter:

1 Inch

Characteristic:

Wide Working Frequency, Long Life Span

Load Range:

5，6KG

Compression Ratio:

1.2:1

Shock Absorption:

Yes

Highlight:

Multi Directional Vibration Isolator

Modular Design Wire Rope Vibration Isolator

Flexible Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

Stable and Durable Wire Rope Vibration Isolator for Aerial Photography with GR3-11D-A Precision Spring Shock Absorber

Get Best Price

Video

JGX-0400A-31.5A Wire Rope Vibration Isolator Vertical Mounting for Protecting Your Equipment from Vibration and Shock

Get Best Price

Video

Stainless Steel Wire Rope Vibration Isolator For Aerial And Communication Water-Proof And Durability JGX-0400-31.5A

Get Best Price

JGX-0648D-56A Meticulously Designed Wire Rope Vibration Isolator for Optimal Performance in Various Devices

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0240 Series

In the field of vibration and shock control, the wire rope vibration isolators of Xi'an Hoan Microwave Co., Ltd., with their military-grade quality and excellent performance, have become the "invisible guardians" of high-end equipment. This product is precisely wound with special stainless steel wire ropes. Through a unique nonlinear stiffness design, it can effectively absorb high-frequency vibrations and buffer strong impacts, providing all-round protection for precision instruments, aerospace equipment, and high-end industrial equipment.

Compared with traditional rubber or spring vibration isolators, the wire rope vibration isolators of Hoan Microwave have the characteristics of corrosion resistance, aging resistance, and strong environmental adaptability. They can operate stably in extreme environments ranging from -60°C to 200°C. Their modular design supports multi-directional vibration isolation, and they are flexible to install, significantly reducing the loss of equipment accuracy or shortening of its lifespan caused by vibrations. Whether it is for satellite payloads, shipborne radars, or medical CT scanners, the vibration isolation solutions of Hoan Microwave can bring customers a "silent" level of safety assurance.

Static Load Curve

JGX-0240A-4A Flexible and Modular Design Wire Rope Vibration Isolator for Multi-Directional Vibration Isolation 0

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KNm)
1	JGX-0240A-8.6A	8.6	8.6	65	40
2	JGX-0240A-7.7A	7.7	10.7	51	30
3	JGX-0240A-6.3A	6.3	13.7	37	19
4	JGX-0240A-4.5A	4.5	17.8	23	11
5	JGX-0240A-4A	4.0	20.8	18	7.9
6	JGX-0240A-3.6A	3.6	22.9	16	7.0

JGX-0240A-4A Flexible and Modular Design Wire Rope Vibration Isolator for Multi-Directional Vibration Isolation 1

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KNm)
1	JGX-0240A-8.6A	6.3	12.7	38	20
2	JGX-0240A-7.7A	5.4	15.7	28	14
3	JGX-0240A-6.3A	4.5	18.8	21	9.6
4	JGX-0240A-4.5A	3.7	25.9	13	5.6
5	JGX-0240A-4A	3.2	27.9	11	4.4
6	JGX-0240A-3.6A	2.8	32.0	9.6	3.5

JGX-0240A-4A Flexible and Modular Design Wire Rope Vibration Isolator for Multi-Directional Vibration Isolation 2

No	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	KS(Shock) (KNm)
1	JGX-0240A-8.6A	4.5	9.7	24	24
2	JGX-0240A-7.7A	4.1	11.7	18	18
3	JGX-0240A-6.3A	3.2	13.7	12	12
4	JGX-0240A-4.5A	2.8	18.8	7.0	7.0
5	JGX-0240A-4A	2.2	21.8	5.3	5.3
6	JGX-0240A-3.6A	1.8	23.9	4.4	4.4

Dimension Parameter Table

JGX-0240A-4A Flexible and Modular Design Wire Rope Vibration Isolator for Multi-Directional Vibration Isolation 3

Model	Height(mm) ±1.5	Width (mm)	Weight (Approx)(kg)	Mounting Optiongs	Thru Hole (mm)	Thread (mm)	C'sink (°)
JGX-0240A-8.6A	23	28	0.102	B,D,E	Ø5.6±0.13	M5×0.8	90
JGX-0240A-7.7A	25	30	0.119	A,B,C,D,E,S
JGX-0240A-6.3A	28	33	0.119
JGX-0240A-4.5A	33	38	0.119
JGX-0240A-4A	36	41	0.119
JGX-0240A-3.6A	38	43	0.152

JGX-0240A-4A Flexible and Modular Design Wire Rope Vibration Isolator for Multi-Directional Vibration Isolation 4
