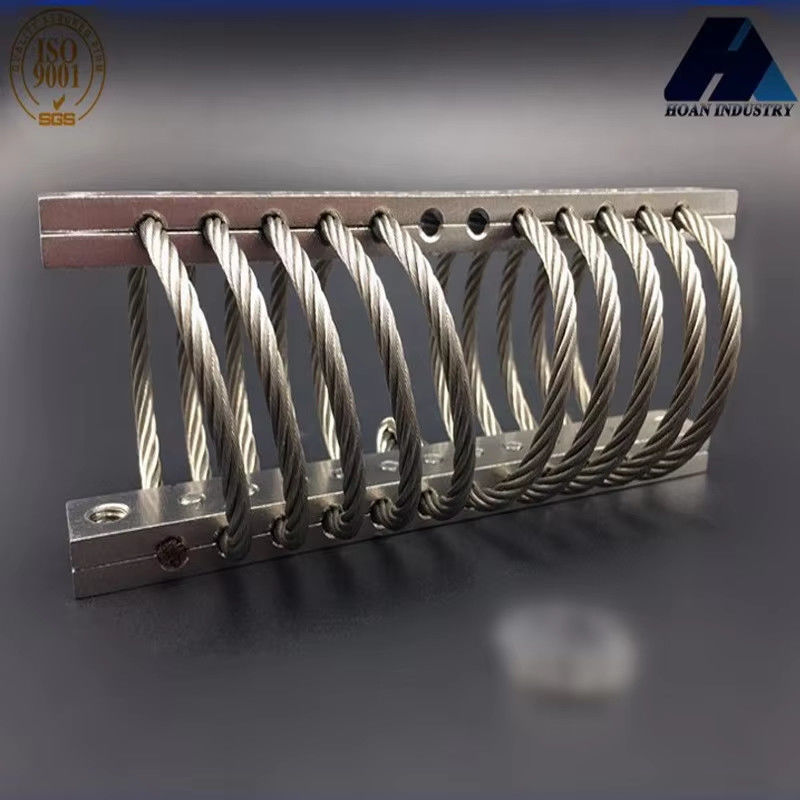

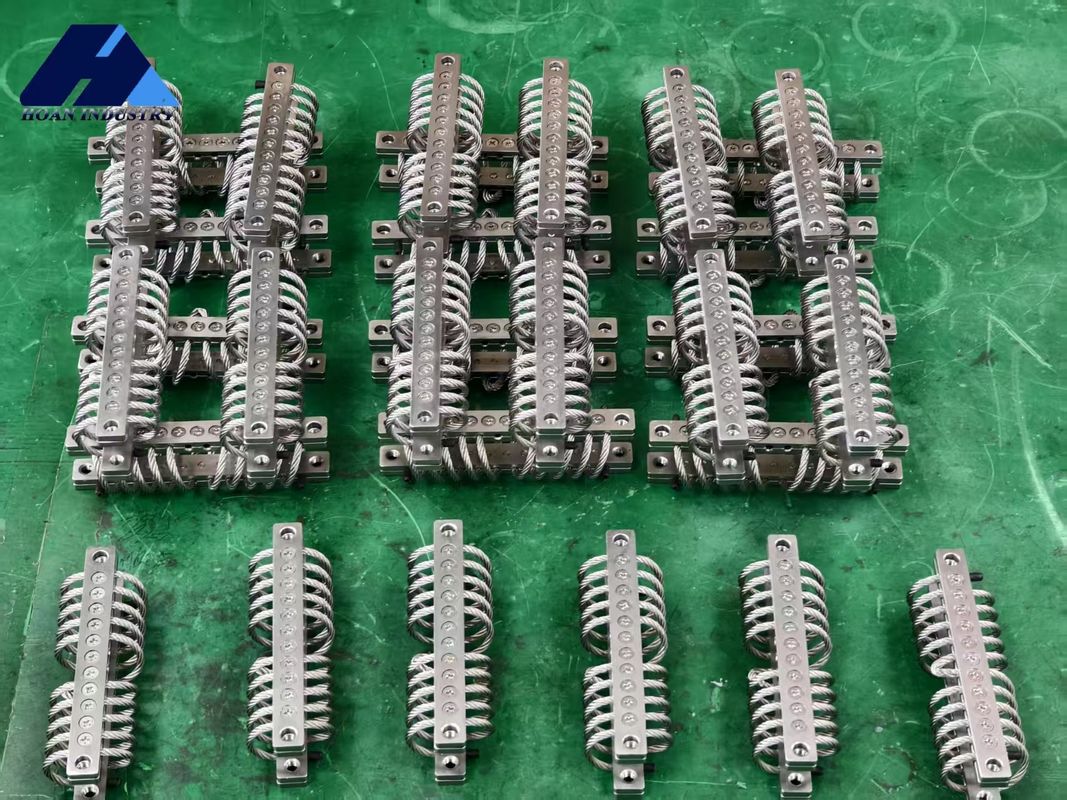

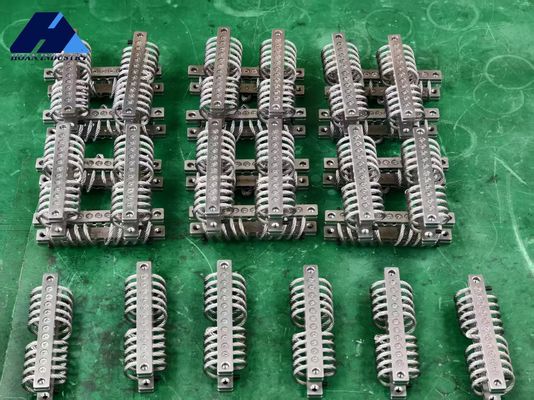

Wire Rope Construction 7x19 JGX-0240A-3.6A Vibration Isolators For Precision Manufacturing In Energy Mining

JGX-0240A Series

The wire rope vibration isolators of Xi'an Hoan Microwave Co., Ltd. have broken through the industry bottleneck with disruptive technologies and become a benchmark product in the field of vibration control. Their core advantage lies in the combination of aerospace-grade materials science and mechanical simulation technology. Through the spiral composite structure of multiple strands of wire ropes, they achieve the dual vibration isolation effects of low-frequency high damping and high-frequency wide frequency band, with an energy absorption efficiency increased by more than 40%.

Aiming at customers' pain points, Hoan Microwave provides customized services – from load analysis to dynamic characteristic matching, ensuring that each vibration isolator perfectly avoids the resonance frequency of the equipment. For example, after a certain type of electronic countermeasure equipment adopted its vibration isolators, the vibration transfer rate was reduced to 0.05, and its reliability has passed the stringent certification of GJB150-2009. In addition, the characteristics of the product, such as no need for maintenance and a service life of more than 20 years, significantly reduce the comprehensive costs for users.

Choosing Hoan Microwave is not just about choosing a product, but also about injecting an "anti-vibration gene" into the equipment with cutting-edge technologies. In fields such as precision manufacturing, new energy, and national defense science and technology, Hong'an Microwave is using innovation to safeguard every micron-level stability.

Static Load Curve

Dimension Parameter Table

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
No creep or ageing.
High internal damping.
Very wide temperature range.
Wide variety of possible fittings.
Rapid and economical prototyping.
Extremely rugged construction and long lifespan.
Excellent combined shock and vibration isolation.
Not affected by chemical agents, seawater, ozone, UV rays
