JGX-0320A-20A Vibration Isolation and Buffering with Hoan's Wire Rope Vibration Isolator for Stable Equipment Operation

Buffering Wire Rope Vibration Isolator

Hoan's Wire Rope Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0320A-20A

Request A Quote

Product Details

Flexibility:

High

Overall Width:

50mm

Resonance Frequency:

30 Hz

Isolator Type:

Friction Damping Isolators

Strand Construction:

7 X 19

Function:

Anti Shock

Characteristic:

Wide Working Frequency, Long Li

Warranty:

1 Year

Load Capacity:

500kg

Vibration Frequency:

10-100Hz

Applications:

Marine And Industrial Engine Mounts

After Warranty Service:

Online Support

Shape:

Cylindrical

Mounting Type:

Threaded

Highlight:

Buffering Wire Rope Vibration Isolator

Hoan's Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

JGX-0320A-12A Automatic Damping Adjustment Wire Rope Vibration Isolator for Consistent Vibration Control

Get Best Price

Video

JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics

Get Best Price

JGX-0320A-14.5A Vibration Isolator Effective Damping of 0.5 for Stable Working Environment and Accurate Measurement Data

Get Best Price

Video

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0320 Series

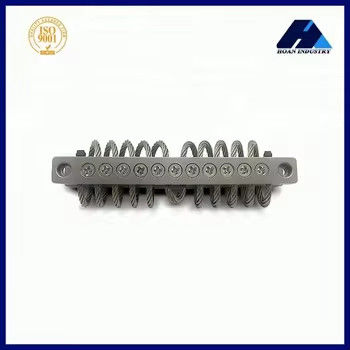

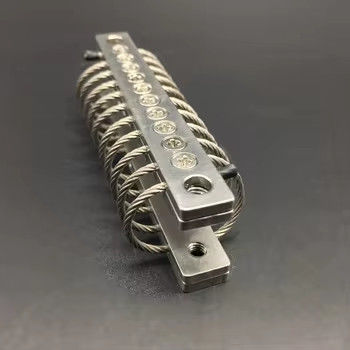

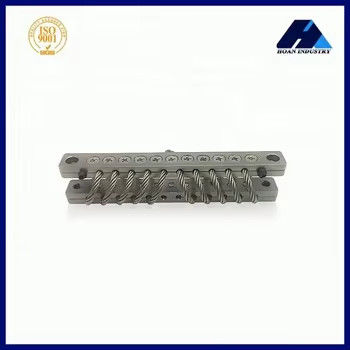

Xi'an Hoan Microwave Co., Ltd. has profound attainments in the field of vibration isolators, and the wire rope vibration isolators produced by it possess unique advantages. This kind of vibration isolator uses a wire rope formed by winding multiple strands of steel wires in a specific direction as the elastic element, which is made into a spiral shape and fixed between two metal plates. It has nonlinear characteristics and dry friction damping, and the energy dissipation comes from the friction, extrusion, and slippage between the steel wires.

The stiffness and damping of Hoan's wire rope vibration isolators are affected by factors such as the diameter of the wire rope, the number of strands, the number of turns, and the winding method. In complex environments, such as high and low temperatures, chemical pollution, etc., it can still maintain stable performance, providing reliable vibration isolation and buffering for equipment. It is widely used in many fields such as military electronic equipment and aviation communication, helping the equipment in various industries to operate stably.

Product size parameters

JGX-0320A-20A Vibration Isolation and Buffering with Hoan's Wire Rope Vibration Isolator for Stable Equipment Operation 0

Model

Height(mm)

±1.5

Width(mm)

Weight(Approx)

Mounting Options

Thru Hole

(mm)

Thread

(mm)

C'sink(℃)

JGX-0320A-20A

0.228

B,D,E

Ø6.9±0.13

M6x1.0

JGX-0320A-20A Vibration Isolation and Buffering with Hoan's Wire Rope Vibration Isolator for Stable Equipment Operation 1

Static Load Curve

JGX-0320A-20A Vibration Isolation and Buffering with Hoan's Wire Rope Vibration Isolator for Stable Equipment Operation 2

No.	Model	Max Deflection (mm)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0320A-22A	22	9.7	154	91
2	JGX-0320A-20A	20	11.7	124	68
3	JGX-0320A-17A	17	13.7	95	51
4	JGX-0320A-16A	16	16.8	78	39
5	JGX-0320A-14.5A	14.5	18.8	67	32
6	JGX-0320A-13.5A	13.5	21.8	57	25
7	JGX-0320A-12A	12	23.9	46	21

JGX-0320A-20A Vibration Isolation and Buffering with Hoan's Wire Rope Vibration Isolator for Stable Equipment Operation 3

No.	Model	Max Deflection (mm)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0320A-22A	15.2	13.7	86	46
2	JGX-0320A-20A	14.1	17.3	70	35
3	JGX-0320A-17A	12.0	19.8	53	25
4	JGX-0320A-16A	11.3	23.9	44	20
5	JGX-0320A-14.5A	10.4	26.9	39	16
6	JGX-0320A-13.5A	9.6	31	32	12
7	JGX-0320A-12A	8.6	34	26	11

JGX-0320A-20A Vibration Isolation and Buffering with Hoan's Wire Rope Vibration Isolator for Stable Equipment Operation 4

No.	Model	Max Deflection (mm)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0320A-22A	11.3	9.7	56	56
2	JGX-0320A-20A	10.0	11.7	43	43
3	JGX-0320A-17A	9.5	14.7	31	31
4	JGX-0320A-16A	8.7	17.8	25	25
5	JGX-0320A-14.5A	8.2	19.8	19	19
6	JGX-0320A-13.5A	7.2	22.9	16	16
7	JGX-0320A-12A	6.3	25.9	12	12

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
