Name: JGX-0320A-22A Stable Performance Wire Rope Vibration Isolator For High-Frequency Vibration Environments
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0320A-22A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-0320A-22A Stable Performance Wire Rope Vibration Isolator For High-Frequency Vibration Environments

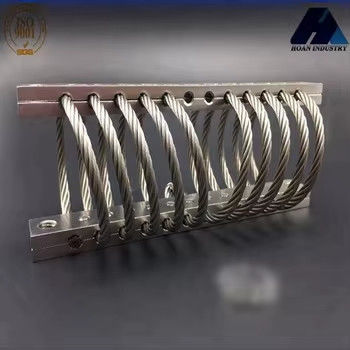

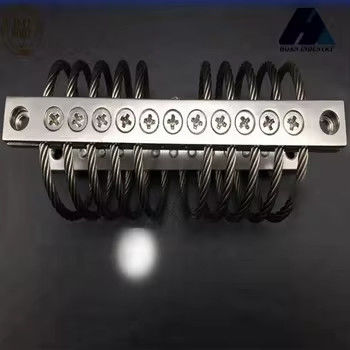

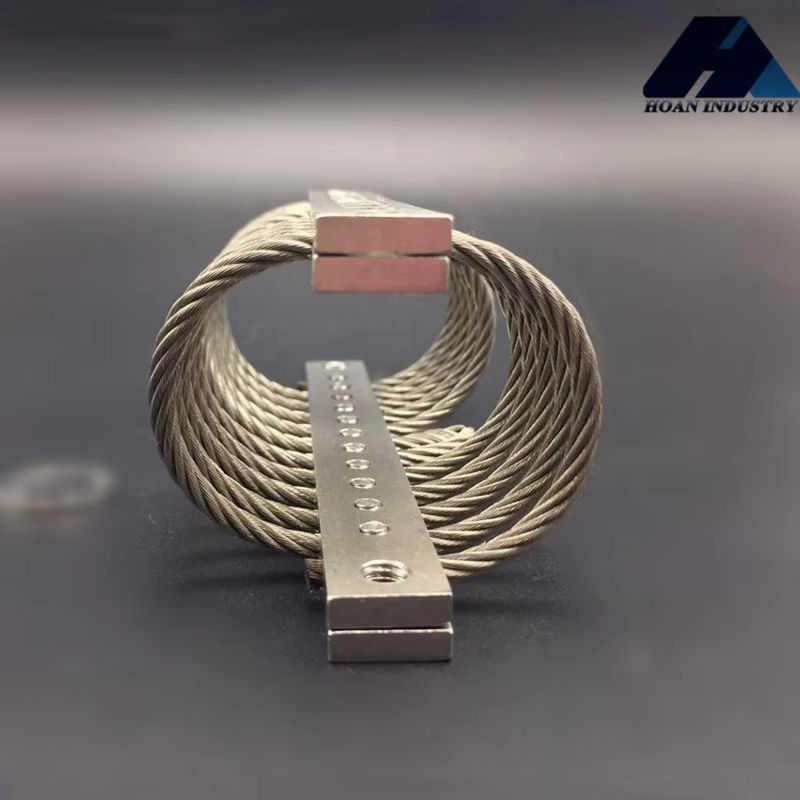

JGX-0320A-22A Wire Rope Vibration Isolator

Stable Performance Wire Rope Vibration Isolator

High Frequency Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0320A-22A

Request A Quote

Product Details

Usage:

Industrial Machinery

Feature:

Durable

Certifications:

ISO 9001:2015

Length:

100mm

Temperature Range:

-40℃ To 80℃

Installation Method:

Bolted

Model:

JGX-1278D-370B

Mounting Orientation:

Vertical

Warranty:

1 Year

Product Keywords:

Wire Vibration Damper

Application:

Machine Parts And Communic

Wire Rope Length:

79.5mm

Vibration Isolation Frequency:

5-20 Hz

Type:

HVAC Systems

Vibration Frequency Range:

10Hz To 100Hz

Highlight:

JGX-0320A-22A Wire Rope Vibration Isolator

Stable Performance Wire Rope Vibration Isolator

High Frequency Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

JGX-0320A-12A Automatic Damping Adjustment Wire Rope Vibration Isolator for Consistent Vibration Control

Get Best Price

Video

JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics

Get Best Price

JGX-0320A-14.5A Vibration Isolator Effective Damping of 0.5 for Stable Working Environment and Accurate Measurement Data

Get Best Price

Video

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0320 Series

This series of vibration isolators boasts excellent environmental adaptability: it maintains stable performance within the temperature range of -40°C to +120°C, is resistant to salt spray and oil stains, and is suitable for outdoor and industrial scenarios. Its characteristic of no metal fatigue ensures that it can still retain its elasticity after long-term use, and it requires no lubrication or maintenance. Compared with rubber vibration isolators, the service life of JGX-0320 is more than three times longer, and it is especially suitable for high-frequency vibration environments. Xi'an Hoan Microwave has ensured that the product can operate reliably under extreme conditions through rigorous fatigue tests (with more than 1 million cycles) and load experiments.

Product size parameters

JGX-0320A-22A Stable Performance Wire Rope Vibration Isolator For High-Frequency Vibration Environments 0

Model

Height(mm)

±1.5

Width(mm)

Weight(Approx)

Mounting Options

Thru Hole

(mm)

Thread

(mm)

C'sink(℃)

JGX-0320A-22A

0.228

B,D,E

Ø6.9±0.13

M6x1.0

JGX-0320A-22A Stable Performance Wire Rope Vibration Isolator For High-Frequency Vibration Environments 1

Static Load Curve

JGX-0320A-22A Stable Performance Wire Rope Vibration Isolator For High-Frequency Vibration Environments 2

No.	Model	Max Deflection (mm)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0320A-22A	22	9.7	154	91
2	JGX-0320A-20A	20	11.7	124	68
3	JGX-0320A-17A	17	13.7	95	51
4	JGX-0320A-16A	16	16.8	78	39
5	JGX-0320A-14.5A	14.5	18.8	67	32
6	JGX-0320A-13.5A	13.5	21.8	57	25
7	JGX-0320A-12A	12	23.9	46	21

JGX-0320A-22A Stable Performance Wire Rope Vibration Isolator For High-Frequency Vibration Environments 3

No.	Model	Max Deflection (mm)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0320A-22A	15.2	13.7	86	46
2	JGX-0320A-20A	14.1	17.3	70	35
3	JGX-0320A-17A	12.0	19.8	53	25
4	JGX-0320A-16A	11.3	23.9	44	20
5	JGX-0320A-14.5A	10.4	26.9	39	16
6	JGX-0320A-13.5A	9.6	31	32	12
7	JGX-0320A-12A	8.6	34	26	11

JGX-0320A-22A Stable Performance Wire Rope Vibration Isolator For High-Frequency Vibration Environments 4

No.	Model	Max Deflection (mm)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0320A-22A	11.3	9.7	56	56
2	JGX-0320A-20A	10.0	11.7	43	43
3	JGX-0320A-17A	9.5	14.7	31	31
4	JGX-0320A-16A	8.7	17.8	25	25
5	JGX-0320A-14.5A	8.2	19.8	19	19
6	JGX-0320A-13.5A	7.2	22.9	16	16
7	JGX-0320A-12A	6.3	25.9	12	12

* Material of Mounting Bars *
Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *
White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;

Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
