Corrosion And Impact Resistant JGX-0400A-37A Wire Rope Vibration Isolator For Vehicle Mounted And Airborne Equipment

Vehicle Mounted Wire Rope Vibration Isolator

Corrosion Resistant Wire Rope Vibration Isolator

Impact Resistant Wire Rope Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JGX-0400A-37A

Request A Quote

Product Details

Mounting Holes:

M12

Material:

Stainless Steel

Load Capacity:

High

Isolation Efficiency:

Up To 90%

Strand Construction:

7x7 Or 7x19

Working Temperature:

-55 ~ +120

Wire Rope Material:

Galvanized Steel

Color:

Black

Relative Product:

Backdraft Damper

Product Load Capacity:

Customizable

Shock Rsistance:

30g/11ms

Product Keywords:

Wire Vibration Damper

Highlight:

Vehicle Mounted Wire Rope Vibration Isolator

Corrosion Resistant Wire Rope Vibration Isolator

Impact Resistant Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

JGX-0320A-12A Automatic Damping Adjustment Wire Rope Vibration Isolator for Consistent Vibration Control

Get Best Price

Video

JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics

Get Best Price

JGX-0320A-14.5A Vibration Isolator Effective Damping of 0.5 for Stable Working Environment and Accurate Measurement Data

Get Best Price

Video

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0400 Series

The JGX - 0400 series of wire rope isolators is an axisymmetric isolator.It can bear a static load of 17.5 - 37 kg. This series has the properties of corrosion resistance, impact resistance, and high and low - temperature resistance. It is suitable for the vibration isolation and buffering of airborne, vehicle - mounted, and shipborne electronic and mechanical equipment, computers, and instruments, as well as the safety protection of missile and satellite transportation, navigation, and launching systems.

The working principle of the JGX - 0400 series is that when the excitation and impact amplitudes are large, internal friction occurs between the strands of the wire rope, consuming energy and attenuating the vibration and impact strength; when the vibration amplitude is small, the wire rope strands are twisted together and do not slip relatively, showing good linear elasticity and maintaining system stability. In short, the JGX - 0400 series is suitable for complex and changeable vibration and shock conditions and can effectively avoid strong resonance and impact.

Mounting Options

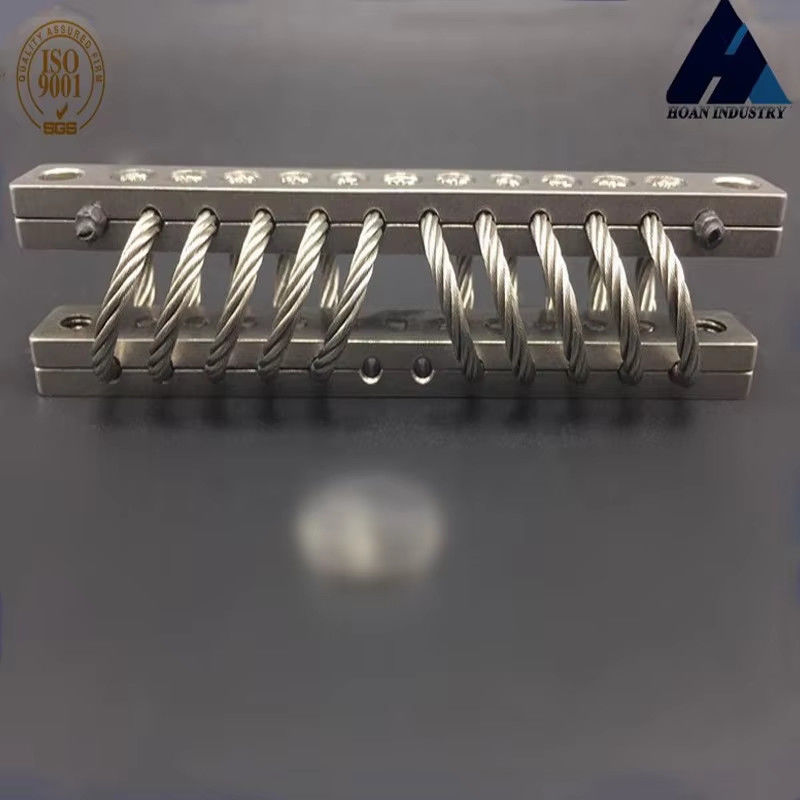

Corrosion And Impact Resistant JGX-0400A-37A Wire Rope Vibration Isolator For Vehicle Mounted And Airborne Equipment 0

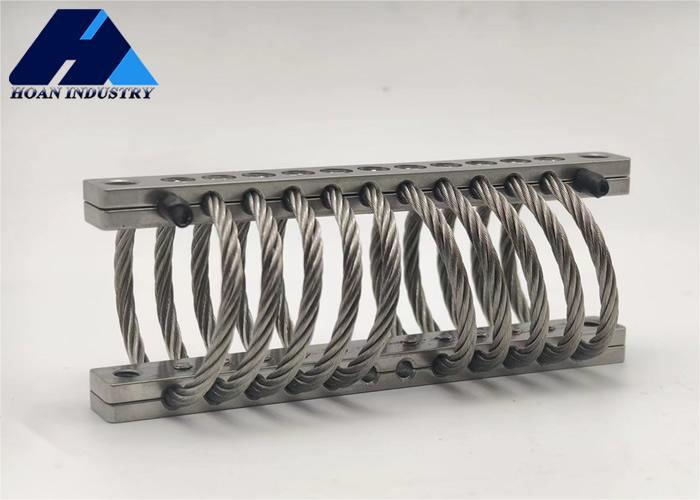

Corrosion And Impact Resistant JGX-0400A-37A Wire Rope Vibration Isolator For Vehicle Mounted And Airborne Equipment 1

SIZE PARAMETER:

Model	“H”±3.30	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	C'sink(°)
JGX-0400D-37A	30	41	0.24	B,D,E	∅6.9±0.13	M6×1.0	90
JGX-0400D-31.5A	33	43	0.24	A,B,C,D,E,S
JGX-0400D-26A	38	48	0.256
JGX-0400D-22A	46	53	0.272
JGX-0400D-17.5A	53	64	0.288

Technical Data Sheet:

Vertical load

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness KN/m)	Impact stiffness(KN/m)
1	JGX-0400D-37A	37.0	12.7	222	117
2	JGX-0400D-31.5A	31.5	14.7	170	88
3	JGX-0400D-26A	26.0	19.8	116	54
4	JGX-0400D-22A	22.0	24.9	84	37
5	JGX-0400D-17.5A	17.5	32.0	58	23

45 ° directional load:

Corrosion And Impact Resistant JGX-0400A-37A Wire Rope Vibration Isolator For Vehicle Mounted And Airborne Equipment 3

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0400D-37A	25.9	17.8	123	60
2	JGX-0400D-31.5A	22.2	21.8	96	42
3	JGX-0400D-26A	18.6	27.9	66	28
4	JGX-0400D-22A	15.4	35.6	48	18
5	JGX-0400D-17.5A	11.7	44.7	31	11

Lateral load:

Corrosion And Impact Resistant JGX-0400A-37A Wire Rope Vibration Isolator For Vehicle Mounted And Airborne Equipment 4

Curve number	Model	Maximum static load(N)	Maximum static load(N)	Vibration stiffness(KN/m)	Impact stiffness(KN/m
1	JGX-0400D-37A	18.2	12.7	73	73
2	JGX-0400D-31.5A	15.9	15.7	53	53
3	JGX-0400D-26A	13.6	20.8	33	33
4	JGX-0400D-22A	11.3	25.9	23	23
5	JGX-0400D-17.5A	4.1	33.5	7.9	7.9

characteristic:
1. Efficient vibration isolation performance: Steel wire rope isolators can effectively absorb and reduce vibration transmission, effectively isolating vibration sources.
2. Strong durability: The steel wire rope isolator is made of durable steel wire rope, which has a long service life and can operate stably in harsh environments.
3. Adjustable: Steel wire rope isolators can usually be adjusted according to actual needs to meet the isolation requirements of different occasions.
4. Easy installation: Installing wire rope isolators is relatively simple and can be customized according to specific installation scenarios and requirements.
Application:
1. Building structure
2. Industrial equipment
3. Bridges
4. Pipeline
