JGX-0480A-75A Efficiently Reduce Vibration Damage With Wire Rope Vibration Isolator For Industrial Sites

JGX-0480A-75A Wire Rope Vibration Isolator

Efficiently Wire Rope Vibration Isolator

Industrial Sites Wire Rope Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0480A-75A

Request A Quote

Product Details

Max Static Load:

20-47N(2kg-4.8Kg)

Warranty:

1 Year

High:

216mm

Strand Construction:

7 X 19

Shock Rsistance:

20g/11ms

Wire Rope Construction:

7x7 Or 7x19

Installation Type:

Vertical

Wire Rope Length:

6 Inches

Design Style:

Industrial

Vibration Isolation Efficiency:

90%

Installation Method:

Screw Mounting

Temperature Range:

-40°F To 200°F

Wire Rope Diameter:

1/4 Inch

Highlight:

JGX-0480A-75A Wire Rope Vibration Isolator

Efficiently Wire Rope Vibration Isolator

Industrial Sites Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JGX-0320A-12A Automatic Damping Adjustment Wire Rope Vibration Isolator for Consistent Vibration Control

Get Best Price

Video

JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics

Get Best Price

JGX-0320A-14.5A Vibration Isolator Effective Damping of 0.5 for Stable Working Environment and Accurate Measurement Data

Get Best Price

Video

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems

Get Best Price

86-29-88292913

Contact Now

Product Description

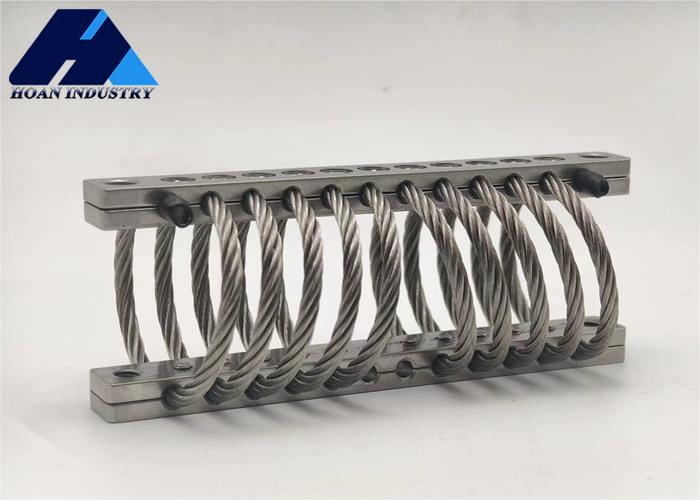

JGX-0480 Series

The JGX - 0480 series products of Xi'an Hoan Microwave Co., Ltd. have shown excellent performance in the field of vibration isolation and buffering. This series of products uses a steel wire rope with a diameter of 4.8mm, which is closely wound between the upper and lower splints. This unique structure gives it a strong load - bearing capacity, able to withstand a static load of 12 - 75kg, and can easily meet the needs of various scenarios.

It has very outstanding performance, with excellent corrosion resistance. Whether in humid coastal environments or industrial sites with chemical corrosion risks, it can operate stably and has a long service life. Its impact resistance is also extremely excellent, which can effectively absorb and disperse external impact energy to protect the connected equipment. In addition, the JGX - 0480 series is not afraid of high and low temperature challenges, and its performance remains stable without attenuation in extremely cold or hot environments.

Based on these advantages, it has a wide range of applications in many fields. It can effectively reduce the damage of vibration to electronic instruments and mechanical equipment in airborne, vehicle - mounted and ship - borne equipment; it can provide reliable safety protection for key equipment in missile and satellite related systems; and it can also ensure the normal operation of mechanical and electronic equipment in industrial facilities under harsh environments. It is a powerful choice to improve equipment stability and reliability.

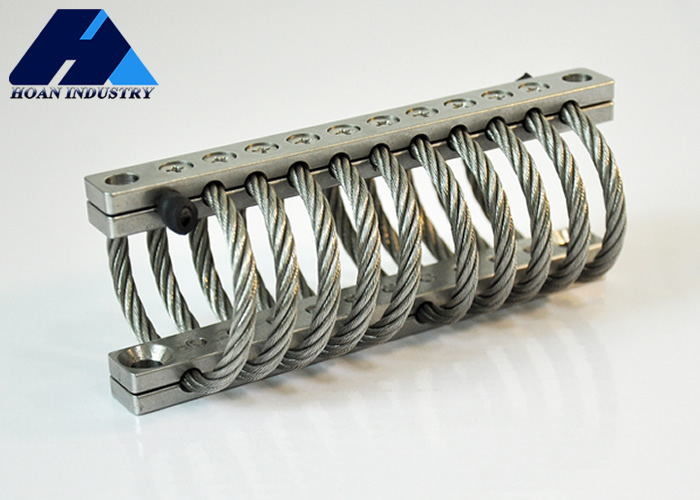

JGX-0480A-75A Efficiently Reduce Vibration Damage With Wire Rope Vibration Isolator For Industrial Sites 0

Mounting Options

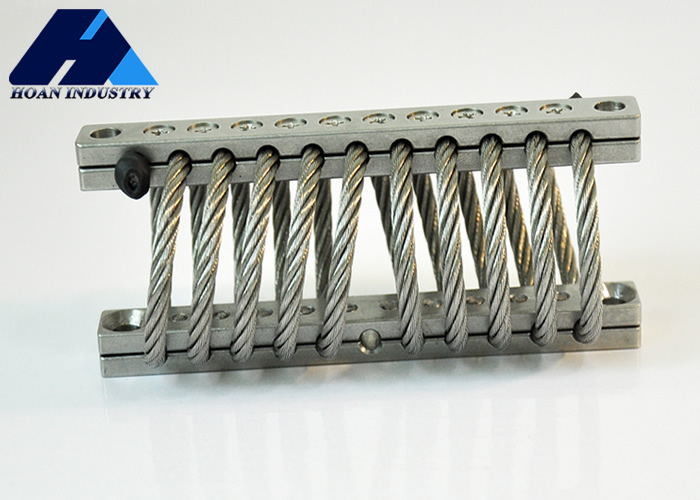

JGX-0480A-75A Efficiently Reduce Vibration Damage With Wire Rope Vibration Isolator For Industrial Sites 1

SIZE PARAMETER:

Model	“H”±3.30	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	C'sink(°)
JGX-0480A-75A	30	36	0.304	D	∅6.9±0.13	M6×1.0	90
JGX-0480A-72A	33	38	0.32	D
JGX-0480A-61A	36	41	0.336	B,D,E
JGX-0480A-59A	38	43	0.336	A,B,C,D,E,S
JGX-0480A-52A	41	46	0.352
JGX-0480A-50A	43	48	0.4
JGX-0480A-37A	51	58	0.416
JGX-0480A-24A	54	75	0.432
JGX-0480A-18A	62	88	0.448
JGX-0480A-12A	81	107	0.464

Technical Data Sheet:

Vertical load

No.	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness (KN/m)	Impact stiffness(KN/m)
1	JGX-0480A-75A	75	8.6	578	363
2	JGX-0480A-72A	72	11.7	455	252
3	JGX-0480A-61A	61	13.7	347	189
4	JGX-0480A-59A	59	15.7	301	152
5	JGX-0480A-52A	52	18.8	244	117
6	JGX-0480A-50A	50	20.8	212	96
7	JGX-0480A-37A	37	26.9	136	58
8	JGX-0480A-24A	24	29.5	82	33
9	JGX-0480A-18A	18	36.6	54	21
10	JGX-0480A-12A	12	52.8	29	10

45 ° directional load:

JGX-0480A-75A Efficiently Reduce Vibration Damage With Wire Rope Vibration Isolator For Industrial Sites 3

No.	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0480A-75A	54.5	12.7	341	179
2	JGX-0480A-72A	52.2	16.8	258	126
3	JGX-0480A-61A	44.1	19.8	197	93
4	JGX-0480A-59A	41.7	22.9	172	75
5	JGX-0480A-52A	38.1	26.9	141	58
6	JGX-0480A-50A	35.7	29	123	49
7	JGX-0480A-37A	26.5	38.1	77	28
8	JGX-0480A-24A	18.1	41.7	49	18
9	JGX-0480A-18A	13.9	51.3	33	11
10	JGX-0480A-12A	9.3	74.7	18	5.3

Lateral load:

JGX-0480A-75A Efficiently Reduce Vibration Damage With Wire Rope Vibration Isolator For Industrial Sites 4

No.	Model	Maximum static load(N)	Maximum static load(N)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0480A-75A	36.3	8.6	224	224
2	JGX-0480A-72A	36.3	11.7	156	156
3	JGX-0480A-61A	34.1	14.7	112	112
4	JGX-0480A-59A	31.7	16.8	93	93
5	JGX-0480A-52A	29.5	19.8	70	70
6	JGX-0480A-50A	27.2	21.8	60	60
7	JGX-0480A-37A	20.4	27.9	35	35
8	JGX-0480A-24A	5.9	31.0	11	11
9	JGX-0480A-18A	4.1	38.1	5.3	5.3
10	JGX-0480A-12A	2.2	55.9	2.3	2.3

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
No creep or ageing.
High internal damping.
Very wide temperature range.
Wide variety of possible fittings.
Rapid and economical prototyping.
Extremely rugged construction and long lifespan.
Excellent combined shock and vibration isolation.
Not affected by chemical agents, seawater, ozone, UV rays
