JGX-0480 Series

Xi'an Hoan Microwave Co., Ltd.'s JGX-0480 series steel wire rope vibration isolators are specially designed for precision instruments, communication equipment, and high-precision mechanical systems. They can effectively isolate external vibrations and shocks, ensuring the stability and reliability of equipment operation. The product adopts a multilayer stainless steel wire rope winding structure, with excellent elastic and damping characteristics, and the vibration isolation efficiency is over 90%, suitable for wide-frequency vibration scenarios from 5Hz to 500Hz. Its core advantages lie in high load-bearing capacity and long-life design. The static load of a single set of vibration isolators can reach 50kg-200kg, and the dynamic load adaptability is extremely strong, meeting the strict requirements of radar, satellite antennas, medical equipment, and other fields.

The JGX-0480 series adopts a omni-directional vibration isolation design, which can absorb vibration energy in horizontal, vertical, and multiple directions, reducing performance degradation of equipment caused by resonance. The product shell is made of corrosion-resistant aluminum alloy, and the surface is treated with anodizing, adapting to extreme environments from -50℃ to +120℃. The protection level is IP65, ensuring long-term stable work in harsh conditions such as humidity and salt spray.

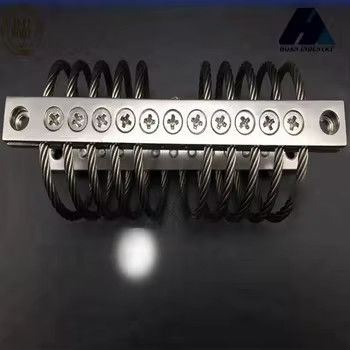

High-Performance JGX-0480A-72A Wire Rope Vibration Isolators for Precision Instruments and High-Precision Mechanical Systems 0

Mounting Options

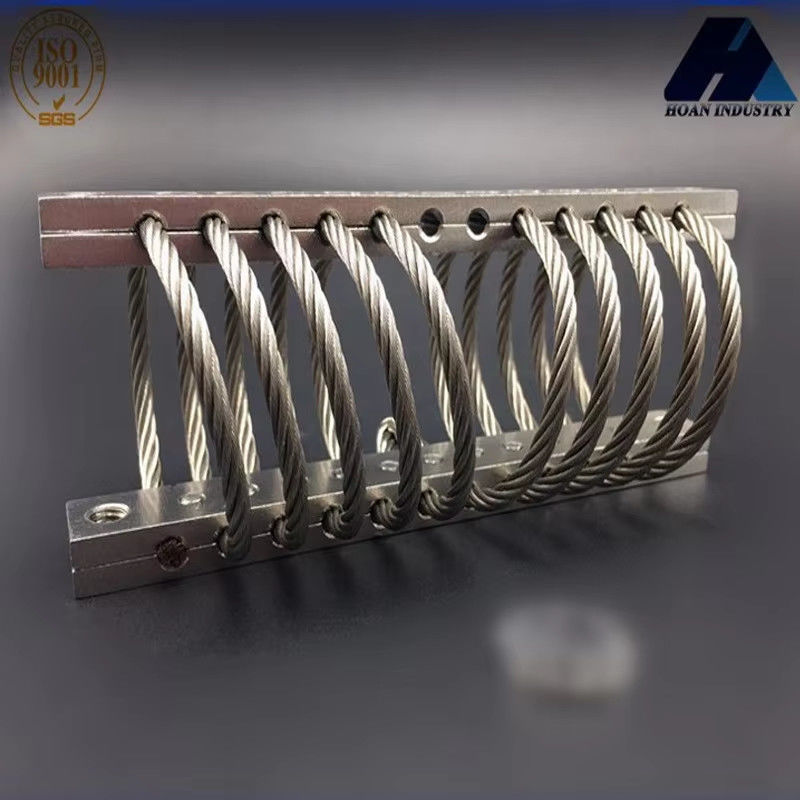

High-Performance JGX-0480A-72A Wire Rope Vibration Isolators for Precision Instruments and High-Precision Mechanical Systems 1

SIZE PARAMETER:

Model	“H”±3.30	“W”	Unit weight	Mounting options	Thru hole (mm)	Thread(mm)	C'sink(°)
JGX-0480A-75A	30	36	0.304	D	∅6.9±0.13	M6×1.0	90
JGX-0480A-72A	33	38	0.32	D
JGX-0480A-61A	36	41	0.336	B,D,E
JGX-0480A-59A	38	43	0.336	A,B,C,D,E,S
JGX-0480A-52A	41	46	0.352
JGX-0480A-50A	43	48	0.4
JGX-0480A-37A	51	58	0.416
JGX-0480A-24A	54	75	0.432
JGX-0480A-18A	62	88	0.448
JGX-0480A-12A	81	107	0.464

Technical Data Sheet:

Vertical load

No.	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness (KN/m)	Impact stiffness(KN/m)
1	JGX-0480A-75A	75	8.6	578	363
2	JGX-0480A-72A	72	11.7	455	252
3	JGX-0480A-61A	61	13.7	347	189
4	JGX-0480A-59A	59	15.7	301	152
5	JGX-0480A-52A	52	18.8	244	117
6	JGX-0480A-50A	50	20.8	212	96
7	JGX-0480A-37A	37	26.9	136	58
8	JGX-0480A-24A	24	29.5	82	33
9	JGX-0480A-18A	18	36.6	54	21
10	JGX-0480A-12A	12	52.8	29	10

45 ° directional load:

High-Performance JGX-0480A-72A Wire Rope Vibration Isolators for Precision Instruments and High-Precision Mechanical Systems 3

No.	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0480A-75A	54.5	12.7	341	179
2	JGX-0480A-72A	52.2	16.8	258	126
3	JGX-0480A-61A	44.1	19.8	197	93
4	JGX-0480A-59A	41.7	22.9	172	75
5	JGX-0480A-52A	38.1	26.9	141	58
6	JGX-0480A-50A	35.7	29	123	49
7	JGX-0480A-37A	26.5	38.1	77	28
8	JGX-0480A-24A	18.1	41.7	49	18
9	JGX-0480A-18A	13.9	51.3	33	11
10	JGX-0480A-12A	9.3	74.7	18	5.3

Lateral load:

High-Performance JGX-0480A-72A Wire Rope Vibration Isolators for Precision Instruments and High-Precision Mechanical Systems 4

No.	Model	Maximum static load(N)	Maximum static load(N)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0480A-75A	36.3	8.6	224	224
2	JGX-0480A-72A	36.3	11.7	156	156
3	JGX-0480A-61A	34.1	14.7	112	112
4	JGX-0480A-59A	31.7	16.8	93	93
5	JGX-0480A-52A	29.5	19.8	70	70
6	JGX-0480A-50A	27.2	21.8	60	60
7	JGX-0480A-37A	20.4	27.9	35	35
8	JGX-0480A-24A	5.9	31.0	11	11
9	JGX-0480A-18A	4.1	38.1	5.3	5.3
10	JGX-0480A-12A	2.2	55.9	2.3	2.3

* Material of Mounting Bars *
Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *
White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars

Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
