Name: Precision Protection JGX-0480A-50A Wire Rope Vibration Isolators for Complex Working Conditions
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0480A-50A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

Precision Protection JGX-0480A-50A Wire Rope Vibration Isolators for Complex Working Conditions

50A Wire Rope Vibration Isolators

Precision Protection Wire Rope Vibration Isolators

50A Wire Rope Vibration Isolators

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0480A-50A

Request A Quote

Product Details

After Warranty Service:

Online Support

Structure:

Helical

Compression Ratio:

1:2

Showroom Location:

None

Vibration Isolation Type:

Passive

Natural Frequency:

7Hz-15Hz

Condition:

New

Color:

Blackish Green And Silver Pai

Certifications:

ISO 9001, RoHS

Corrosion Resistance:

High

Installation Type:

Horizontal/Vertical

Applications:

Marine And Industrial Engine Mounts

Type:

SHOCK ABSORBER

Length:

127mm

Highlight:

50A Wire Rope Vibration Isolators

Precision Protection Wire Rope Vibration Isolators

50A Wire Rope Vibration Isolators

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments

Get Best Price

Video

Temperature Resistant GR4-18D-A Wire Rope Vibration Isolator for Smooth Industrial Operations

Get Best Price

Video

GR2-12D-A Cinema Shock Absorber Professional Grade Wire Rope Vibration Isolator for Smooth Filmmaking

Get Best Price

Video

JGX-0956A-75A Wire Rope Vibration Isolator For Aerospace And Military Equipment With Nonlinear Stiffness

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0480A series

Xi'an Hoan Microwave Co., Ltd. has launched the JGX-0480A series steel wire rope vibration isolators, which integrate innovative materials and structural mechanics design to provide all-round vibration isolation protection for precision equipment. Its core adopts high-strength stainless steel wire rope spiral weaving, which absorbs wide-frequency vibration through elastic deformation, significantly reduces resonance transmission, and ensures the stability and reliability of equipment under complex working conditions.

The series of vibration isolators has excellent anti-fatigue performance and still maintains good elasticity after tens of thousands of vibration tests, making it suitable for industrial scenarios with long-term high-load operation. At the same time, its lightweight design reduces the overall weight of the equipment, and the installation is flexible and convenient. Whether for laboratory precision instruments or military radars in field operations, JGX-0480A can effectively suppress environmental vibration interference, improve equipment accuracy and service life, and is an indispensable vibration reduction partner in the high-tech field.

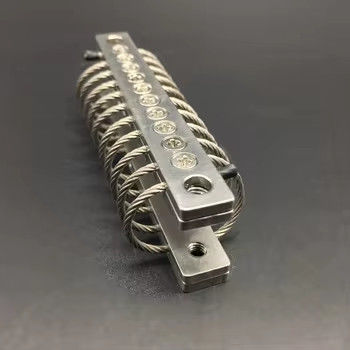

Precision Protection JGX-0480A-50A Wire Rope Vibration Isolators for Complex Working Conditions 0

Model	“H”±3.30	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	C'sink(°)
JGX-0480A-75A	30	36	0.304	D	∅6.9±0.13	M6×1.0	90
JGX-0480A-72A	33	38	0.32	D
JGX-0480A-61A	36	41	0.336	B,D,E
JGX-0480A-59A	38	43	0.336	A,B,C,D,E,S
JGX-0480A-52A	41	46	0.352
JGX-0480A-50A	43	48	0.4
JGX-0480A-37A	51	58	0.416
JGX-0480A-24A	54	75	0.432
JGX-0480A-18A	62	88	0.448
JGX-0480A-12A	81	107	0.464

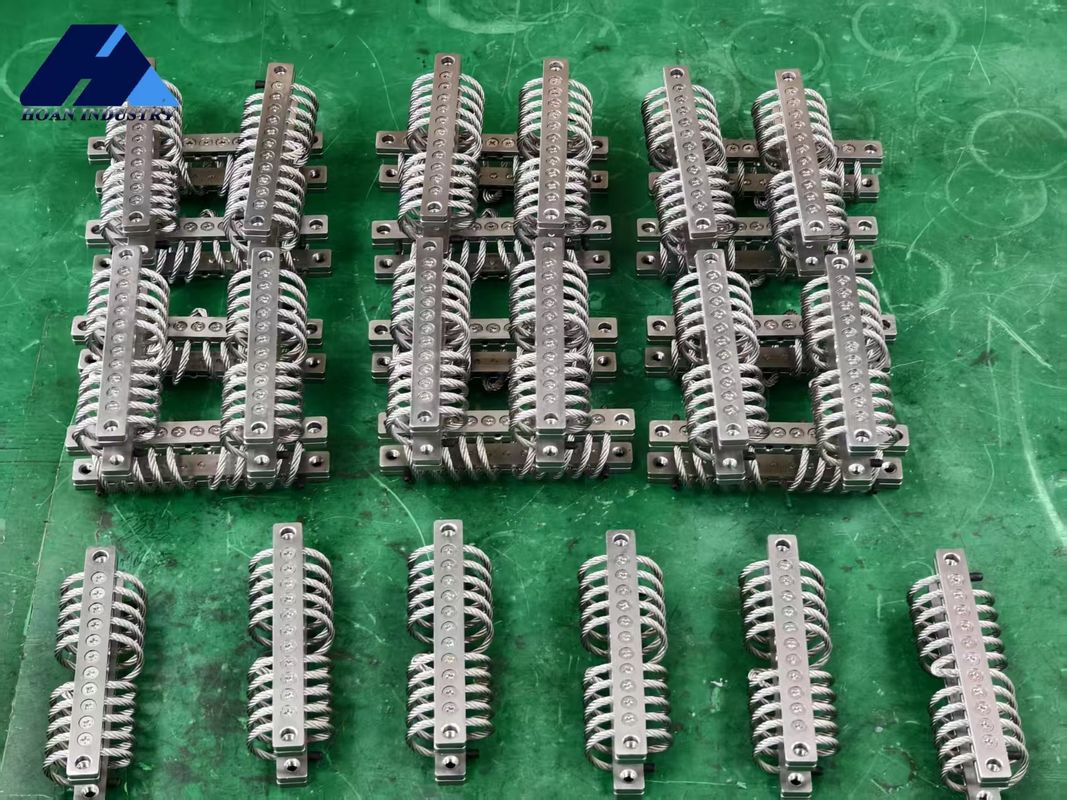

Precision Protection JGX-0480A-50A Wire Rope Vibration Isolators for Complex Working Conditions 1

Static-Load Curve

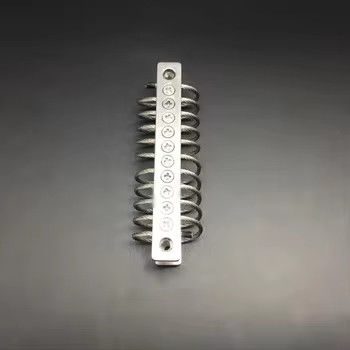

Precision Protection JGX-0480A-50A Wire Rope Vibration Isolators for Complex Working Conditions 2

No.	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0480A-75A	75	8.6	578	363
2	JGX-0480A-72A	72	11.7	455	252
3	JGX-0480A-61A	61	13.7	347	189
4	JGX-0480A-59A	59	15.7	301	152
5	JGX-0480A-52A	52	18.8	244	117
6	JGX-0480A-50A	50	20.8	212	96
7	JGX-0480A-37A	37	26.9	136	58
8	JGX-0480A-24A	24	29.5	82	33
9	JGX-0480A-18A	18	36.6	54	21
10	JGX-0480A-12A	12	52.8	29	10

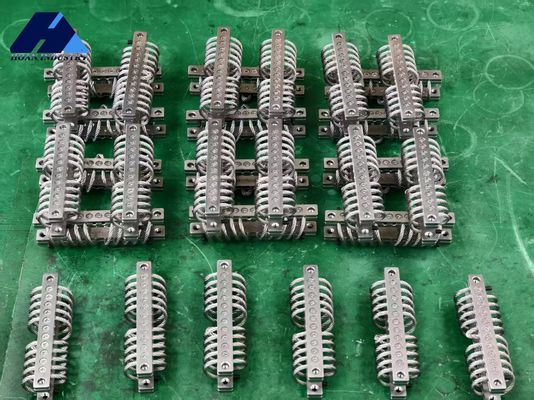

Precision Protection JGX-0480A-50A Wire Rope Vibration Isolators for Complex Working Conditions 3

No.	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0480A-75A	54.5	12.7	341	179
2	JGX-0480A-72A	52.2	16.8	258	126
3	JGX-0480A-61A	44.1	19.8	197	93
4	JGX-0480A-59A	41.7	22.9	172	75
5	JGX-0480A-52A	38.1	26.9	141	58
6	JGX-0480A-50A	35.7	29	123	49
7	JGX-0480A-37A	26.5	38.1	77	28
8	JGX-0480A-24A	18.1	41.7	49	18
9	JGX-0480A-18A	13.9	51.3	33	11
10	JGX-0480A-12A	9.3	74.7	18	5.3

Precision Protection JGX-0480A-50A Wire Rope Vibration Isolators for Complex Working Conditions 4

No.	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0480A-75A	36.3	8.6	224	224
2	JGX-0480A-72A	36.3	11.7	156	156
3	JGX-0480A-61A	34.1	14.7	112	112
4	JGX-0480A-59A	31.7	16.8	93	93
5	JGX-0480A-52A	29.5	19.8	70	70
6	JGX-0480A-50A	27.2	21.8	60	60
7	JGX-0480A-37A	20.4	27.9	35	35
8	JGX-0480A-24A	5.9	31.0	11	11
9	JGX-0480A-18A	4.1	38.1	5.3	5.3
10	JGX-0480A-12A	2.2	55.9	2.3	2.3
