Name: JGX-0480A-37A Customized Steel Wire Rope Vibration Isolator for Precise Vibration Control Solutions
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0480A-37A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-0480A-37A Customized Steel Wire Rope Vibration Isolator for Precise Vibration Control Solutions

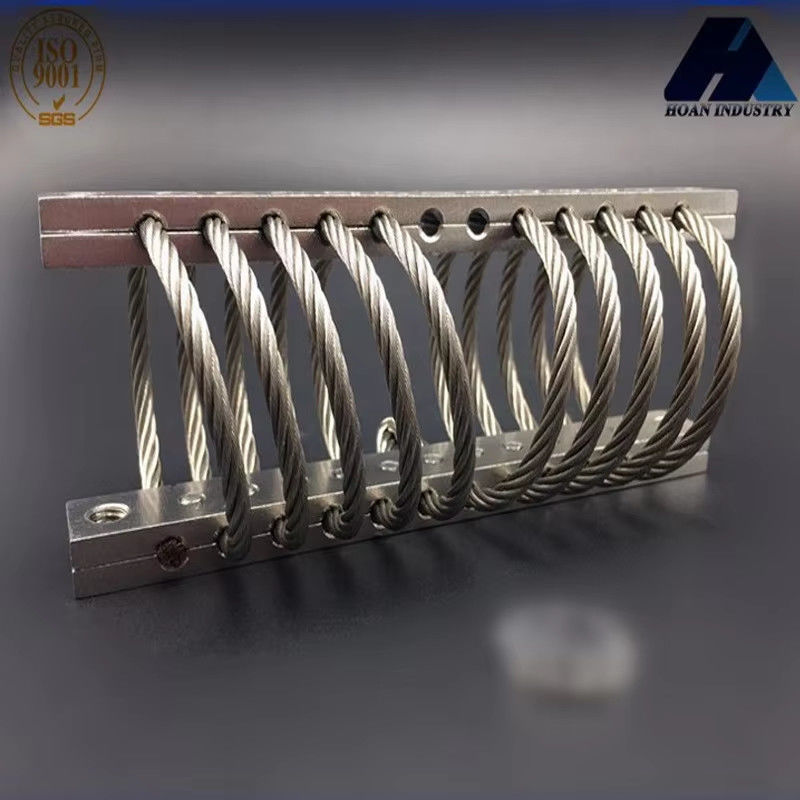

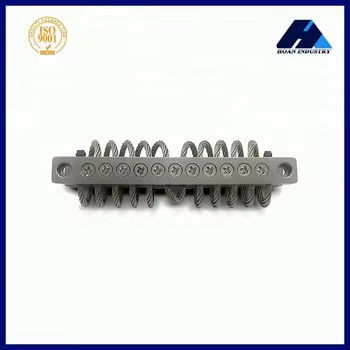

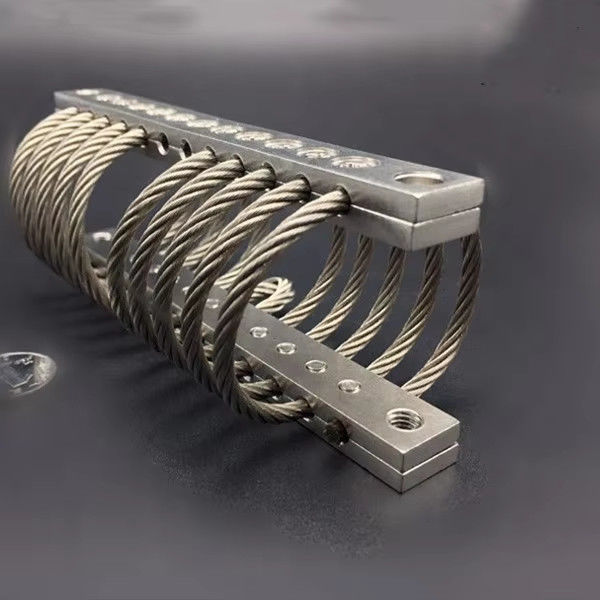

JGX-0480A-37A Wire Rope Vibration Isolator

Customized Steel Wire Rope Vibration Isolator

JGX-0480A-37A Wire Rope Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0480A-37A

Request A Quote

Product Details

Shock Rsistance:

30g/11ms

Height:

51mm

Accessories:

Net

Mounting Thread Size:

Applicable Industries:

Energy & Mining

Product Load Capacity:

Customizable

Machinery Test Report:

Provided

Warranty:

1 Year

Wire Rope Diameter:

3mm

Shock Absorption:

Excellent

Mounting Hole Size:

8mm

Applications:

Marine And Industrial Engine Mounts

Working Temperatu:

: -55 ~ +120

Vibration Isolation Type:

Wire Rope

Corrosion Resistance:

High

Highlight:

JGX-0480A-37A Wire Rope Vibration Isolator

Customized Steel Wire Rope Vibration Isolator

JGX-0480A-37A Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,T/T,D/P,Western Union,MoneyGram

JGX-0320A-12A Automatic Damping Adjustment Wire Rope Vibration Isolator for Consistent Vibration Control

Get Best Price

Video

JGX-0320A-13.5A Wire Rope Vibration Isolator with Excellent Elastic and Damping Characteristics

Get Best Price

JGX-0320A-14.5A Vibration Isolator Effective Damping of 0.5 for Stable Working Environment and Accurate Measurement Data

Get Best Price

Video

JGX-0320A-16A Wire Rope Vibration Isolators For Navigation Systems

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0480A series

The JGX-0480A series steel wire rope vibration isolators from Xi'an Hoan Microwave Co., Ltd. meet diverse needs through customized services, providing clients with precise vibration control solutions. By adjusting the diameter, number of coils, and layout of the steel wire ropes, the product can achieve matching of different stiffness and damping characteristics, adapting to wide-range vibration isolation requirements from low to high frequencies.

This series of vibration isolators not only boasts excellent mechanical performance but also undergoes rigorous environmental tests such as salt spray and damp heat to ensure long-term effectiveness in harsh conditions. Its non-magnetic and radiation-resistant properties make it particularly suitable for special scenarios like medical equipment and satellite communications. Additionally, Hoan Microwave offers professional technical support and dynamic simulation analysis to help users optimize the design of vibration reduction systems. With flexible and reliable performance, the JGX-0480A series has become a benchmark for vibration reduction in high-end industrial and defense fields.

JGX-0480A-37A Customized Steel Wire Rope Vibration Isolator for Precise Vibration Control Solutions 0

Model	“H”±3.30	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	C'sink(°)
JGX-0480A-75A	30	36	0.304	D	∅6.9±0.13	M6×1.0	90
JGX-0480A-72A	33	38	0.32	D
JGX-0480A-61A	36	41	0.336	B,D,E
JGX-0480A-59A	38	43	0.336	A,B,C,D,E,S
JGX-0480A-52A	41	46	0.352
JGX-0480A-50A	43	48	0.4
JGX-0480A-37A	51	58	0.416
JGX-0480A-24A	54	75	0.432
JGX-0480A-18A	62	88	0.448
JGX-0480A-12A	81	107	0.464

JGX-0480A-37A Customized Steel Wire Rope Vibration Isolator for Precise Vibration Control Solutions 1

Static-Load Curve

JGX-0480A-37A Customized Steel Wire Rope Vibration Isolator for Precise Vibration Control Solutions 2

No.	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0480A-75A	75	8.6	578	363
2	JGX-0480A-72A	72	11.7	455	252
3	JGX-0480A-61A	61	13.7	347	189
4	JGX-0480A-59A	59	15.7	301	152
5	JGX-0480A-52A	52	18.8	244	117
6	JGX-0480A-50A	50	20.8	212	96
7	JGX-0480A-37A	37	26.9	136	58
8	JGX-0480A-24A	24	29.5	82	33
9	JGX-0480A-18A	18	36.6	54	21
10	JGX-0480A-12A	12	52.8	29	10

JGX-0480A-37A Customized Steel Wire Rope Vibration Isolator for Precise Vibration Control Solutions 3

No.	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0480A-75A	54.5	12.7	341	179
2	JGX-0480A-72A	52.2	16.8	258	126
3	JGX-0480A-61A	44.1	19.8	197	93
4	JGX-0480A-59A	41.7	22.9	172	75
5	JGX-0480A-52A	38.1	26.9	141	58
6	JGX-0480A-50A	35.7	29	123	49
7	JGX-0480A-37A	26.5	38.1	77	28
8	JGX-0480A-24A	18.1	41.7	49	18
9	JGX-0480A-18A	13.9	51.3	33	11
10	JGX-0480A-12A	9.3	74.7	18	5.3

JGX-0480A-37A Customized Steel Wire Rope Vibration Isolator for Precise Vibration Control Solutions 4

No.	Model	Max Static Load (kg)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0480A-75A	36.3	8.6	224	224
2	JGX-0480A-72A	36.3	11.7	156	156
3	JGX-0480A-61A	34.1	14.7	112	112
4	JGX-0480A-59A	31.7	16.8	93	93
5	JGX-0480A-52A	29.5	19.8	70	70
6	JGX-0480A-50A	27.2	21.8	60	60
7	JGX-0480A-37A	20.4	27.9	35	35
8	JGX-0480A-24A	5.9	31.0	11	11
9	JGX-0480A-18A	4.1	38.1	5.3	5.3
10	JGX-0480A-12A	2.2	55.9	2.3	2.3

* The material of the mounting splint *
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy plywood *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;

* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
