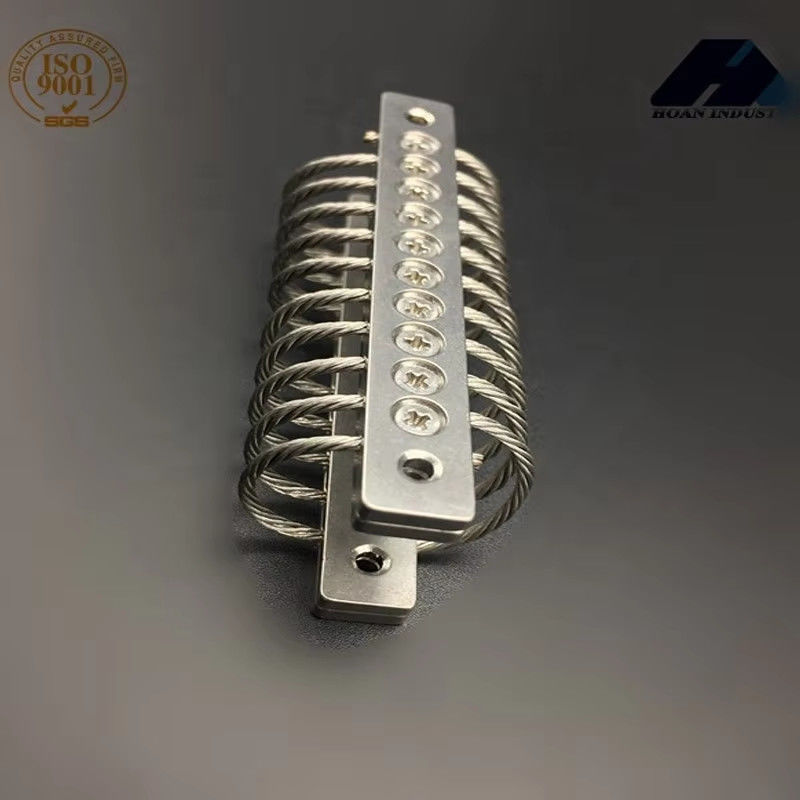

JGX-0648A-45A Wire Rope Vibration Isolator Effective Vibration Reduction for Automotive Engines

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0648A-45A

Request A Quote

Product Details

Wire Rope Length:

6.4mm

Vibration Isolation Range:

10Hz To 100Hz

Design Style:

Industrial

Temperature Range:

-40 To 200 Degrees Fahrenheit

Applicable Industries:

Energy & Mining

Weight:

0.5kg

Resonance Frequency:

30 Hz

Construction:

Braided Wire Rope

Structure:

Helical Spring

Installation Type:

Vertical

Packing:

Standard Packing

Characteristic:

Wide Working Frequency, Long Life Span

Working Temperatu:

: -55 ~ +120

Product Certification:

ISO 9001

Payment & Shipping Terms

Minimum Order Quantity

Delivery Time

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

4，pience，7

High-Strength and Lightweight JGX-0648A-33A Wire Rope Vibration Isolators for Weight-Sensitive Applications

Get Best Price

JGX-0648A-36A Wire Rope Vibration Isolators The Premier Choice for High-Precision Equipment Protection

Get Best Price

Compact and Easy to Install JGX-0648A-39A Wire Rope Vibration Isolators

Get Best Price

JGX-0648D-56A Meticulously Designed Wire Rope Vibration Isolator for Optimal Performance in Various Devices

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0648A Series

The JGX-0648 series of wire rope vibration isolators is independently developed and manufactured by Xi'an Hoan Microwave Co., Ltd. This series features a spiral wire rope winding structure. Through precise processes, the wire ropes are firmly fixed between the upper and lower metal substrates, forming highly efficient vibration isolation units. With different design parameters, the products offer various specifications of static load - bearing capacities, meeting diverse engineering application requirements.

Verified by practical engineering projects, the JGX-0648 series of vibration isolators has been widely applied on a large scale in the automotive manufacturing, shipbuilding, and military industries in regions such as Liaoning, Beijing, and Shanghai. In the assembly of automotive powertrain systems, these products can effectively reduce the transmission of engine vibrations to the vehicle body structure. In the shipbuilding field, they ensure the stable operation of marine precision electronic equipment under complex sea conditions. In military equipment systems, they provide reliable vibration protection for various military facilities, ensuring their continuous stable operation in extreme environmental conditions. The JGX-0648 series is an ideal vibration isolation solution for safeguarding the reliable operation of key equipment in multiple industries.

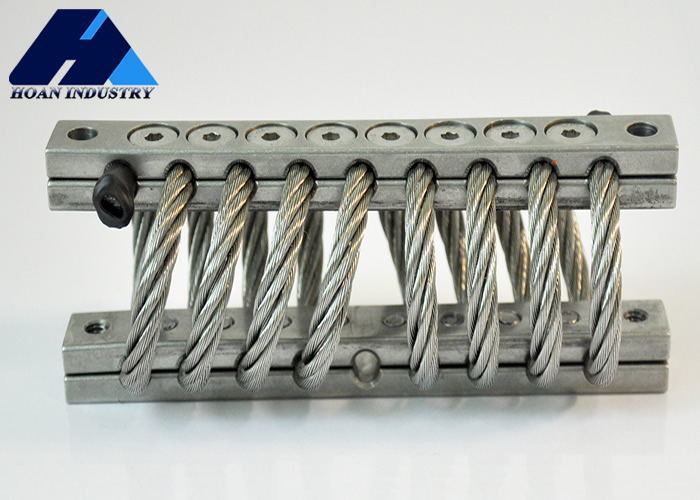

JGX-0648A-45A Wire Rope Vibration Isolator Effective Vibration Reduction for Automotive Engines 0

Mounting Options

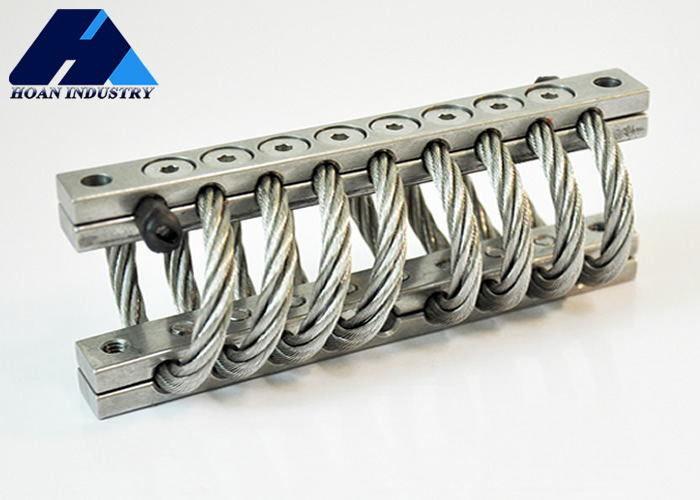

JGX-0648A-45A Wire Rope Vibration Isolator Effective Vibration Reduction for Automotive Engines 1

SIZE PARAMETER:

Model	“H”±3.30	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	Csink(℃)
JGX-0648D-79A	48	56	0.456	A,B,C,D,E,S	∅6.9±0.13	M6×1.0	90
JGX-0648D-68A	54	64	0.492
JGX-0648D-56A	59	71	0.516
JGX-0648D-45A	64	80	0.564
JGX-0648D-39A	64	89	0.832
JGX-0648D-36A	67	95	0.864
JGX-0648D-33A	67	100	0.684
JGX-0648D-30A	83	108	0.708

Technical Data Sheet:

Vertical load

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness (KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	79	17.8	382	182
2	JGX-0648D-68A	68	23.9	266	116
3	JGX-0648D-56A	56	29.0	196	79
4	JGX-0648D-45A	45	32.0	151	60
5	JGX-0648D-39A	39	32.0	127	51
6	JGX-0648D-36A	36	35.6	109	42
7	JGX-0648D-33A	33	35.6	100	39
8	JGX-0648D-30A	30	50.8	74	25

45 ° directional load:

JGX-0648A-45A Wire Rope Vibration Isolator Effective Vibration Reduction for Automotive Engines 3

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	56.7	25.9	215	89
2	JGX-0648D-68A	47.7	34.0	151	58
3	JGX-0648D-56A	39.8	39.6	109	40
4	JGX-0648D-45A	32.8	45.7	86	30
5	JGX-0648D-39A	27.9	45.7	72	25
6	JGX-0648D-36A	25.3	50.8	61	21
7	JGX-0648D-33A	23.4	50.8	56	19
8	JGX-0648D-30A	21.3	71.6	41	12

Lateral load:

JGX-0648A-45A Wire Rope Vibration Isolator Effective Vibration Reduction for Automotive Engines 4

Curve number	Model	Maximum static load(N)	Maximum static load(N)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	43.2	18.8	110	110
2	JGX-0648D-68A	36.3	24.9	72	72
3	JGX-0648D-56A	31.7	30.0	49	49
4	JGX-0648D-45A	25.0	34.0	37	37
5	JGX-0648D-39A	22.7	34.0	32	32
6	JGX-0648D-36A	20.4	38.1	25	25
7	JGX-0648D-33A	18.2	38.1	23	23
8	JGX-0648D-30A	15.9	52.8	16	16

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
