Wire Rope Diameter:

3mm

Strand Construction:

7x19

Function:

Damping

Temperature Range:

-40℃ To 80℃

Mounting Type:

Loop To Loop

Installation Type:

Vertical

Accessories:

Net

Vibration Isolation Efficiency:

Up To 90%

Diameter:

1 Inch

Isolator Type:

Vibration

Condition:

New

Type:

SHOCK ABSORBER

Shape:

Cylindrical

Shock Resistance:

20g/11ms

Shock Absorption:

Yes

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

4，pience，7

High-Strength and Lightweight JGX-0648A-33A Wire Rope Vibration Isolators for Weight-Sensitive Applications

Get Best Price

JGX-0648A-36A Wire Rope Vibration Isolators The Premier Choice for High-Precision Equipment Protection

Get Best Price

Compact and Easy to Install JGX-0648A-39A Wire Rope Vibration Isolators

Get Best Price

JGX-0648D-56A Meticulously Designed Wire Rope Vibration Isolator for Optimal Performance in Various Devices

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0648A Series

The JGX-0648 series of wire rope vibration isolators developed by Xi'an Hoan Microwave Co., Ltd. are professional-grade products in the field of vibration isolation, boasting excellent comprehensive performance. Take the JGX-0648D-79A model as an example. This isolator is meticulously wound with a 6.4mm-diameter stainless steel wire rope and firmly assembled with high-strength upper and lower clamping plates. Through testing, it demonstrates remarkable load-bearing capacity, with a maximum static load of up to 79kg.

In terms of environmental adaptability, this series of vibration isolators can maintain stable operation in extreme high and low temperature environments, offering a wide temperature tolerance range. Thanks to high-quality stainless steel materials, they exhibit outstanding corrosion resistance even under complex working conditions with chemical exposure. Whether applied to airborne equipment in turbulent high-altitude environments, vehicle-mounted devices on bumpy roads, or shipborne equipment in humid marine conditions, the JGX-0648 series wire rope vibration isolators provide efficient vibration isolation and buffering solutions for electronic devices, mechanical equipment, and instruments, effectively ensuring stable operation and optimal performance of the equipment.

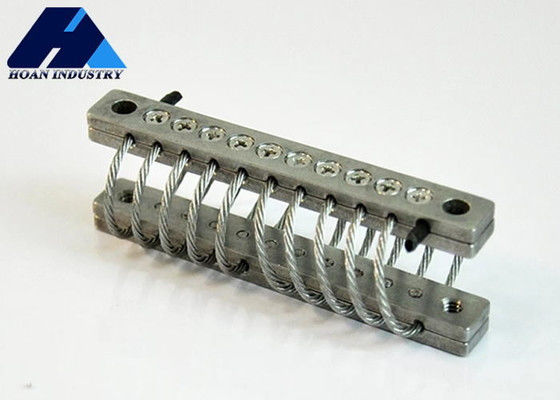

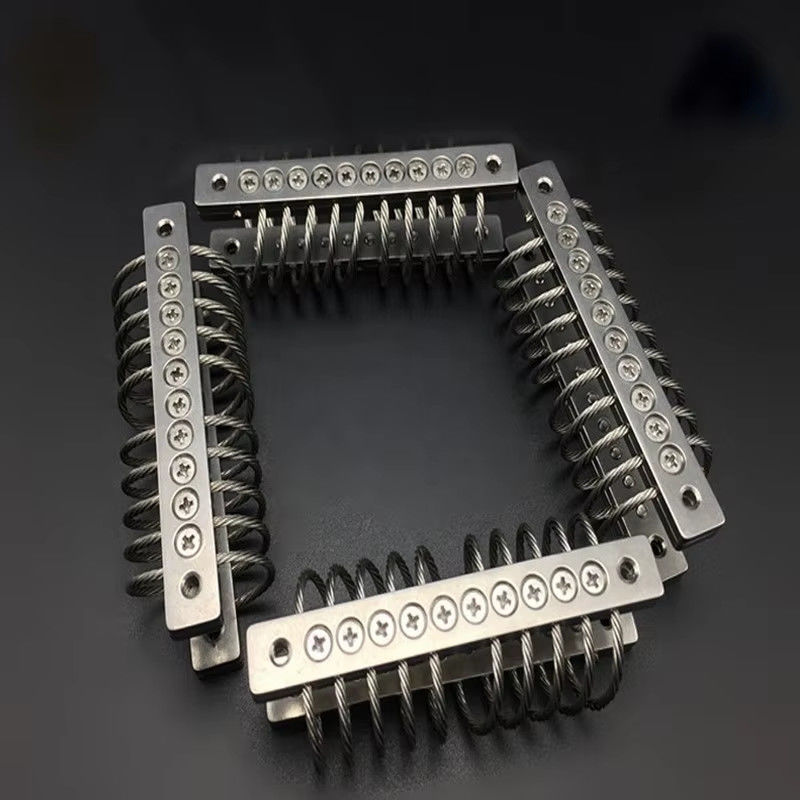

JGX-0648a-79a Wire Rope Vibration Isolators for Complex Working Conditions with Chemical Exposure 0

Mounting Options

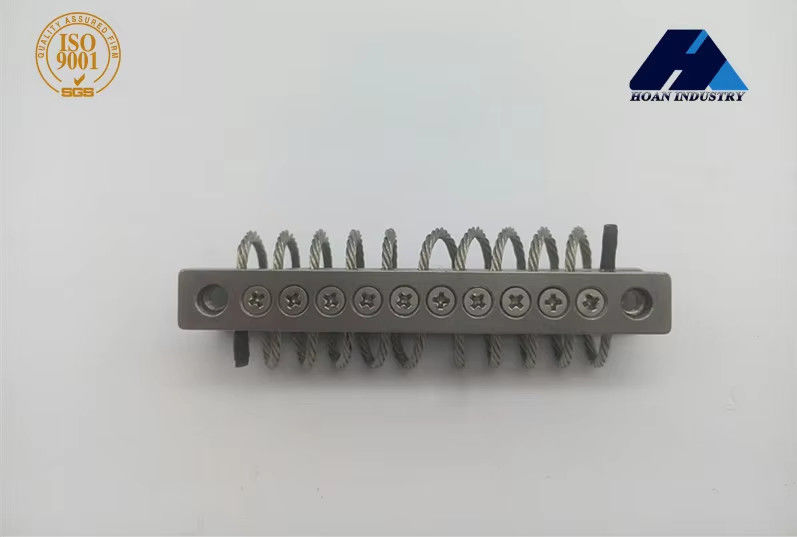

JGX-0648a-79a Wire Rope Vibration Isolators for Complex Working Conditions with Chemical Exposure 1

SIZE PARAMETER:

Model	“H”±3.30	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	Csink(℃)
JGX-0648D-79A	48	56	0.456	A,B,C,D,E,S	∅6.9±0.13	M6×1.0	90
JGX-0648D-68A	54	64	0.492
JGX-0648D-56A	59	71	0.516
JGX-0648D-45A	64	80	0.564
JGX-0648D-39A	64	89	0.832
JGX-0648D-36A	67	95	0.864
JGX-0648D-33A	67	100	0.684
JGX-0648D-30A	83	108	0.708

Technical Data Sheet:

Vertical load

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness (KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	79	17.8	382	182
2	JGX-0648D-68A	68	23.9	266	116
3	JGX-0648D-56A	56	29.0	196	79
4	JGX-0648D-45A	45	32.0	151	60
5	JGX-0648D-39A	39	32.0	127	51
6	JGX-0648D-36A	36	35.6	109	42
7	JGX-0648D-33A	33	35.6	100	39
8	JGX-0648D-30A	30	50.8	74	25

45 ° directional load:

JGX-0648a-79a Wire Rope Vibration Isolators for Complex Working Conditions with Chemical Exposure 3

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	56.7	25.9	215	89
2	JGX-0648D-68A	47.7	34.0	151	58
3	JGX-0648D-56A	39.8	39.6	109	40
4	JGX-0648D-45A	32.8	45.7	86	30
5	JGX-0648D-39A	27.9	45.7	72	25
6	JGX-0648D-36A	25.3	50.8	61	21
7	JGX-0648D-33A	23.4	50.8	56	19
8	JGX-0648D-30A	21.3	71.6	41	12

Lateral load:

JGX-0648a-79a Wire Rope Vibration Isolators for Complex Working Conditions with Chemical Exposure 4

Curve number	Model	Maximum static load(N)	Maximum static load(N)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	43.2	18.8	110	110
2	JGX-0648D-68A	36.3	24.9	72	72
3	JGX-0648D-56A	31.7	30.0	49	49
4	JGX-0648D-45A	25.0	34.0	37	37
5	JGX-0648D-39A	22.7	34.0	32	32
6	JGX-0648D-36A	20.4	38.1	25	25
7	JGX-0648D-33A	18.2	38.1	23	23
8	JGX-0648D-30A	15.9	52.8	16	16

* The material of the mounting splint *

Stainless Steel or Aluminum can be selected

* Surface treatment options for aluminum alloy plywood *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
