Name: JGX-0648A-30A Wire Rope Vibration Isolator Ultimate Solution for High-Temperature High-Humidity and Salt Spray Environments
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0648A-30A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-0648A-30A Wire Rope Vibration Isolator Ultimate Solution for High-Temperature High-Humidity and Salt Spray Environments

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0648A-30A

Request A Quote

Product Details

Natural Frequency:

7Hz-15Hz

Construction:

Braided Wire Rope

Number Of Loops:

Weight:

0.5kg

Axial Stiffness:

50N/mm

Mounting Orientation:

Vertical

Color:

Blackish Green And Silver Pai

Width:

108mm

Damping Ratio:

0.5

Strand Construction:

7 X 19

Relative Product:

Backdraft Damper

Wire Rope Diameter:

6.4mm

Vibration Frequency Range:

5-50 Hz

Number Of Strands:

Working Temperature:

-55 ~ +120

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JGX-0648A-30A Wire Rope Vibration Isolator Ultimate Solution for High-Temperature High-Humidity and Salt Spray Environments

Get Best Price

High-Strength and Lightweight JGX-0648A-33A Wire Rope Vibration Isolators for Weight-Sensitive Applications

Get Best Price

JGX-0648A-36A Wire Rope Vibration Isolators The Premier Choice for High-Precision Equipment Protection

Get Best Price

Compact and Easy to Install JGX-0648A-39A Wire Rope Vibration Isolators

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0648A Series

In harsh environments such as high temperature, high humidity, and salt spray, traditional vibration isolators are prone to failure, while the JGX-0648A series wire rope vibration isolators from Xi'an Hoan Microwave Co., Ltd. stand out with their exceptional environmental adaptability. The product adopts an all-metal structure without rubber or plastic components, fundamentally avoiding material aging issues and making it suitable for long-term outdoor or harsh industrial environments.

This series of vibration isolators achieves wide-band vibration isolation by optimizing the winding density and layers of the wire rope, capable of both suppressing low-frequency vibrations and absorbing high-frequency noise. Its modular design facilitates quick replacement and reduces downtime. In addition, the product complies with RoHS environmental standards, meeting the requirements of green manufacturing.

Whether for offshore platform equipment, field communication devices, or industrial automation systems, the JGX-0648A series provides lasting and stable vibration isolation, reflecting Xi'an Hoan Microwave's ultimate pursuit of quality.

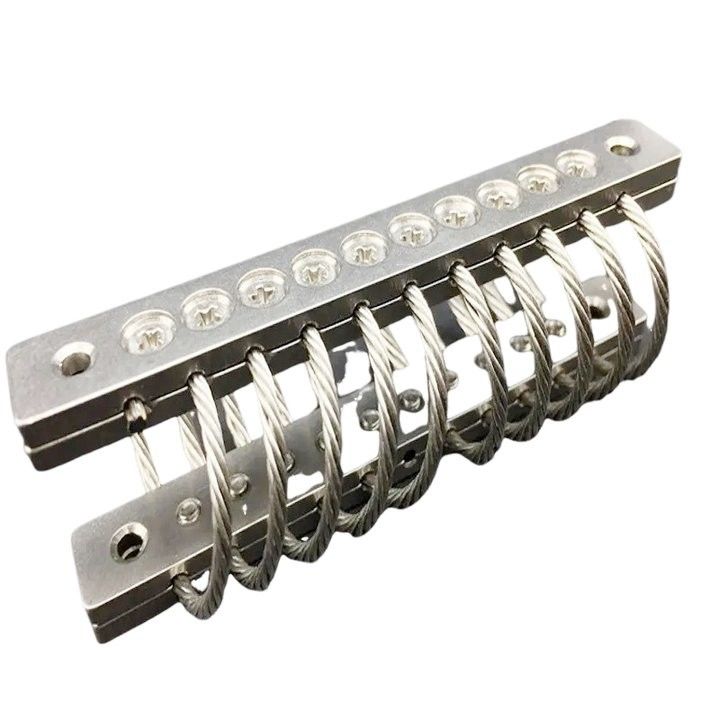

JGX-0648A-30A Wire Rope Vibration Isolator Ultimate Solution for High-Temperature High-Humidity and Salt Spray Environments 0

Mounting Options

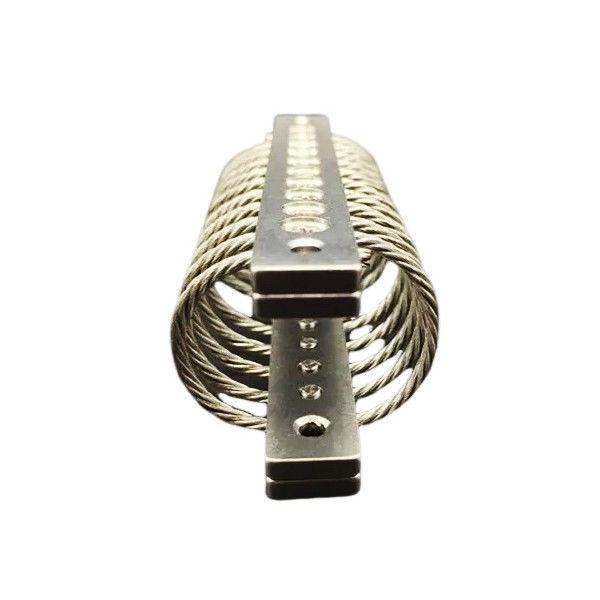

JGX-0648A-30A Wire Rope Vibration Isolator Ultimate Solution for High-Temperature High-Humidity and Salt Spray Environments 1

SIZE PARAMETER:

Model	“H”±3.30	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	Csink(℃)
JGX-0648D-79A	48	56	0.456	A,B,C,D,E,S	∅6.9±0.13	M6×1.0	90
JGX-0648D-68A	54	64	0.492
JGX-0648D-56A	59	71	0.516
JGX-0648D-45A	64	80	0.564
JGX-0648D-39A	64	89	0.832
JGX-0648D-36A	67	95	0.864
JGX-0648D-33A	67	100	0.684
JGX-0648D-30A	83	108	0.708

Technical Data Sheet:

Vertical load

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness (KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	79	17.8	382	182
2	JGX-0648D-68A	68	23.9	266	116
3	JGX-0648D-56A	56	29.0	196	79
4	JGX-0648D-45A	45	32.0	151	60
5	JGX-0648D-39A	39	32.0	127	51
6	JGX-0648D-36A	36	35.6	109	42
7	JGX-0648D-33A	33	35.6	100	39
8	JGX-0648D-30A	30	50.8	74	25

45 ° directional load:

JGX-0648A-30A Wire Rope Vibration Isolator Ultimate Solution for High-Temperature High-Humidity and Salt Spray Environments 3

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	56.7	25.9	215	89
2	JGX-0648D-68A	47.7	34.0	151	58
3	JGX-0648D-56A	39.8	39.6	109	40
4	JGX-0648D-45A	32.8	45.7	86	30
5	JGX-0648D-39A	27.9	45.7	72	25
6	JGX-0648D-36A	25.3	50.8	61	21
7	JGX-0648D-33A	23.4	50.8	56	19
8	JGX-0648D-30A	21.3	71.6	41	12

Lateral load:

JGX-0648A-30A Wire Rope Vibration Isolator Ultimate Solution for High-Temperature High-Humidity and Salt Spray Environments 4

Curve number	Model	Maximum static load(N)	Maximum static load(N)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	43.2	18.8	110	110
2	JGX-0648D-68A	36.3	24.9	72	72
3	JGX-0648D-56A	31.7	30.0	49	49
4	JGX-0648D-45A	25.0	34.0	37	37
5	JGX-0648D-39A	22.7	34.0	32	32
6	JGX-0648D-36A	20.4	38.1	25	25
7	JGX-0648D-33A	18.2	38.1	23	23
8	JGX-0648D-30A	15.9	52.8	16	16
