Name: Compact and Easy to Install JGX-0648A-39A Wire Rope Vibration Isolators
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0648A-39A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

Compact and Easy to Install JGX-0648A-39A Wire Rope Vibration Isolators

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0648A-39A

Request A Quote

Product Details

Features:

Anchoring Holes; Oil Resis

Height:

64mm

Color:

Blackish Green And Silver Pai

Vibration Isolation Type:

Passive

Feature:

Durable

Shock Absorption:

Excellent

Product Load Capacity:

Customizable

Width:

178mm

Relative Product:

Backdraft Damper

Application:

Industrial, Marine, Aerospace

Function:

Anti Shock

Core Components:

Bearing

Installation:

Wall Mounted

Shock Resistance:

30g/11ms

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

High-Strength and Lightweight JGX-0648A-33A Wire Rope Vibration Isolators for Weight-Sensitive Applications

Get Best Price

JGX-0648A-36A Wire Rope Vibration Isolators The Premier Choice for High-Precision Equipment Protection

Get Best Price

Compact and Easy to Install JGX-0648A-39A Wire Rope Vibration Isolators

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0648A Series

The JGX-0648A series wire rope vibration isolators launched by Xi'an Hoan Microwave Co., Ltd. are high-performance vibration isolation devices specially designed for precision instruments, electronic equipment, and military equipment. Made by winding high-quality stainless steel wire ropes, the product features excellent impact resistance and vibration isolation performance, effectively absorbing high-frequency vibrations and impact energy to protect equipment from damage.

The JGX-0648A series isolators have a compact structure and are easy to install, suitable for application scenarios with limited space. Their unique nonlinear stiffness characteristics provide stable vibration isolation effects under different loads, ensuring equipment reliability in complex working conditions. In addition, the products are corrosion-resistant and capable of withstanding high and low temperatures, adapting to harsh environments, and are widely used in aerospace, marine, communication base stations, and other fields.

Xi'an Hoan Microwave ensures that each isolator meets industry standards through advanced production processes and strict quality control, providing customers with durable vibration control solutions.

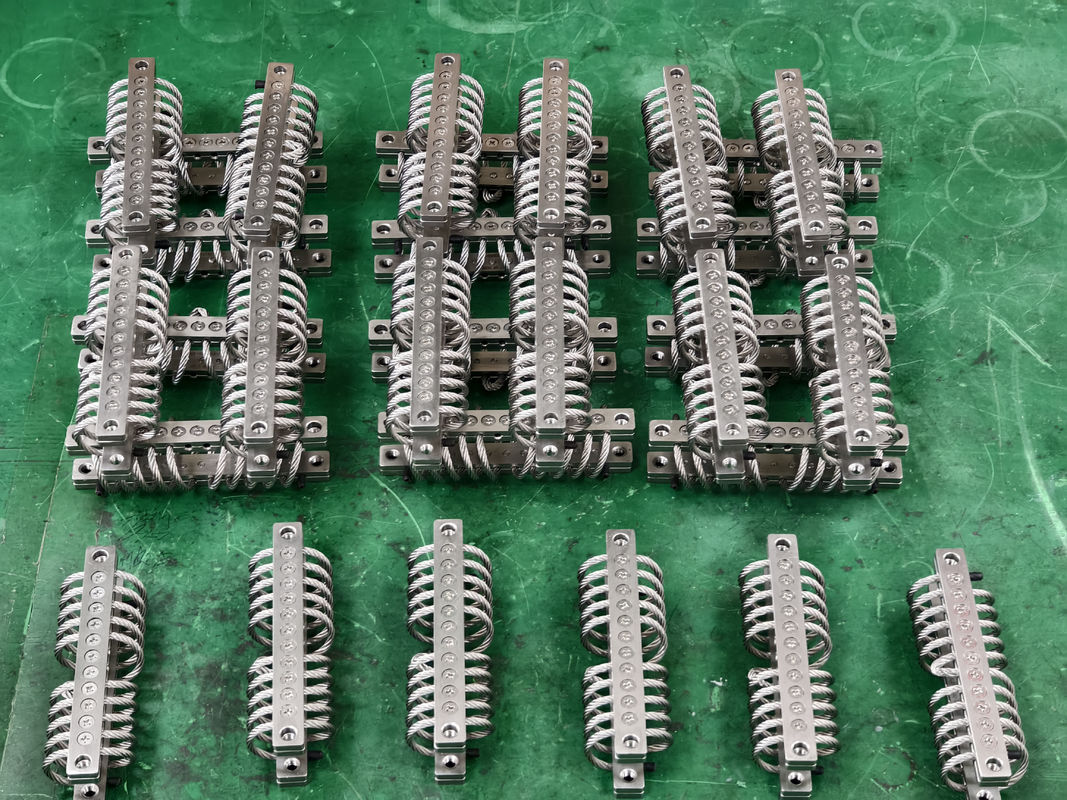

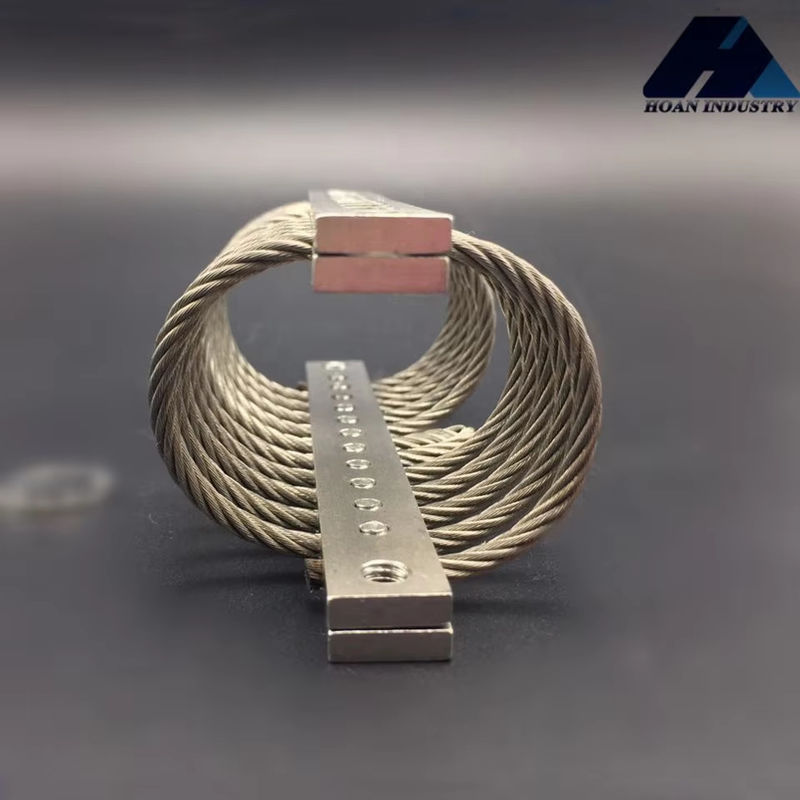

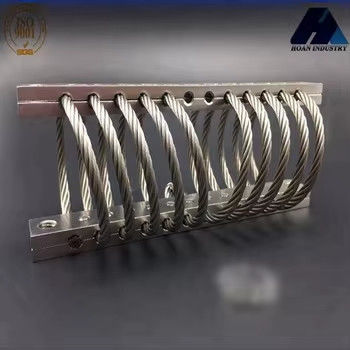

Compact and Easy to Install JGX-0648A-39A Wire Rope Vibration Isolators 0

Mounting Options

Compact and Easy to Install JGX-0648A-39A Wire Rope Vibration Isolators 1

SIZE PARAMETER:

Model	“H”±3.30	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	Csink(℃)
JGX-0648D-79A	48	56	0.456	A,B,C,D,E,S	∅6.9±0.13	M6×1.0	90
JGX-0648D-68A	54	64	0.492
JGX-0648D-56A	59	71	0.516
JGX-0648D-45A	64	80	0.564
JGX-0648D-39A	64	89	0.832
JGX-0648D-36A	67	95	0.864
JGX-0648D-33A	67	100	0.684
JGX-0648D-30A	83	108	0.708

Technical Data Sheet:

Vertical load

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness (KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	79	17.8	382	182
2	JGX-0648D-68A	68	23.9	266	116
3	JGX-0648D-56A	56	29.0	196	79
4	JGX-0648D-45A	45	32.0	151	60
5	JGX-0648D-39A	39	32.0	127	51
6	JGX-0648D-36A	36	35.6	109	42
7	JGX-0648D-33A	33	35.6	100	39
8	JGX-0648D-30A	30	50.8	74	25

45 ° directional load:

Compact and Easy to Install JGX-0648A-39A Wire Rope Vibration Isolators 3

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	56.7	25.9	215	89
2	JGX-0648D-68A	47.7	34.0	151	58
3	JGX-0648D-56A	39.8	39.6	109	40
4	JGX-0648D-45A	32.8	45.7	86	30
5	JGX-0648D-39A	27.9	45.7	72	25
6	JGX-0648D-36A	25.3	50.8	61	21
7	JGX-0648D-33A	23.4	50.8	56	19
8	JGX-0648D-30A	21.3	71.6	41	12

Lateral load:

Compact and Easy to Install JGX-0648A-39A Wire Rope Vibration Isolators 4

Curve number	Model	Maximum static load(N)	Maximum static load(N)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	43.2	18.8	110	110
2	JGX-0648D-68A	36.3	24.9	72	72
3	JGX-0648D-56A	31.7	30.0	49	49
4	JGX-0648D-45A	25.0	34.0	37	37
5	JGX-0648D-39A	22.7	34.0	32	32
6	JGX-0648D-36A	20.4	38.1	25	25
7	JGX-0648D-33A	18.2	38.1	23	23
8	JGX-0648D-30A	15.9	52.8	16	16

* Material of Mounting Bars *

Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;

Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
