Name: JGX-0648A-36A Wire Rope Vibration Isolators The Premier Choice for High-Precision Equipment Protection
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0648A-36A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-0648A-36A Wire Rope Vibration Isolators The Premier Choice for High-Precision Equipment Protection

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0648A-36A

Request A Quote

Product Details

Features:

Anchoring Holes; Oil Resis

Working Temperature:

-55 ~ +120

Overall Width:

50mm

Vibration Isolation Type:

Passive

Isolation Frequency Range:

5Hz To 100Hz

Accessories:

Net

Axial Stiffness:

50N/mm

Wire Rope Material:

Galvanized Steel

Wire Rope Diameter:

6.4 Mm

After Warranty Service:

Online Support

Load Range:

2-4.8KG

Corrosion Resistance:

Yes

Mounting Thread Size:

Installation Orientation:

Vertical Or Horizontal

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

JGX-0648A-30A Wire Rope Vibration Isolator Ultimate Solution for High-Temperature High-Humidity and Salt Spray Environments

Get Best Price

High-Strength and Lightweight JGX-0648A-33A Wire Rope Vibration Isolators for Weight-Sensitive Applications

Get Best Price

JGX-0648A-36A Wire Rope Vibration Isolators The Premier Choice for High-Precision Equipment Protection

Get Best Price

Compact and Easy to Install JGX-0648A-39A Wire Rope Vibration Isolators

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0648A Series

The JGX-0648A series wire rope vibration isolators from Xi'an Hoan Microwave Co., Ltd. have emerged as the premier choice for vibration protection of high-precision equipment, thanks to their military-grade quality. Through a specially designed helical wire rope structure, these isolators achieve multi-directional vibration isolation, effectively reducing the impact of vibrations and shocks during equipment transportation and operation.

Their core advantage lies in high damping characteristics, which rapidly dissipate vibration energy to avoid resonance and ensure equipment stability. The JGX-0648A series also features a wide load range, flexibly meeting the vibration isolation needs of equipment with varying weights. Rigorously tested for fatigue resistance and environmental adaptability, the products maintain exceptional performance even under extreme conditions.

Whether for radar systems, electronic countermeasure equipment, or precision laboratory instruments, the JGX-0648A series provides reliable vibration isolation support, showcasing Xi'an Hoan Microwave's technical prowess in the high-end vibration isolation field.

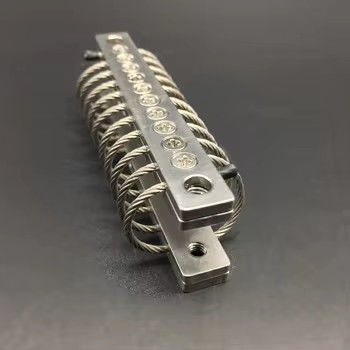

JGX-0648A-36A Wire Rope Vibration Isolators The Premier Choice for High-Precision Equipment Protection 0

Mounting Options

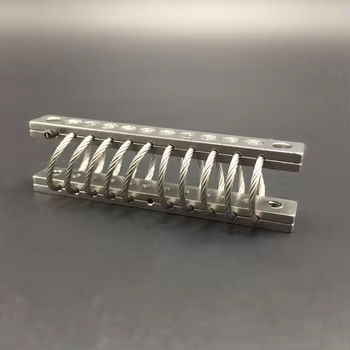

JGX-0648A-36A Wire Rope Vibration Isolators The Premier Choice for High-Precision Equipment Protection 1

SIZE PARAMETER:

Model	“H”±3.30	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	Csink(℃)
JGX-0648D-79A	48	56	0.456	A,B,C,D,E,S	∅6.9±0.13	M6×1.0	90
JGX-0648D-68A	54	64	0.492
JGX-0648D-56A	59	71	0.516
JGX-0648D-45A	64	80	0.564
JGX-0648D-39A	64	89	0.832
JGX-0648D-36A	67	95	0.864
JGX-0648D-33A	67	100	0.684
JGX-0648D-30A	83	108	0.708

Technical Data Sheet:

Vertical load

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness (KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	79	17.8	382	182
2	JGX-0648D-68A	68	23.9	266	116
3	JGX-0648D-56A	56	29.0	196	79
4	JGX-0648D-45A	45	32.0	151	60
5	JGX-0648D-39A	39	32.0	127	51
6	JGX-0648D-36A	36	35.6	109	42
7	JGX-0648D-33A	33	35.6	100	39
8	JGX-0648D-30A	30	50.8	74	25

45 ° directional load:

JGX-0648A-36A Wire Rope Vibration Isolators The Premier Choice for High-Precision Equipment Protection 3

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	56.7	25.9	215	89
2	JGX-0648D-68A	47.7	34.0	151	58
3	JGX-0648D-56A	39.8	39.6	109	40
4	JGX-0648D-45A	32.8	45.7	86	30
5	JGX-0648D-39A	27.9	45.7	72	25
6	JGX-0648D-36A	25.3	50.8	61	21
7	JGX-0648D-33A	23.4	50.8	56	19
8	JGX-0648D-30A	21.3	71.6	41	12

Lateral load:

JGX-0648A-36A Wire Rope Vibration Isolators The Premier Choice for High-Precision Equipment Protection 4

Curve number	Model	Maximum static load(N)	Maximum static load(N)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	43.2	18.8	110	110
2	JGX-0648D-68A	36.3	24.9	72	72
3	JGX-0648D-56A	31.7	30.0	49	49
4	JGX-0648D-45A	25.0	34.0	37	37
5	JGX-0648D-39A	22.7	34.0	32	32
6	JGX-0648D-36A	20.4	38.1	25	25
7	JGX-0648D-33A	18.2	38.1	23	23
8	JGX-0648D-30A	15.9	52.8	16	16

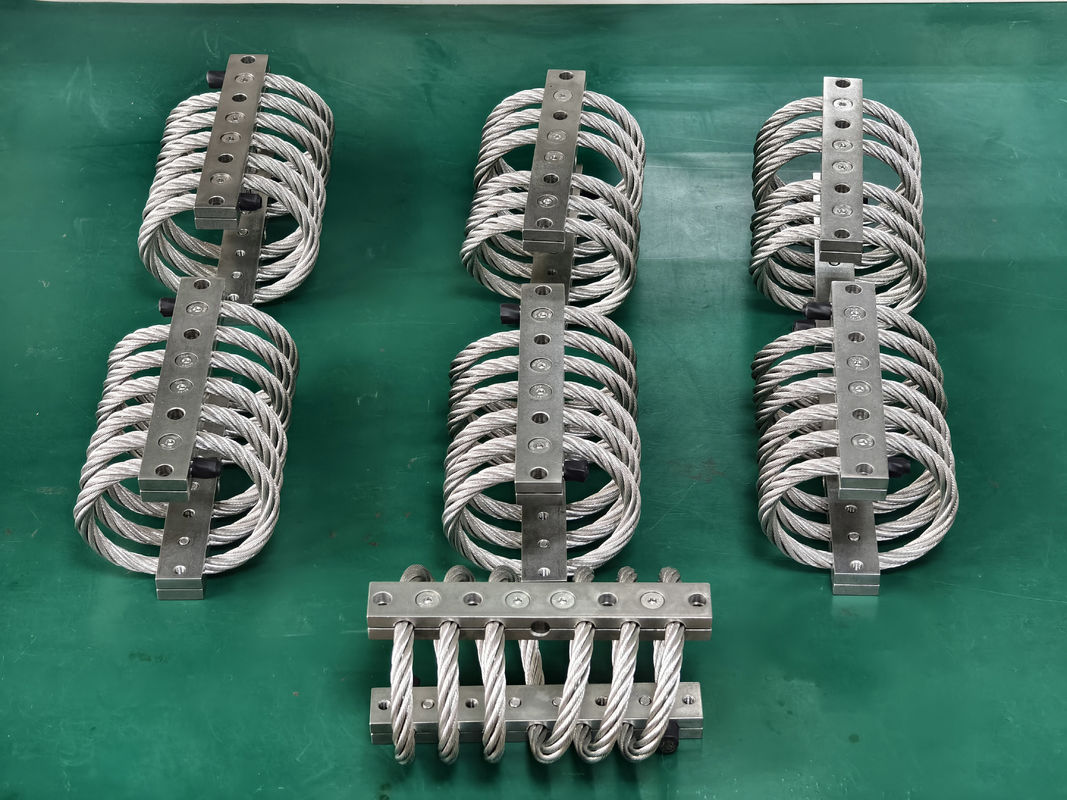

Customer feedback photos
