JGX-0480D-24A Wire Rope Vibration Isolator Excellent Elastic and Damping Characteristics for Vibration Absorption

Brand Name:

Hoan

Request A Quote

JGX-0480D-24A Wire Rope Vibration Isolator Excellent Elastic and Damping Characteristics for Vibration Absorption

Product Details

Wire Rope Length:

79.5mm

Core Components:

Other

Vibration Isolation Range:

0.5 To 10 Hz

Installation:

Wall Mounted

Isolation Frequency:

5Hz

Size:

Customizable

Overall Width:

50mm

Maximum Load Capacity:

100kg

Working Temperature:

-55~120

Length:

12 Inches

Isolation Efficiency:

Up To 90%

Material:

Stainless Steel

Packing:

Standard Packing

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JGX-0648A-30A Wire Rope Vibration Isolator Ultimate Solution for High-Temperature High-Humidity and Salt Spray Environments

Get Best Price

High-Strength and Lightweight JGX-0648A-33A Wire Rope Vibration Isolators for Weight-Sensitive Applications

Get Best Price

JGX-0648A-36A Wire Rope Vibration Isolators The Premier Choice for High-Precision Equipment Protection

Get Best Price

Compact and Easy to Install JGX-0648A-39A Wire Rope Vibration Isolators

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0480 Series

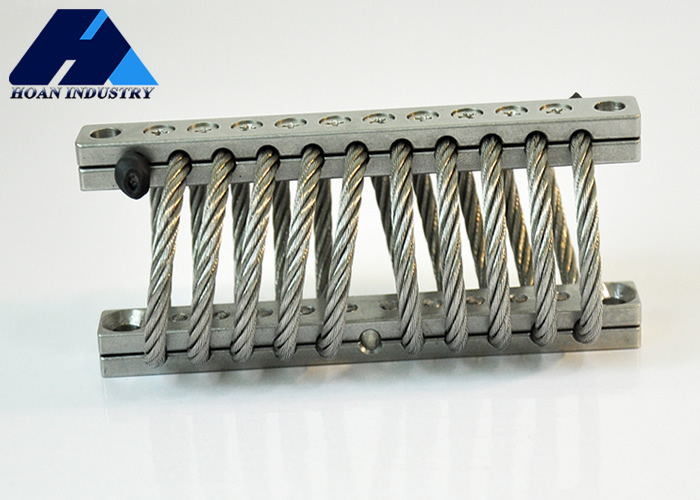

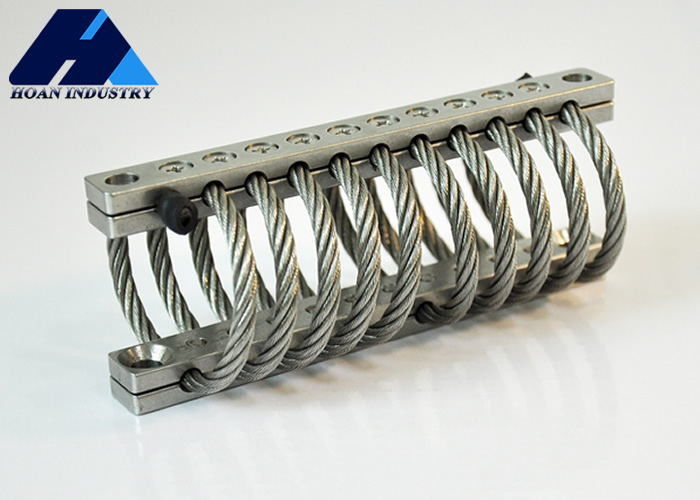

The JGX - 0480D - 24A isolator is a high - performance isolation device, manufactured with advanced technology and high - quality materials. It has excellent elastic and damping characteristics, which can effectively absorb and dissipate vibration energy. Whether it is the impact of seismic waves or other external vibrations, it can significantly reduce the vibration amplitude transmitted to buildings or equipment, thus providing reliable protection. Its unique structural design gives it good stability and durability, and it can adapt to a variety of complex working environments and different types of building structures or equipment. In addition, this isolator is easy to install, without the need for complex construction processes. It can be quickly installed in place, saving installation time and costs. Whether in new construction projects or in the seismic retrofit of existing buildings or equipment, the JGX - 0480D - 24A isolator is an ideal choice, which can provide a solid guarantee for your property and safety.

JGX-0480D-24A Wire Rope Vibration Isolator Excellent Elastic and Damping Characteristics for Vibration Absorption 0

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(vibration) (Knm)	Ks(shock) (Knm)
1	JGX-0480D-75A	75	8.6	578	363
2	JGX-0480D-72A	72	11.7	455	252
3	JGX-0480D-61A	61	13.7	347	189
4	JGX-0480D-59A	59	15.7	301	152
5	JGX-0480D-52A	52	18.8	244	117
6	JGX-0480D-50A	50	20.8	212	96
7	JGX-0480D-37A	37	26.9	136	58
8	JGX-0480D-24A	24	29.5	82	33
9	JGX-0480D-18A	18	36.6	54	21
10	JGX-0480D-12A	12	52.8	29	10

JGX-0480D-24A Wire Rope Vibration Isolator Excellent Elastic and Damping Characteristics for Vibration Absorption 1

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(vibration) (Knm)	Ks(shock) (Knm)
1	JGX-0480D-75A	54.5	12.7	341	179
2	JGX-0480D-72A	52.2	16.8	258	126
3	JGX-0480D-61A	44.1	19.8	197	93
4	JGX-0480D-59A	41.7	22.9	172	75
5	JGX-0480D-52A	38.1	26.9	141	58
6	JGX-0480D-50A	35.7	29	123	49
7	JGX-0480D-37A	26.5	38.1	77	28
8	JGX-0480D-24A	18.1	41.7	49	18
9	JGX-0480D-18A	13.9	51.3	33	11
10	JGX-0480D-12A	9.3	74.7	18	5.3

JGX-0480D-24A Wire Rope Vibration Isolator Excellent Elastic and Damping Characteristics for Vibration Absorption 2

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(vibration) (Knm)	Ks(shock) (Knm)
1	JGX-0480D-75A	36.3	8.6	224	224
2	JGX-0480D-72A	36.3	11.7	156	156
3	JGX-0480D-61A	34.1	14.7	112	112
4	JGX-0480D-59A	31.7	16.8	93	93
5	JGX-0480D-52A	29.5	19.8	70	70
6	JGX-0480D-50A	27.2	21.8	60	60
7	JGX-0480D-37A	20.4	27.9	35	35
8	JGX-0480D-24A	5.9	31.0	11	11
9	JGX-0480D-18A	4.1	39.1	5.3	5.3
10	JGX-0480D-12A	2.2	55.9	2.3	2.3

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
