Name: JGX-0956A-110A High-Performance Wire Rope Vibration Isolators for Industrial Automation Production Lines Shock Protection
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0956A-110A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-0956A-110A High-Performance Wire Rope Vibration Isolators for Industrial Automation Production Lines Shock Protection

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0956A-110A

Request A Quote

Product Details

Load Capacity:

100 Lbs

Applications:

Aerospace, Military, Industrial

Design Style:

Industrial

Packing:

Standard Packing

Isolation Frequency:

5Hz

Length:

6 Inches

Mounting Hole Diameter:

Working Temperatu:

: -55 ~ +120

After Warranty Service:

Online Support

Isolation Frequency Range:

5Hz To 100Hz

Number Of Strands:

Flexible And Durable:

Yes

Marketing Type:

Hot Product 2019

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

JGX-0956A-40A Vibration Isolator Customized Solutions for Specific Vibration and Load Requirements

Get Best Price

JGX-0956A-72A Corrosion and Impact Resistant Wire Rope Vibration Isolator for Extreme Temperatures

Get Best Price

JGX-0956A-75A Wire Rope Vibration Isolator for Aerospace and Military Equipment with Nonlinear Stiffness

Get Best Price

JGX-0956A-80A Wire Rope Vibration Isolator with Customizable Material Structure and Interface

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0956A Series

The JGX-0956 series wire rope vibration isolators developed by Xi'an Hoan Microwave Co., Ltd., backed by military-grade manufacturing standards, have become practical and preferred products in the field of high-precision equipment vibration reduction. The series is formed by precision winding of 304 or 316 stainless steel wire ropes, and the materials undergo spectral analysis to ensure that the nickel-chromium content meets the standards. Their salt spray resistance has been verified through the 96-hour neutral salt spray test in accordance with GB/T 10125, making them suitable for corrosive environments such as marine engineering and plateau communication base stations. The product has a stiffness decay rate of ≤5% in the temperature range of -40°C to 120°C, meeting the environmental adaptability requirements of aerospace equipment.

As a product certified by the ISO9001:2015 quality management system, the JGX-0956 series implements a three-level quality control process in the production process, including wire strength sampling inspection, winding precision optical detection, and finished product three-axial vibration testing. It has been mass-applied in scenarios such as shock protection for sensors in industrial automation production lines and precision platform vibration isolation for medical imaging equipment. Measured data shows that it can reduce the vibration amplitude of equipment by more than 85%, effectively extending the service life of core components.

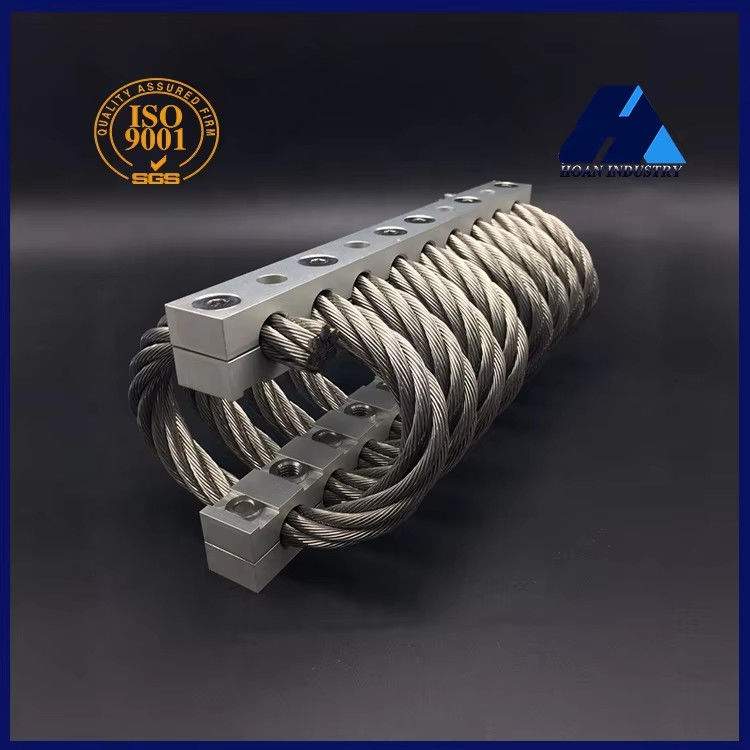

JGX-0956A-110A High-Performance Wire Rope Vibration Isolators for Industrial Automation Production Lines Shock Protection 0

No.	Model	Max Static Load (KG)	Max Deflection (mm)	Kv(vibration) (KN/m)	Ks(shock) (KN/m)
1	JGX-0956A-110A	110	34.0	275	135
2	JGX-0956A-104A	104	37.1	240	114
3	JGX-0956A-108A	80	40.1	180	84
4	JGX-0956A-99A	75	44.7	154	68
5	JGX-0956A-95A	72	49.8	137	60
6	JGX-0956A-54A	40	66.0	65	25
7	JGX-0956A-43A	32	68.1	51	19

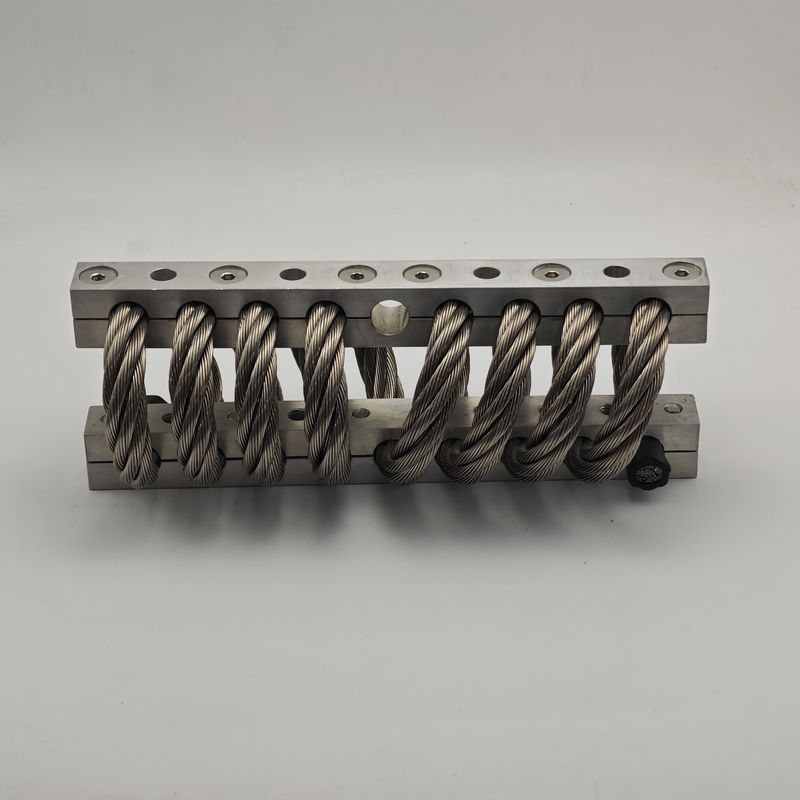

JGX-0956A-110A High-Performance Wire Rope Vibration Isolators for Industrial Automation Production Lines Shock Protection 1

No.	Model	Max Static Load (KG)	Max Deflection (mm)	Kv(vibration) (KN/m)	Ks(shock) (KN/m)
1	JGX-0956A-110A	90.8	47.8	177	77
2	JGX-0956A-104A	84.0	51.8	156	67
3	JGX-0956A-108A	68.1	55.9	120	49
4	JGX-0956A-99A	63.6	63.0	103	40
5	JGX-0956A-95A	61.3	71.1	92	35
6	JGX-0956A-54A	34.8	91.9	44	16
7	JGX-0956A-43A	28.6	95.0	36	12

JGX-0956A-110A High-Performance Wire Rope Vibration Isolators for Industrial Automation Production Lines Shock Protection 2

No.	Model	Max Static Load (KG)	Max Deflection (mm)	Kv(vibration) (KN/m)	Ks(shock) (KN/m)
1	JGX-0956A-110A	70.3	36.1	98	98
2	JGX-0956A-104A	65.8	39.1	84	84
3	JGX-0956A-108A	49.9	42.2	58	58
4	JGX-0956A-99A	47.7	47.2	49	49
5	JGX-0956A-95A	45.4	52.8	44	44
6	JGX-0956A-54A	20.4	68.1	20	20
7	JGX-0956A-43A	15.9	71.1	15	15
