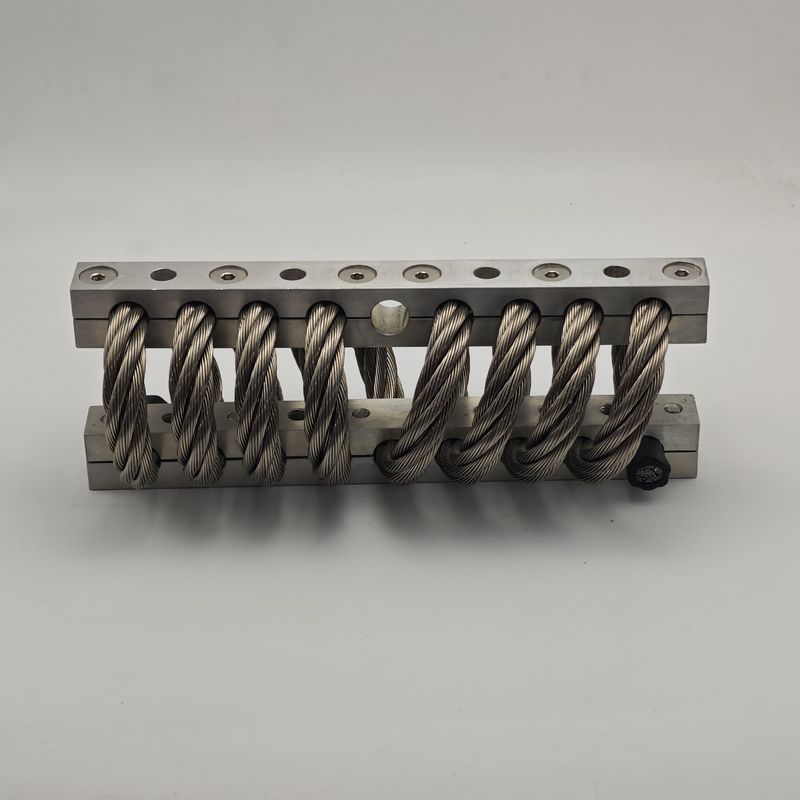

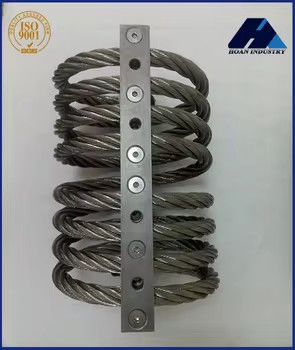

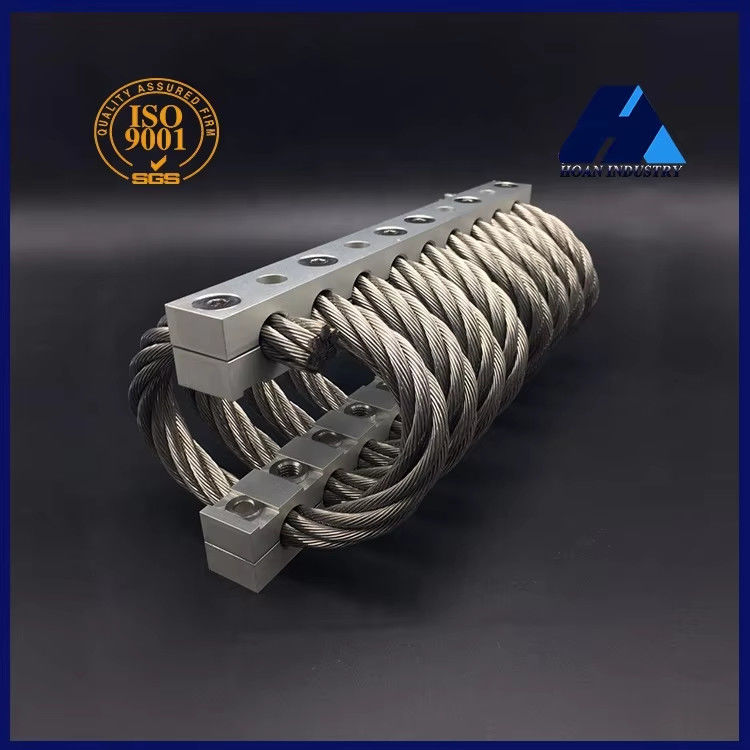

JGX-0956A Series
Xi'an Hoan Microwave has established a full - process customization system for the JGX - 0956 series vibration isolators, covering three core dimensions: material, structure, and interface.
Material customization: It supports the switch between 304 stainless steel (for general corrosive scenarios) and 316 stainless steel (for marine or chloride - containing environments, with the pitting resistance equivalent number increased by 40%). The raw materials are subject to spectral analysis to ensure the compliance of alloy composition.
Structure customization: It provides orthogonal winding (with excellent stiffness stability and a batch deviation of ≤3%) and oblique winding (with an adjustable damping ratio range of 0.12–0.20), which can adapt to different energy dissipation requirements.
Interface customization: M6/M8 threaded holes are standard, and custom flanges can also be made. The geometric tolerance of the interfaces is controlled within ±0.05 mm, being compatible with the installation precision of equipment.
On the production front, the company has deployed five - axis CNC precision winding equipment. The winding pitch accuracy reaches ±0.1 mm, and the closed - loop tension control (±5 N) ensures the mechanical consistency of the wire ropes. Relying on the MES (Manufacturing Execution System), the lead time for customized parts has been shortened to 7 days, which is 50% less than the industry average.
| No. |
Model |
Max Static Load
(KG)
|
Max Deflection
(mm)
|
Kv(vibration)
(KN/m)
|
Ks(shock)
(KN/m)
|
| 1 |
JGX-0956A-110A |
110 |
34.0 |
275 |
135 |
| 2 |
JGX-0956A-104A |
104 |
37.1 |
240 |
114 |
| 3 |
JGX-0956A-108A |
80 |
40.1 |
180 |
84 |
| 4 |
JGX-0956A-99A |
75 |
44.7 |
154 |
68 |
| 5 |
JGX-0956A-95A |
72 |
49.8 |
137 |
60 |
| 6 |
JGX-0956A-54A |
40 |
66.0 |
65 |
25 |
| 7 |
JGX-0956A-43A |
32 |
68.1 |
51 |
19 |
| No. |
Model |
Max Static Load
(KG)
|
Max Deflection
(mm)
|
Kv(vibration)
(KN/m)
|
Ks(shock)
(KN/m)
|
| 1 |
JGX-0956A-110A |
90.8 |
47.8 |
177 |
77 |
| 2 |
JGX-0956A-104A |
84.0 |
51.8 |
156 |
67 |
| 3 |
JGX-0956A-108A |
68.1 |
55.9 |
120 |
49 |
| 4 |
JGX-0956A-99A |
63.6 |
63.0 |
103 |
40 |
| 5 |
JGX-0956A-95A |
61.3 |
71.1 |
92 |
35 |
| 6 |
JGX-0956A-54A |
34.8 |
91.9 |
44 |
16 |
| 7 |
JGX-0956A-43A |
28.6 |
95.0 |
36 |
12 |
| No. |
Model |
Max Static Load
(KG)
|
Max Deflection
(mm)
|
Kv(vibration)
(KN/m)
|
Ks(shock)
(KN/m)
|
| 1 |
JGX-0956A-110A |
70.3 |
36.1 |
98 |
98 |
| 2 |
JGX-0956A-104A |
65.8 |
39.1 |
84 |
84 |
| 3 |
JGX-0956A-108A |
49.9 |
42.2 |
58 |
58 |
| 4 |
JGX-0956A-99A |
47.7 |
47.2 |
49 |
49 |
| 5 |
JGX-0956A-95A |
45.4 |
52.8 |
44 |
44 |
| 6 |
JGX-0956A-54A |
20.4 |
68.1 |
20 |
20 |
| 7 |
JGX-0956A-43A |
15.9 |
71.1 |
15 |
15 |
