Name: JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0958A-138A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments

Corrosion-Resistant Wire Rope Vibration Isolator

Harsh Environments Wire Rope Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-0958A-138A

Request A Quote

Product Details

Wire Rope Construction:

7x19

After Warranty Service:

Online Support

Wire Rope Material:

Galvanized Steel

Isolation Frequency Range:

5Hz To 100Hz

Type:

Noise And Attenuation

Overall Width:

50mm

Operating Temperature:

-40°C To 80°C

Applicable Industries:

Building Material Shops, Energy & Mining

Installation Type:

Horizontal/Vertical

Mounting Thread Size:

Spring Constant:

50N/mm

Construction:

Braided Wire Rope

Function:

Anti Shock

Temperature Range:

-40°F To 200°F

Product Certification:

ISO 9001

Highlight:

Corrosion-Resistant Wire Rope Vibration Isolator

Harsh Environments Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

JGX-0400A-31.5A Wire Rope Vibration Isolator Vertical Mounting for Protecting Your Equipment from Vibration and Shock

Get Best Price

Video

Stainless Steel Wire Rope Vibration Isolator For Aerial And Communication Water-Proof And Durability JGX-0400-31.5A

Get Best Price

JGX-0648D-56A Meticulously Designed Wire Rope Vibration Isolator for Optimal Performance in Various Devices

Get Best Price

JGX-0648A-45A Wire Rope Vibration Isolator Effective Vibration Reduction for Automotive Engines

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-0958A Series

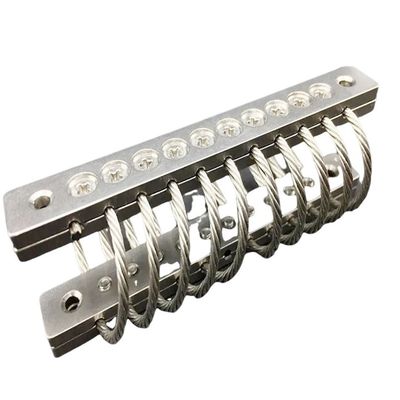

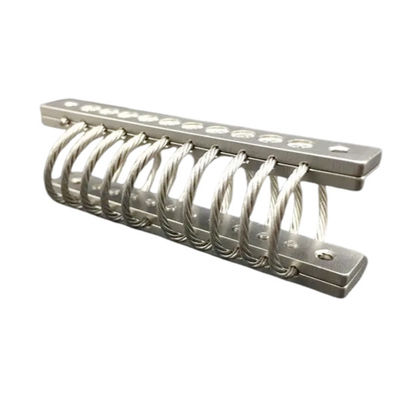

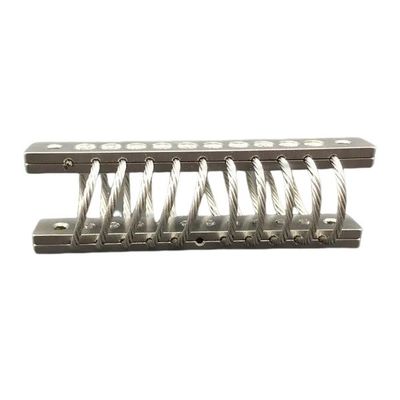

The JGX - 0958A steel wire rope vibration isolator adopts a spiral winding structure of multi - strand stainless steel wire ropes, combining rigidity and elasticity with excellent damping performance. It has a wide operating temperature range (-40℃～+120℃), is corrosion - resistant and aging - resistant, and can adapt to harsh environments such as humidity and salt spray. The static load range of the product is 5～50kg, and the natural frequency is as low as below 10Hz, which can effectively isolate high - frequency vibrations. The unique non - metallic design avoids electromagnetic interference, making it particularly suitable for the vibration isolation protection of precision electronic equipment.

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments 0

Static-Load Curve

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments 1

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	149	34.0	366	179
2	JGX-0958A-138A	138	37.1	320	152
3	JGX-0958A-108A	108	40.1	242	110
4	JGX-0958A-99A	99	44.7	205	91
5	JGX-0958A-95A	95	49.8	182	79
6	JGX-0958A-54A	54	66.0	86	33
7	JGX-0958A-43A	43	68.1	67	26

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments 2

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	120.3	47.8	236	103
2	JGX-0958A-138A	111.2	51.8	208	88
3	JGX-0958A-108A	90.8	55.9	159	65
4	JGX-0958A-99A	84.0	63.0	137	54
5	JGX-0958A-95A	79.4	71.1	123	47
6	JGX-0958A-54A	47.7	91.9	60	21
7	JGX-0958A-43A	38	95	47	16

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments 3

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	93.1	36.1	130	130
2	JGX-0958A-138A	88.5	39.1	112	112
3	JGX-0958A-108A	68.1	42.2	77	77
4	JGX-0958A-99A	63.6	47.2	65	65
5	JGX-0958A-95A	61.3	52.8	60	60
6	JGX-0958A-54A	27.2	68.1	27	27
7	JGX-0958A-43A	20.4	71.7	19	19

* The material of the wire rope splint *

Stainless Steel or Aluminum can be selected

* Surface treatment of aluminum alloy plywood *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
