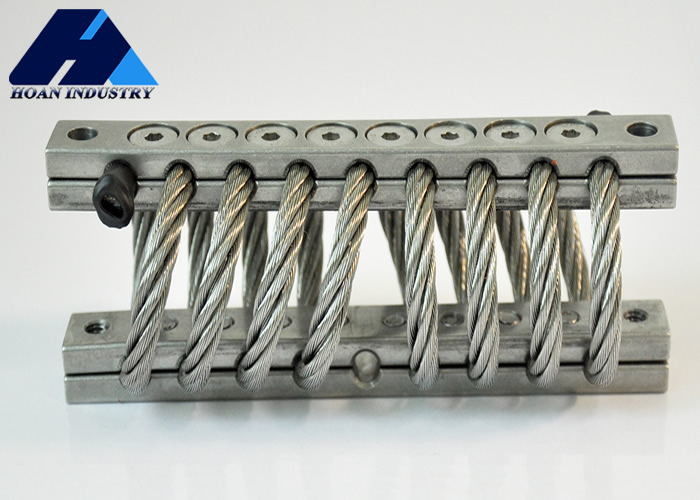

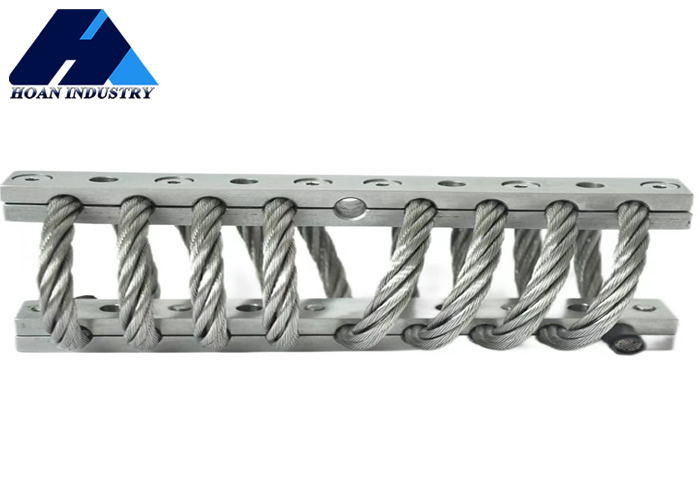

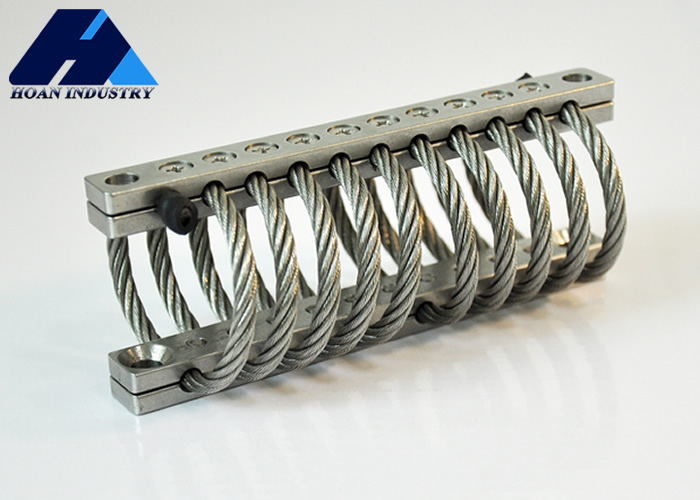

JGX-1276A-278A Three-Dimensional Wire Rope Vibration Isolator for Horizontal Longitudinal and Rotational Vibration Attenuation

JGX-1276 Series

Product Description

Xi'an Hoan Microwave Co., Ltd. JGX-1276 series wire rope vibration isolators are specifically designed for the vibration control needs of high-precision equipment. The product is formed by special stainless steel wire ropes woven by special technology (the specific weaving structure and material composition are the company's patented technologies), forming three-dimensional nonlinear stiffness and damping characteristics, which can simultaneously attenuate the vibration energy in the horizontal, longitudinal and rotational directions. Its core advantage lies in its broadband vibration isolation capability - it has significant isolation efficiency for medium and high frequency vibrations above 20Hz, and at the same time has excellent buffering performance for low-frequency impact energy (such as equipment start-stop and transportation bumps).

The product has a compact structure. The all-metal material ensures stable performance in the temperature range of -55℃ to +150℃, and there is no aging risk. The base and installation interface are optimally designed to support flexible assembly on various electronic cabinets, instrument brackets and equipment bases. After strict environmental adaptability verification (specific test data are internal materials), it can still maintain long-term reliability in humid heat, salt spray and mold environments, and is suitable for vehicle-mounted, shipborne and fixed equipment platforms.

Typical applications: vibration reduction of radar antennas, support of precision optical platforms, shock protection of medical imaging equipment, and protection of high-end industrial instruments.

Specification

FAQ

1.Are you a manufacturer or a trading company?

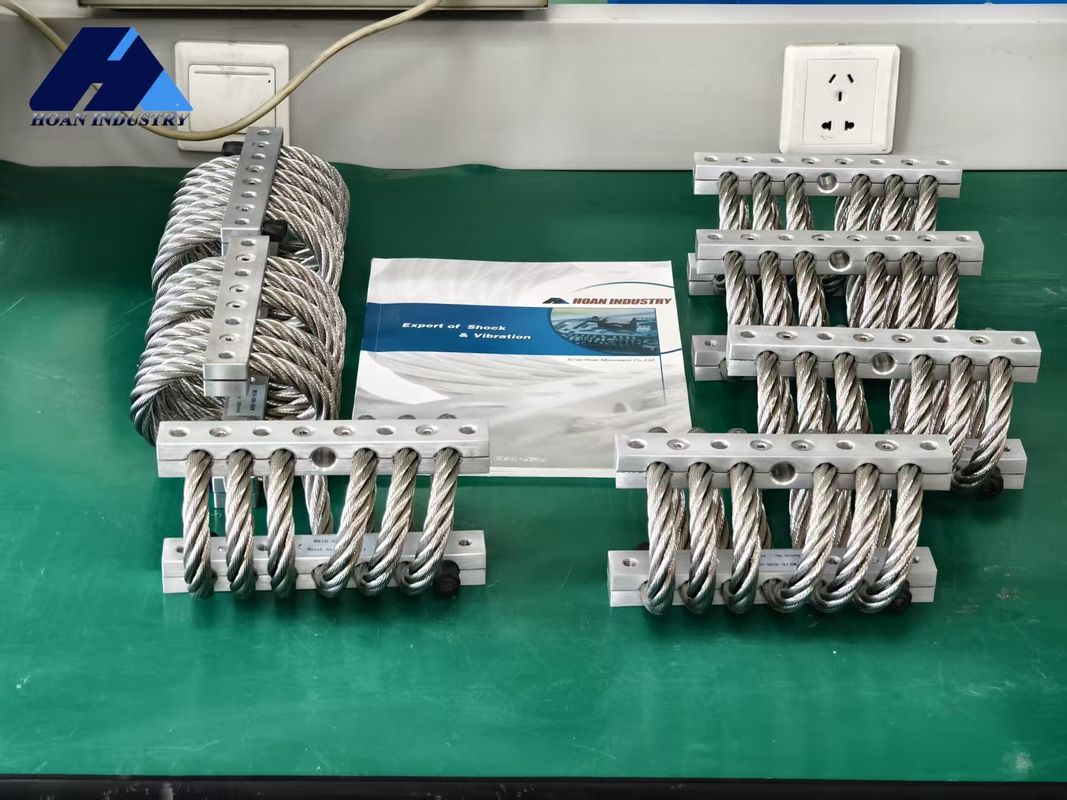

Customer Photo
