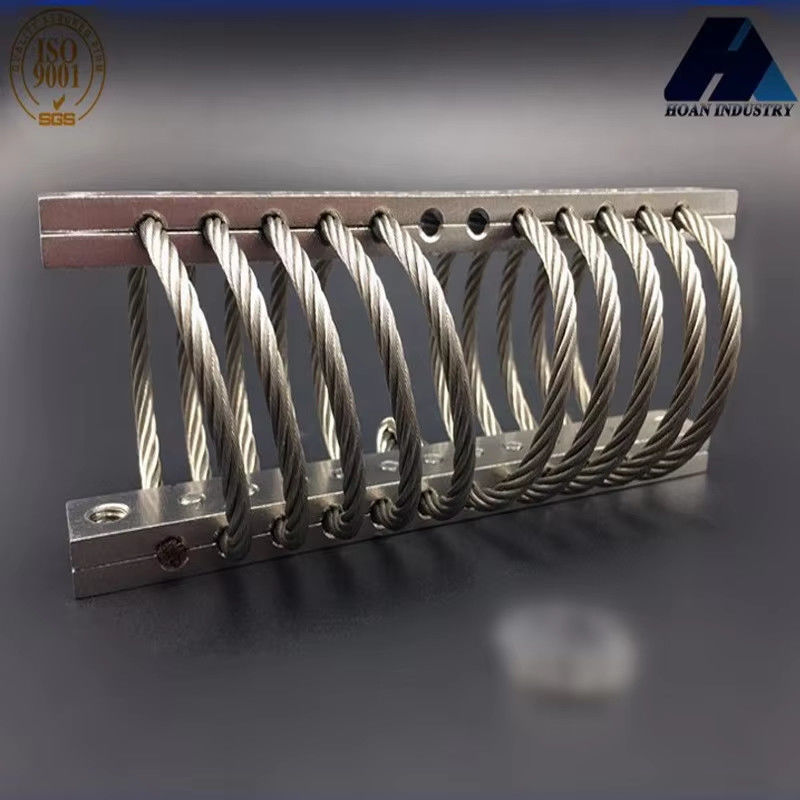

Name: JGX-1276A-220A Wire Rope Vibration Isolator for Industrial Vibration Control Xi an Hoan Microwave
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-1276A-220A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-1276A-220A Wire Rope Vibration Isolator for Industrial Vibration Control Xi an Hoan Microwave

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015 Certificate

Model Number:

JGX-1276A-220A

Request A Quote

Product Details

Characteristic:

Wide Working Frequency, Long Life Span

Material:

Stainless Steel

Machinery Test Report:

Not Available

Manufacturer:

Hoan Company

Mounting Hole Size:

83mm

Compression Ratio:

1:2

Shape:

Circular

Certifications:

ISO 9001

Number Of Strands:

Wire Rope Diameter:

3mm

Vibration Frequency Range:

10Hz To 100Hz

Maximum Deflection:

0.5-1.5 Inches

Mounting Orientation:

Vertical

Number Of Wires:

Payment & Shipping Terms

Minimum Order Quantity

Delivery Time

4,7

Payment Terms

L/C,D/A,T/T,D/P,MoneyGram,Western Union

JGX-1276A-220A Wire Rope Vibration Isolator for Industrial Vibration Control Xi an Hoan Microwave

Get Best Price

JGX-1276A-278A Three-Dimensional Wire Rope Vibration Isolator for Horizontal Longitudinal and Rotational Vibration Attenuation

Get Best Price

Video

Compact and Easy to Install JGX-0648A-39A Wire Rope Vibration Isolators

Get Best Price

Video

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-1276 Series

Product Description

Xi'an Hoan Microwave's JGX-1276 series wire rope vibration isolators have become the preferred solution for numerous industrial vibration control scenarios due to their outstanding stability and reliability. The product series features a scientifically rational structural design, boasting remarkable advantages such as moderate load-bearing capacity, excellent lateral stability, strong impact resistance, and long service life. Its unique nonlinear stiffness characteristics can adapt to complex vibration environments, providing stable vibration isolation effects. It is widely applied in fields such as industrial automation equipment, medical instruments, auxiliary support for optical platforms, and high-end audio equipment. With good product consistency and stable performance, it provides maintenance-free long-term vibration isolation guarantees, effectively improving equipment accuracy and service life.

Specification

JGX-1276A-220A Wire Rope Vibration Isolator for Industrial Vibration Control Xi an Hoan Microwave 0

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1276A-278A	278	32.0	716	352
2	JGX-1276A-233A	233	38.1	531	249
3	JGX-1276A-220A	220	43.2	461	208
4	JGX-1276A-176A	176	48.8	343	147
5	JGX-1276A-149A	149	59.9	256	103
6	JGX-1276A-130A	130	74.7	196	72
7	JGX-1276A-115A	115	85.9	154	54
8	JGX-1276A-92B	92	102.6	111	37

JGX-1276A-220A Wire Rope Vibration Isolator for Industrial Vibration Control Xi an Hoan Microwave 1

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1276A-278A	197.4	44.7	405	177
2	JGX-1276A-233A	165.7	52.8	298	126
3	JGX-1276A-220A	156.6	61.0	263	105
4	JGX-1276A-176A	124.8	68.6	194	74
5	JGX-1276A-149A	106.6	84.8	144	51
6	JGX-1276A-130A	93.1	105.7	110	37
7	JGX-1276A-115A	81.7	121.9	88	28
8	JGX-1276A-92B	63.6	144.8	62	19

JGX-1276A-220A Wire Rope Vibration Isolator for Industrial Vibration Control Xi an Hoan Microwave 2

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1276A-278A	152.0	33.0	221	221
2	JGX-1276A-233A	124.8	40.1	156	156
3	JGX-1276A-220A	115.7	45.2	130	130
4	JGX-1276A-176A	93.1	50.8	91	91
5	JGX-1276A-149A	61.3	56.9	60	60
6	JGX-1276A-130A	45.4	77.7	46	46
7	JGX-1276A-115A	34.1	90.9	33	33
8	JGX-1276A-92B	22.7	107.7	23	23

Product Applications

Applications	Typical Equipment	Protection From	Operational Advantages
Shipboard	Electronics, Computers, Machinery	Explosive blast, Inherent vibration, Storms	Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection
Rough Terrain Vehicles	Instrumentation,Generators, Electronics	Rough terrain, Poor road conditions, Collision	Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation
Aircraft	Electronics, Computer	High-G maneuvering, Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Shipping Containers	Optics,Instruments,Missiles, Electronics	Transit, Handling drop, Loading/Unloading	Long life, Maintenance-free, Exposure to moisture, Repeated use
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free, Corrosive environments
Ordnance Equipment	Missile launchers, Tank artillery, Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers, Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments

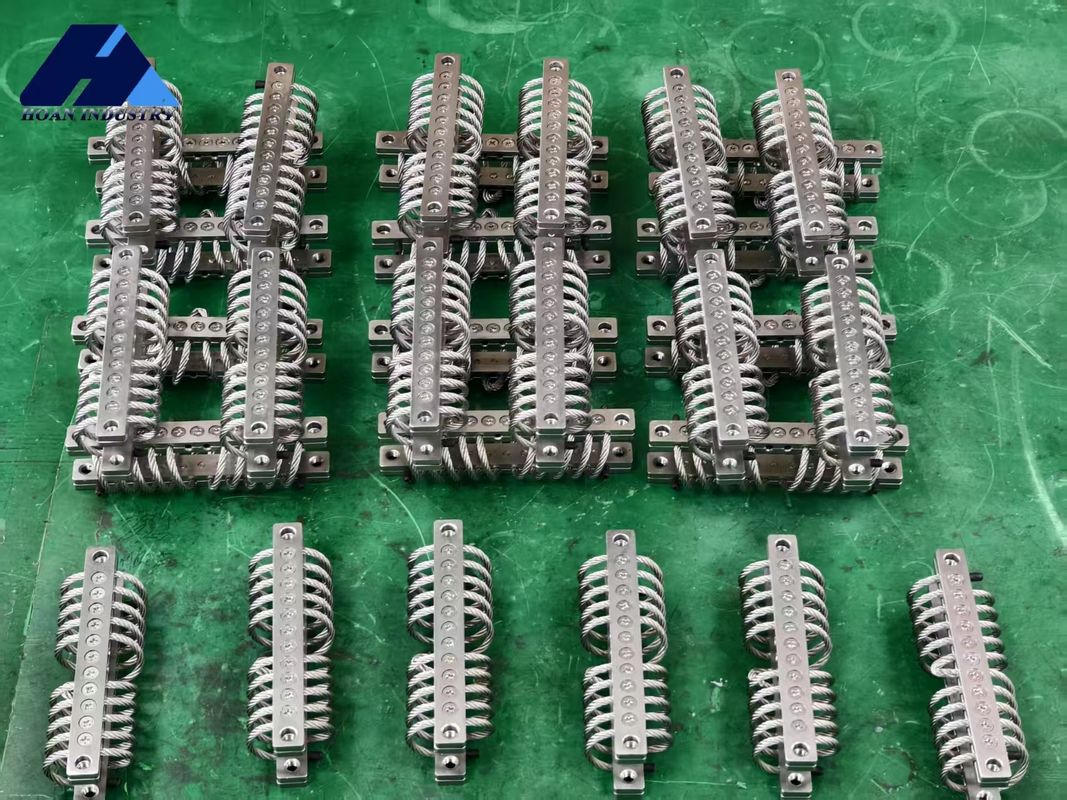

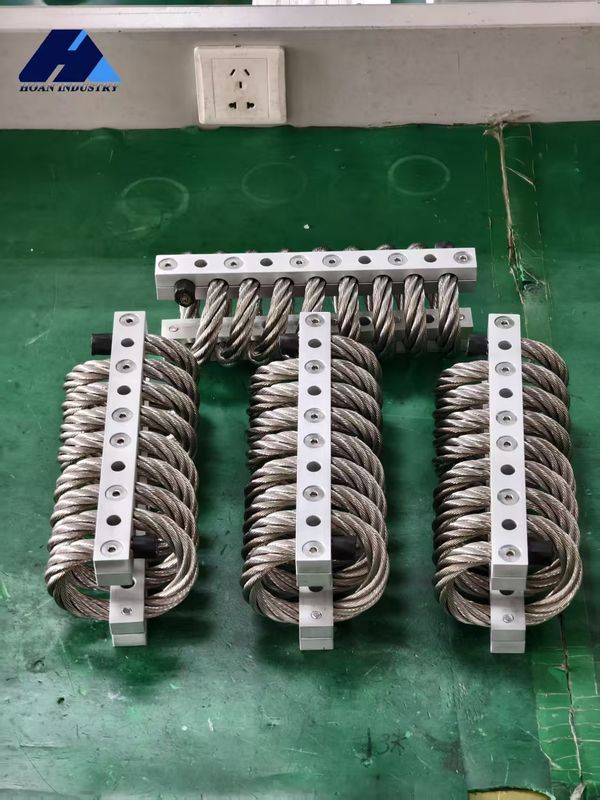

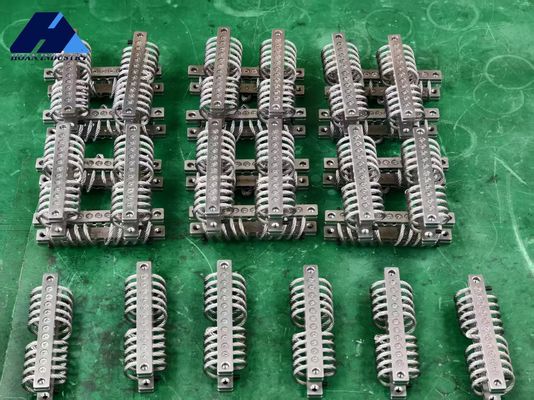

Customer Photo
