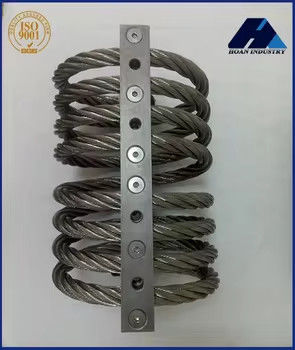

Name: Hoan Microwave JGX-1276A-233A Salt Spray and Corrosion Resistant Wire Rope Vibration Isolators for Extreme Environments
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-1276A-233A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

Hoan Microwave JGX-1276A-233A Salt Spray and Corrosion Resistant Wire Rope Vibration Isolators for Extreme Environments

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015 Certificate

Model Number:

JGX-1276A-233A

Request A Quote

Product Details

Design Style:

Industrial

Maximum Load Capacity:

233kg

Maintenance:

Low

Model:

JGX-1278D-370B

Product Shock Absorption:

Depends On Size And Material

Isolation Efficiency:

95%

Height:

83mm

Mounting Hole Size:

8mm

Spring Constant:

50N/mm

Construction:

Braided Wire Rope

Size:

Custom Size

Vibration Frequency:

10-100Hz

Product Keywords:

Wire Vibration Damper

Vibration Isolation Type:

Wire Rope

Natural Frequency:

10 Hz

Payment & Shipping Terms

Minimum Order Quantity

Delivery Time

4，7

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JGX-1276A-220A Wire Rope Vibration Isolator for Industrial Vibration Control Xi an Hoan Microwave

Get Best Price

JGX-1276A-278A Three-Dimensional Wire Rope Vibration Isolator for Horizontal Longitudinal and Rotational Vibration Attenuation

Get Best Price

Video

Compact and Easy to Install JGX-0648A-39A Wire Rope Vibration Isolators

Get Best Price

Video

JGX-0958A-138A Wire Rope Vibration Isolator With Wide Temperature Range And Corrosion-Resistant Design For Harsh Environments

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-1276 Series

Product Description

For the strict environmental adaptability requirements of vibration isolators in military, aerospace and special industrial fields, Hoan Microwave's JGX - 1276 series has demonstrated excellent performance. The series of vibration isolators not only has excellent mechanical vibration isolation characteristics, but also performs outstandingly in environmental resistance. Its main materials and special surface treatment processes endow it with strong salt spray resistance, corrosion resistance, high and low temperature cycle resistance and aging resistance. Even in extreme harsh environments such as damp heat, salt spray and wide temperature range, it can maintain stable vibration isolation performance and structural integrity for a long time, ensuring the long - term reliable operation of equipment, and is an ideal choice for military - grade applications.

Specification

Hoan Microwave JGX-1276A-233A Salt Spray and Corrosion Resistant Wire Rope Vibration Isolators for Extreme Environments 0

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1276A-278A	278	32.0	716	352
2	JGX-1276A-233A	233	38.1	531	249
3	JGX-1276A-220A	220	43.2	461	208
4	JGX-1276A-176A	176	48.8	343	147
5	JGX-1276A-149A	149	59.9	256	103
6	JGX-1276A-130A	130	74.7	196	72
7	JGX-1276A-115A	115	85.9	154	54
8	JGX-1276A-92B	92	102.6	111	37

Hoan Microwave JGX-1276A-233A Salt Spray and Corrosion Resistant Wire Rope Vibration Isolators for Extreme Environments 1

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1276A-278A	197.4	44.7	405	177
2	JGX-1276A-233A	165.7	52.8	298	126
3	JGX-1276A-220A	156.6	61.0	263	105
4	JGX-1276A-176A	124.8	68.6	194	74
5	JGX-1276A-149A	106.6	84.8	144	51
6	JGX-1276A-130A	93.1	105.7	110	37
7	JGX-1276A-115A	81.7	121.9	88	28
8	JGX-1276A-92B	63.6	144.8	62	19

Hoan Microwave JGX-1276A-233A Salt Spray and Corrosion Resistant Wire Rope Vibration Isolators for Extreme Environments 2

No.	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1276A-278A	152.0	33.0	221	221
2	JGX-1276A-233A	124.8	40.1	156	156
3	JGX-1276A-220A	115.7	45.2	130	130
4	JGX-1276A-176A	93.1	50.8	91	91
5	JGX-1276A-149A	61.3	56.9	60	60
6	JGX-1276A-130A	45.4	77.7	46	46
7	JGX-1276A-115A	34.1	90.9	33	33
8	JGX-1276A-92B	22.7	107.7	23	23

Product Applications

Applications	Typical Equipment	Protection From	Operational Advantages
Shipboard	Electronics, Computers, Machinery	Explosive blast, Inherent vibration, Storms	Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection
Rough Terrain Vehicles	Instrumentation,Generators, Electronics	Rough terrain, Poor road conditions, Collision	Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation
Aircraft	Electronics, Computer	High-G maneuvering, Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Shipping Containers	Optics,Instruments,Missiles, Electronics	Transit, Handling drop, Loading/Unloading	Long life, Maintenance-free, Exposure to moisture, Repeated use
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free, Corrosive environments
Ordnance Equipment	Missile launchers, Tank artillery, Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers, Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments

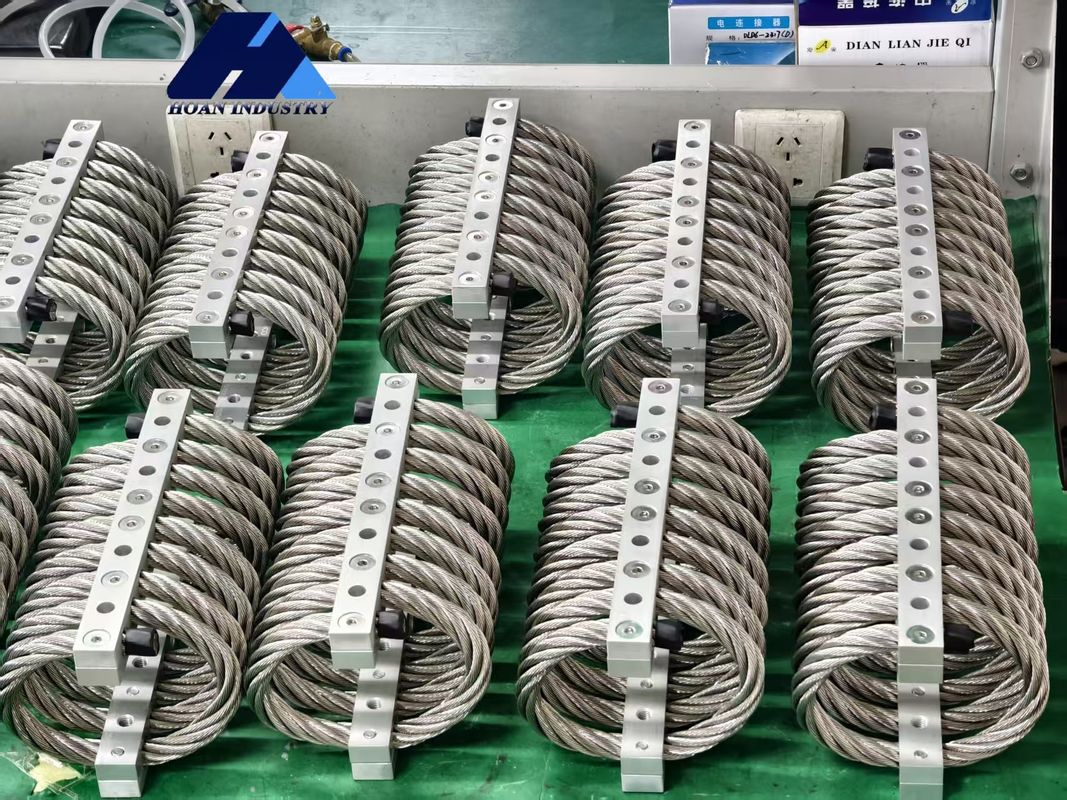

Customer Photo
