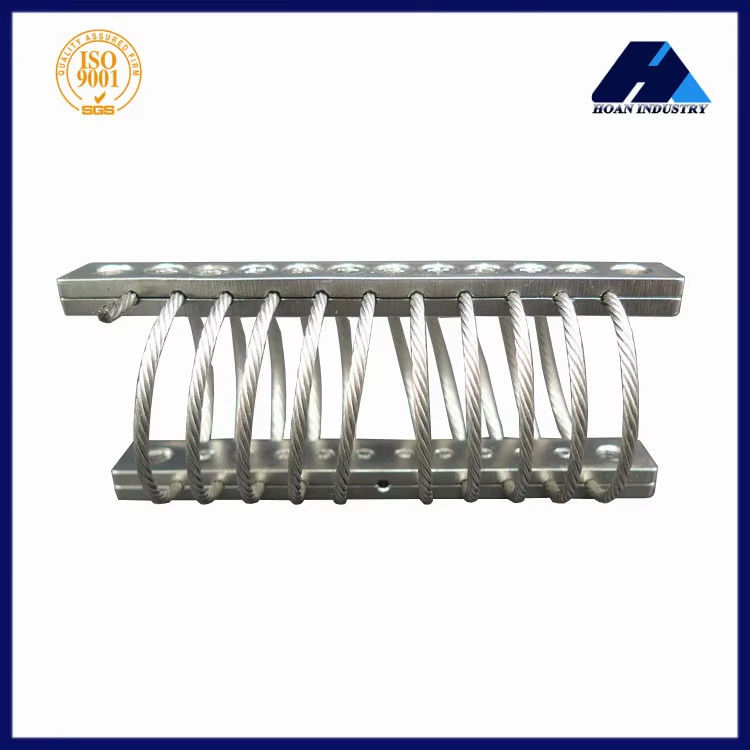

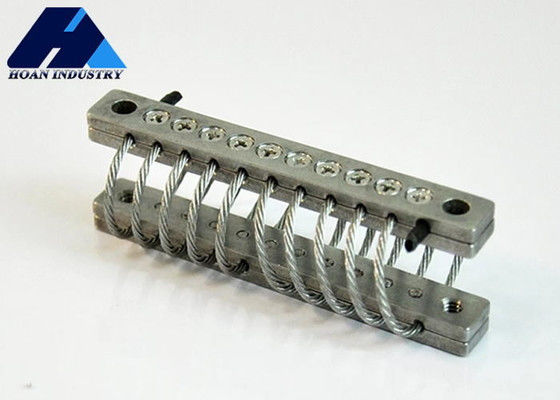

JGX-1276 Series
Product Description
The key value of the JGX-1276 series lies in its stability and durability under extreme environments. The main body of the product is made of high-grade corrosion-resistant stainless steel, and the wire ropes and structural components undergo special surface treatment processes, ensuring long-term use without performance degradation or failure in harsh environments such as salt spray, damp heat, and mold. Its sealed design effectively prevents dust and impurities from invading the internal structure.
This series of isolators inherently feature fire resistance, non-magnetism, and non-aging properties, requiring no maintenance and boasting a long service life. With a compact structure and lightweight design, they can be easily integrated into various equipment bases or bracket systems. The product has passed rigorous tests and verifications for vibration resistance, impact resistance, and environmental adaptability.
Static-Load Curve
| No. |
Model |
Max Static Load
(kg)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/m)
|
Ks(Shock)
(KN/m)
|
| 1 |
JGX-1276A-278A |
278 |
32.0 |
716 |
352 |
| 2 |
JGX-1276A-233A |
233 |
38.1 |
531 |
249 |
| 3 |
JGX-1276A-220A |
220 |
43.2 |
461 |
208 |
| 4 |
JGX-1276A-176A |
176 |
48.8 |
343 |
147 |
| 5 |
JGX-1276A-149A |
149 |
59.9 |
256 |
103 |
| 6 |
JGX-1276A-130A |
130 |
74.7 |
196 |
72 |
| 7 |
JGX-1276A-115A |
115 |
85.9 |
154 |
54 |
| 8 |
JGX-1276A-92A |
92 |
102.6 |
111 |
37 |
| No. |
Model |
Max Static Load
(kg)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/m)
|
Ks(Shock)
(KN/m)
|
| 1 |
JGX-1276A-278A |
197.4 |
44.7 |
405 |
177 |
| 2 |
JGX-1276A-233A |
165.7 |
52.8 |
298 |
126 |
| 3 |
JGX-1276A-220A |
156.6 |
61.0 |
263 |
105 |
| 4 |
JGX-1276A-176A |
124.8 |
68.6 |
194 |
74 |
| 5 |
JGX-1276A-149A |
106.6 |
84.8 |
144 |
51 |
| 6 |
JGX-1276A-130A |
93.1 |
105.7 |
110 |
37 |
| 7 |
JGX-1276A-115A |
81.7 |
121.9 |
88 |
28 |
| 8 |
JGX-1276A-92A |
63.6 |
144.8 |
62 |
19 |
| No. |
Model |
Max Static Load
(kg)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/m)
|
Ks(Shock)
(KN/m)
|
| 1 |
JGX-1276A-278A |
152.0 |
33.0 |
221 |
221 |
| 2 |
JGX-1276A-233A |
124.8 |
40.1 |
156 |
156 |
| 3 |
JGX-1276A-220A |
115.7 |
45.2 |
130 |
130 |
| 4 |
JGX-1276A-176A |
93.1 |
50.8 |
91 |
91 |
| 5 |
JGX-1276A-149A |
61.3 |
56.9 |
60 |
60 |
| 6 |
JGX-1276A-130A |
45.4 |
77.7 |
46 |
46 |
| 7 |
JGX-1276A-115A |
34.1 |
90.9 |
33 |
33 |
| 8 |
JGX-1276A-92A |
22.7 |
107.7 |
23 |
23 |
Product Applications
| Applications |
Typical Equipment |
Protection From |
Operational Advantages |
| Shipboard |
Electronics, Computers,
Machinery
|
Explosive blast,Inherent vibration, Storms |
Long life, Maintenance-free,Temperature extremes,Corrosion resistance,All axes protection |
| Rough Terrain Vehicles |
Instrumentation,Generators,
Electronics
|
Rough terrain,Poor road conditions,Collision |
Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation |
| Aircraft |
Electronics, Computers |
High-G maneuvering,Hard landings, Turbulent air |
Temperature and altitude extremes, Lightweight |
| Shipping Containers |
Optics,Instruments,Missiles, Electronics |
Transit, Handling drop,Loading/Unloading |
Long life, Maintenance-free,Exposure to moisture, Repeated use |
| Industrial Equipment |
Centrifuge, Dryers, Pumps |
Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness |
Long life, Maintenance-free,Corrosive environments |
| Ordnance Equipment |
Missile launchers, Tank artillery, Computer controls, Electronics |
Rough terrain, Railroad humping, Transit |
Maintenance-free, Temperature extremes, Nearby blast |
| Medical Equipment |
Mechanical equipment necessary for patient care |
Vibration from moving parts, Mobile carts-Transport shock |
Maintenance-free, No out gassing, Can be sterilized |
| Chimneys |
Chimneys, Scrubbers,Measuring devices |
Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. |
Maintenance-free, Temperature extremes, Corrosive environments |

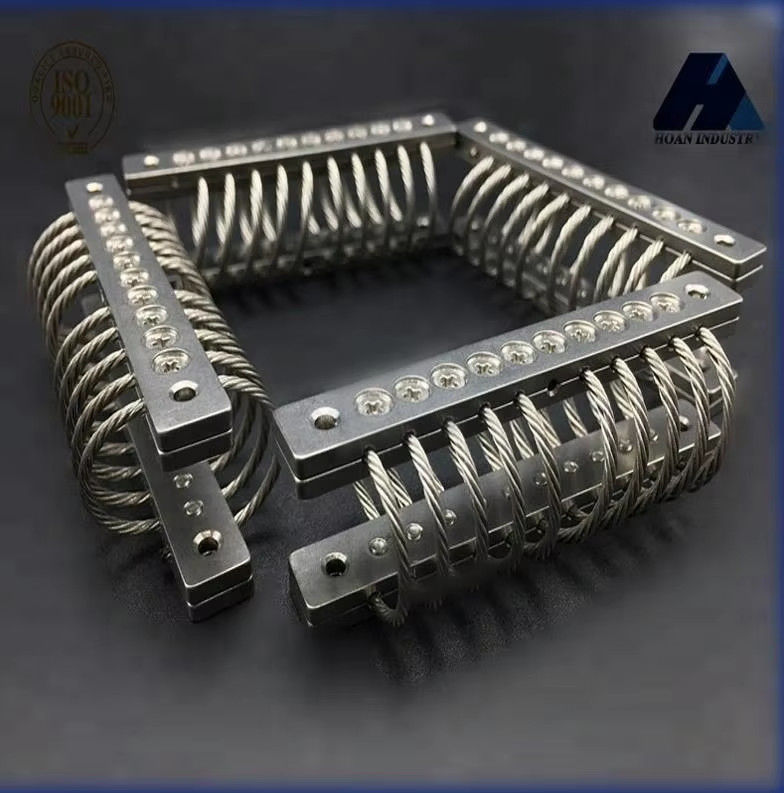

Customer Photos
