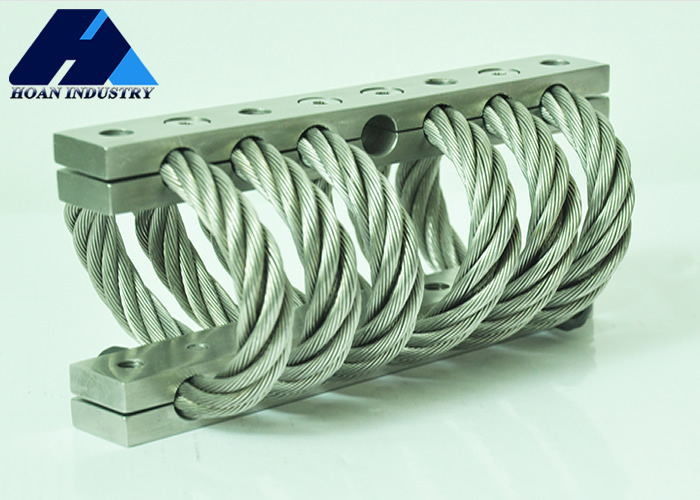

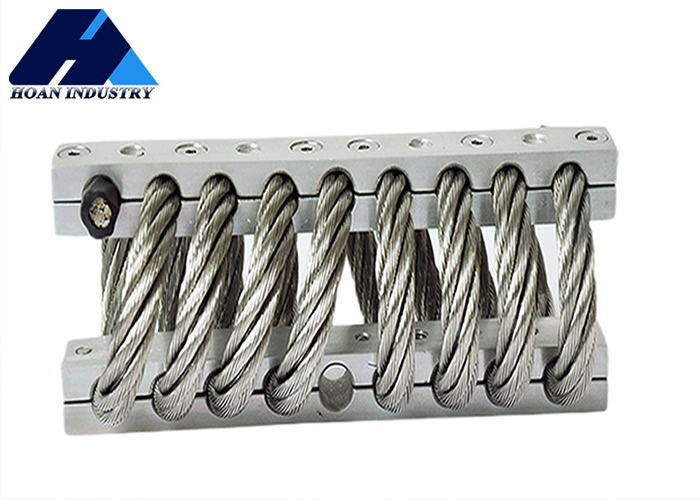

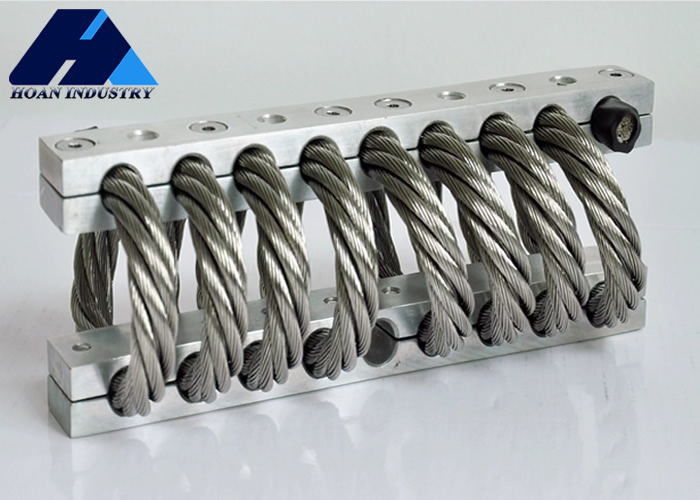

JGX-1276A-149A Wire Rope Vibration Isolator Nonlinear Stiffness and High Damping for Effective Vibration Control

JGX-1276 Series

Product Description

The core advantage of the JGX-1276 series lies in the perfect combination of wide-frequency high-efficiency vibration isolation and excellent impact resistance. Thanks to the unique nonlinear stiffness and high damping characteristics of wire rope isolators, this series of products can significantly reduce vibration transmissibility in the wide frequency range from 5Hz to 500Hz, especially in the 10Hz to 100Hz low-frequency band that troubles many devices (such as vibrations from the equipment's own operation and environmental transmission). The typical isolation efficiency is over 90% for frequencies above 20Hz.

Meanwhile, its unique energy dissipation mechanism endows it with outstanding impact resistance, capable of withstanding impact loads up to 20g (11ms half-sine wave), effectively protecting equipment from transient impact damage caused by transportation, operation or accidental drops. Its performance is stable and has been verified through rigorous environmental tests (such as salt spray and damp heat tests) to ensure long-term reliable service.

Static-Load Curve

Product material

* Splint material *

Stainless Steel or Aluminum can be selected

* Surface treatment of aluminum alloy plywood *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;

* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

* No creep or ageing.

* High internal damping.

* Very wide temperature range.

* Wide variety of possible fittings.

* Rapid and economical prototyping.

* Extremely rugged construction and long lifespan.

* Excellent combined shock and vibration isolation.

* Not affected by chemical agents, seawater, ozone, UV rays

Customer Photos

FAQ

1.Q:Are you a manufacturer or a trading company?

   A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process. This allows us to offer competitive pricing and customized solutions directly to our clients.

2.Q:Can you customize products for us?

   A:Yes, we have the capability to customize our products to meet your specific needs. Please contact us with your requirements, and our team will work with you to create a tailored solution that fits your preferences.

3.Q:What is the lead time?

   A:Sample will usually take 2 to 5 days.For the mass production,it will estimated take 7 to 20 day, Faster delivery when our factory has stock.

4.Q:Can I get some samples before place order and how long for a sample?

   A:Yes, sample order is accepted

5.Q:How is your shipping?

   A:1)worldwide shipping service available

      2)please contact before order as shipping cost varies time to time.

6.Q:Do you offer discounts for bulk orders?

   A:Yes, we offer discounts for bulk orders. The discount percentage may vary depending on the order quantity.
