JGX-1276 Series
Product Description

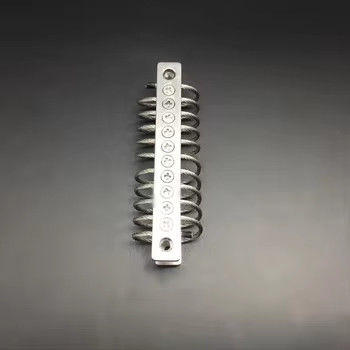

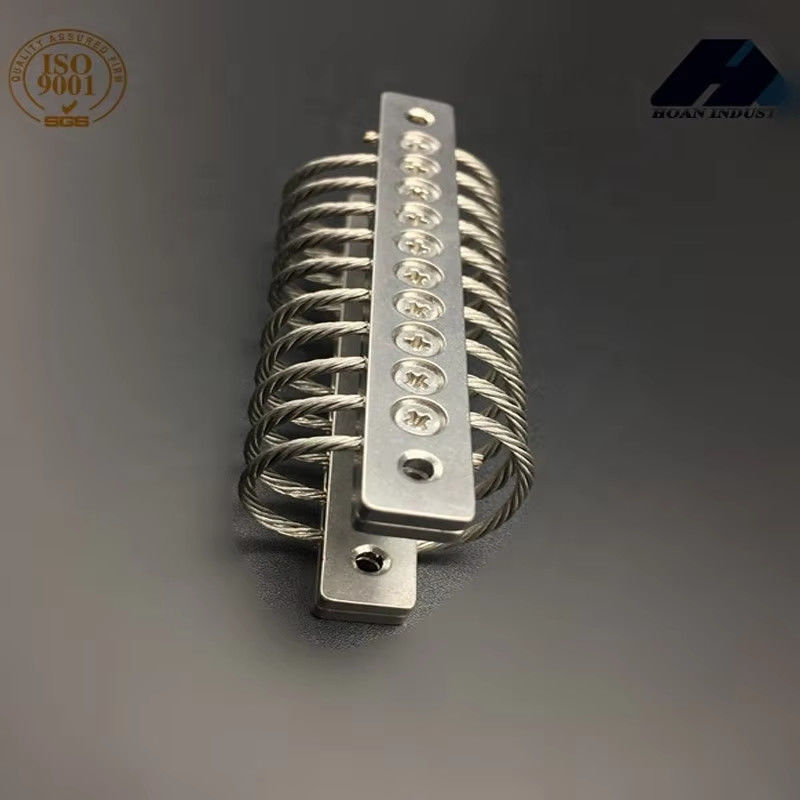

Xi'an Hoan Microwave Co., Ltd.'s JGX-1276 series wire rope isolators are specially designed to protect high-value precision instruments and equipment from vibration and impact. This series adopts multi-strand special stainless steel wire ropes, which are spirally wound into shape according to a specific configuration, forming nonlinear stiffness characteristics and possessing excellent vibration isolation, buffering and impact resistance capabilities.
Its typical rated load range is 92kg to 278kg (per unit), and it can be flexibly selected and configured according to the weight of the equipment. It has a wide working temperature range (-55℃ to +150℃), adapting to harsh environments. It provides effective vibration isolation in the wide frequency band from 5Hz to 500Hz, and is particularly good at suppressing the transmission of medium and low-frequency vibration energy from 10Hz to 100Hz.
It is widely used in fields with high requirements for vibration isolation stability, such as shipborne electronic equipment, airborne radar, precision optical platforms, and medical imaging equipment.
Static-Load Curve
| No. |
Model |
Max Static Load
(kg)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/m)
|
Ks(Shock)
(KN/m)
|
| 1 |
JGX-1276A-278A |
278 |
32.0 |
716 |
352 |
| 2 |
JGX-1276A-233A |
233 |
38.1 |
531 |
249 |
| 3 |
JGX-1276A-220A |
220 |
43.2 |
461 |
208 |
| 4 |
JGX-1276A-176A |
176 |
48.8 |
343 |
147 |
| 5 |
JGX-1276A-149A |
149 |
59.9 |
256 |
103 |
| 6 |
JGX-1276A-130A |
130 |
74.7 |
196 |
72 |
| 7 |
JGX-1276A-115A |
115 |
85.9 |
154 |
54 |
| 8 |
JGX-1276A-92A |
92 |
102.6 |
111 |
37 |
| No. |
Model |
Max Static Load
(kg)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/m)
|
Ks(Shock)
(KN/m)
|
| 1 |
JGX-1276A-278A |
197.4 |
44.7 |
405 |
177 |
| 2 |
JGX-1276A-233A |
165.7 |
52.8 |
298 |
126 |
| 3 |
JGX-1276A-220A |
156.6 |
61.0 |
263 |
105 |
| 4 |
JGX-1276A-176A |
124.8 |
68.6 |
194 |
74 |
| 5 |
JGX-1276A-149A |
106.6 |
84.8 |
144 |
51 |
| 6 |
JGX-1276A-130A |
93.1 |
105.7 |
110 |
37 |
| 7 |
JGX-1276A-115A |
81.7 |
121.9 |
88 |
28 |
| 8 |
JGX-1276A-92A |
63.6 |
144.8 |
62 |
19 |
| No. |
Model |
Max Static Load
(kg)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/m)
|
Ks(Shock)
(KN/m)
|
| 1 |
JGX-1276A-278A |
152.0 |
33.0 |
221 |
221 |
| 2 |
JGX-1276A-233A |
124.8 |
40.1 |
156 |
156 |
| 3 |
JGX-1276A-220A |
115.7 |
45.2 |
130 |
130 |
| 4 |
JGX-1276A-176A |
93.1 |
50.8 |
91 |
91 |
| 5 |
JGX-1276A-149A |
61.3 |
56.9 |
60 |
60 |
| 6 |
JGX-1276A-130A |
45.4 |
77.7 |
46 |
46 |
| 7 |
JGX-1276A-115A |
34.1 |
90.9 |
33 |
33 |
| 8 |
JGX-1276A-92A |
22.7 |
107.7 |
23 |
23 |
Product Applications
| Applications |
Typical Equipment |
Protection From |
Operational Advantages |
| Shipboard |
Electronics, Computers,
Machinery
|
Explosive blast,Inherent vibration, Storms |
Long life, Maintenance-free,Temperature extremes,Corrosion resistance,All axes protection |
| Rough Terrain Vehicles |
Instrumentation,Generators,
Electronics
|
Rough terrain,Poor road conditions,Collision |
Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation |
| Aircraft |
Electronics, Computers |
High-G maneuvering,Hard landings, Turbulent air |
Temperature and altitude extremes, Lightweight |
| Shipping Containers |
Optics,Instruments,Missiles, Electronics |
Transit, Handling drop,Loading/Unloading |
Long life, Maintenance-free,Exposure to moisture, Repeated use |
| Industrial Equipment |
Centrifuge, Dryers, Pumps |
Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness |
Long life, Maintenance-free,Corrosive environments |
| Ordnance Equipment |
Missile launchers, Tank artillery, Computer controls, Electronics |
Rough terrain, Railroad humping, Transit |
Maintenance-free, Temperature extremes, Nearby blast |
| Medical Equipment |
Mechanical equipment necessary for patient care |
Vibration from moving parts, Mobile carts-Transport shock |
Maintenance-free, No out gassing, Can be sterilized |
| Chimneys |
Chimneys, Scrubbers,Measuring devices |
Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. |
Maintenance-free, Temperature extremes, Corrosive environments |

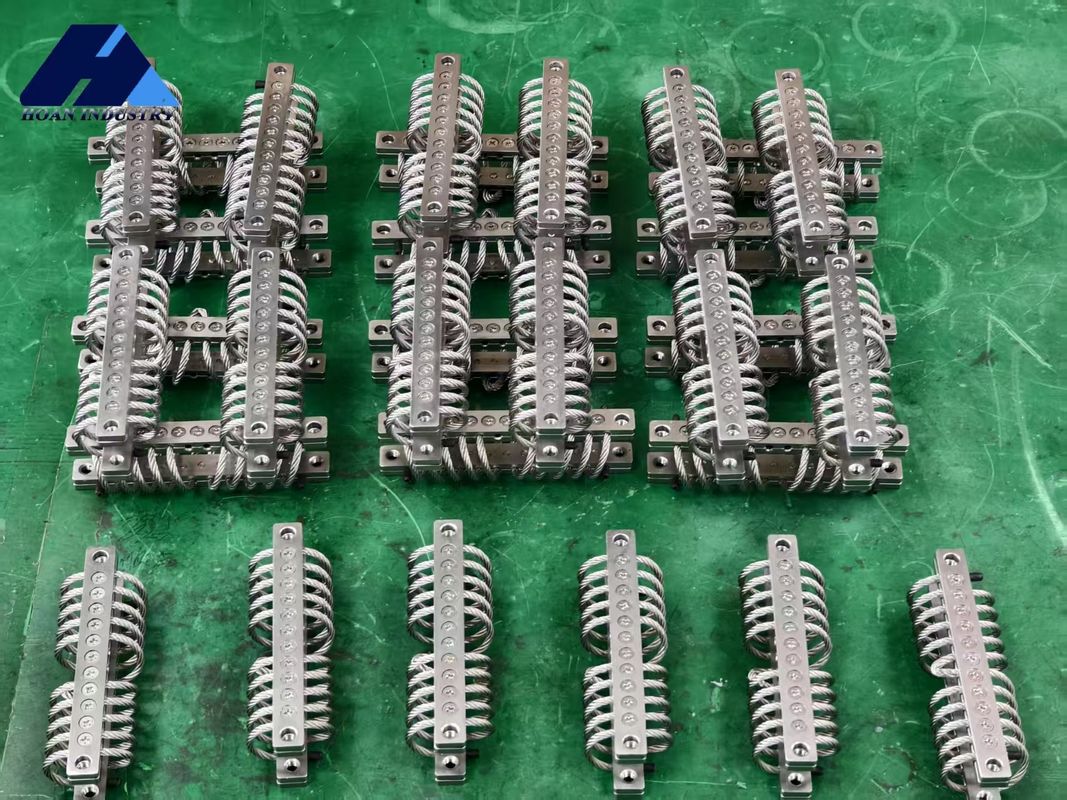

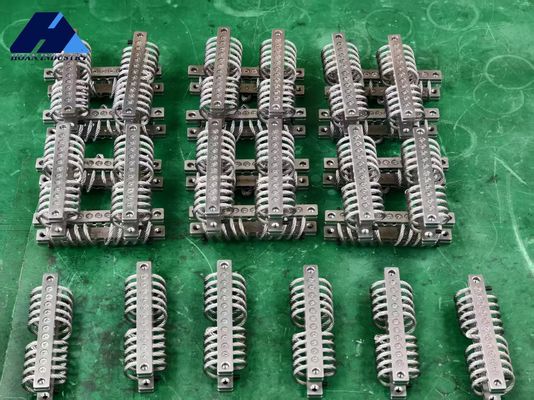

Customer Photos
FAQ
