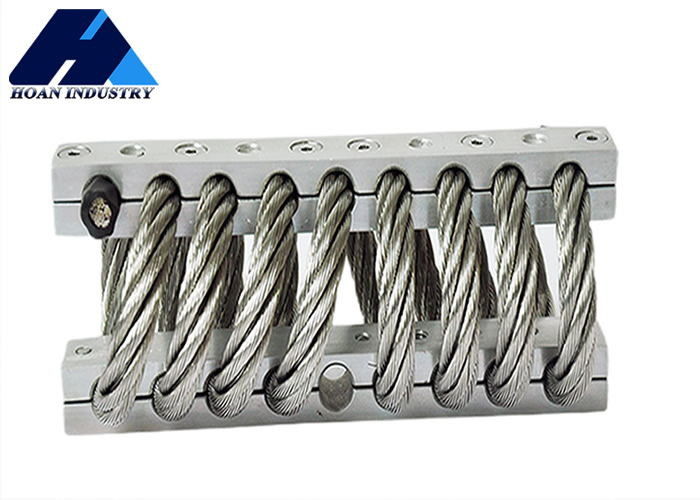

Name: JGX-1278A-310A Wire Rope Vibration Isolator for Anti-Vibration of Vehicle-Mounted Instruments in Multiple Industries
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-1278A-310A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-1278A-310A Wire Rope Vibration Isolator for Anti-Vibration of Vehicle-Mounted Instruments in Multiple Industries

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JGX-1278A-310A

Request A Quote

Product Details

Installation Method:

Vertical Or Horizontal

Isolation Frequency:

5Hz

Shock Absorption:

Excellent

Showroom Location:

None

Natural Frequency:

10-100 Hz

Vibration Frequency:

5-50Hz

Shock Resistance:

30g/11ms

Drawing Format:

DWG And PDF

Characteristic:

Wide Working Frequency, Long Life Span

Resonance Frequency:

30 Hz

Mounting Type:

Threaded

Usage:

Industrial Machinery

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,MoneyGram,Western Union

JGX-1278A-154A Lightweight and Compact Steel Wire Rope Vibration Isolators for Space-Constrained Applications

Get Best Price

Upgrade Your Vibration Isolation Game with JGX-1278A-176A High-Performance Wire Rope Vibration Isolators

Get Best Price

Integrate JGX-1278A-370A Wire Rope Vibration Isolator for Improved Equipment Lifespan and Stability

Get Best Price

JGX-1278A-310A Wire Rope Vibration Isolator for Anti-Vibration of Vehicle-Mounted Instruments in Multiple Industries

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-1278A Series

The JGX-1278A series has passed the GJB 150 military standard certification, and its core technologies have obtained multiple utility model patents, including the steel wire rope anti-loosening locking device and temperature compensation structure. In the actual application of a certain type of missile launch vehicle, this product reduces the vibration response of electronic equipment by 85%, ensuring the measurement accuracy of precision instruments during maneuvering. The full-life-cycle traceability system established by the company enables full-process quality monitoring of products from production to decommissioning, providing reliable guarantees for key fields such as military industry and aerospace.

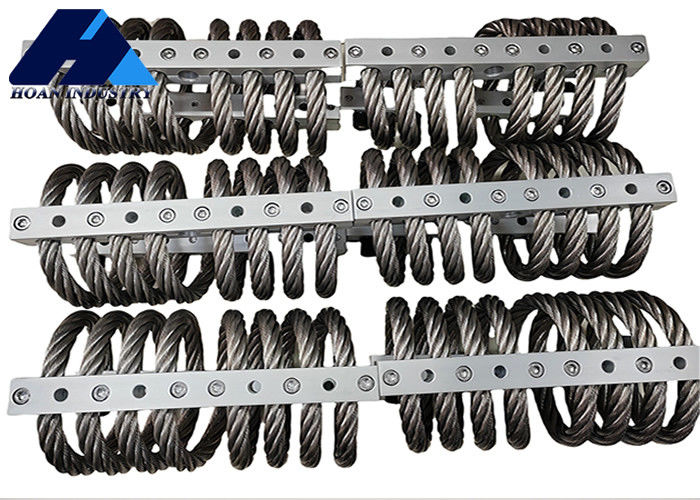

JGX-1278A-310A Wire Rope Vibration Isolator for Anti-Vibration of Vehicle-Mounted Instruments in Multiple Industries 2

Static-Load Curve

JGX-1278A-310A Wire Rope Vibration Isolator for Anti-Vibration of Vehicle-Mounted Instruments in Multiple Industries 3

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1278A-370A	370	32.0	954	471
2	JGX-1278A-310A	310	38.1	708	333
3	JGX-1278A-292A	292	43.2	613	278
4	JGX-1278A-235A	235	48.8	457	196
5	JGX-1278A-199A	199	59.9	340	137
6	JGX-1278A-176A	176	74.7	261	96
7	JGX-1278A-154A	154	85.9	207	74
8	JGX-1278A-122A	122	102.6	148	49

JGX-1278A-310A Wire Rope Vibration Isolator for Anti-Vibration of Vehicle-Mounted Instruments in Multiple Industries 4

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1278A-370A	263.2	44.7	539	236
2	JGX-1278A-310A	220.1	52.8	398	168
3	JGX-1278A-292A	208.8	61.0	349	138
4	JGX-1278A-235A	165.7	68.6	259	98
5	JGX-1278A-199A	143.0	84.8	193	68
6	JGX-1278A-176A	124.8	105.7	147	49
7	JGX-1278A-154A	109.0	121.9	117	37
8	JGX-1278A-122A	84.0	144.8	83	25

JGX-1278A-310A Wire Rope Vibration Isolator for Anti-Vibration of Vehicle-Mounted Instruments in Multiple Industries 5

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1278A-370A	299.6	33.0	294	294
2	JGX-1278A-310A	174.8	40.1	207	207
3	JGX-1278A-292A	158.9	45.2	173	173
4	JGX-1278A-235A	122.6	50.8	121	121
5	JGX-1278A-199A	81.7	56.9	81	81
6	JGX-1278A-176A	61.3	77.7	60	60
7	JGX-1278A-154A	45.4	90.9	46	46
8	JGX-1278A-122A	29.5	107.7	30	30

Product Applications

Applications	Typical Equipment	Protection From	Operational Advantages
Ship board	Electronics, Computers, Machinery	Explosive blast, Inherent vibration, Storms	Long life, Maintenance-free,Temperature extremes,Corrosion resistance,All axes protection
Rough Terrain Vehicls	Instrumentation, Generators, Electronics	Rough terrain, Poor road conditions, Collision	Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation
Aircraft	Electronics, Computers	High-G maneuvering, Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop, Loading/Unloading	Long life, Maintenance-free, Exposure to moisture, Repeated use
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free, Corrosive environments
Ordnance Equipment	Tank artillery, Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers, Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments
