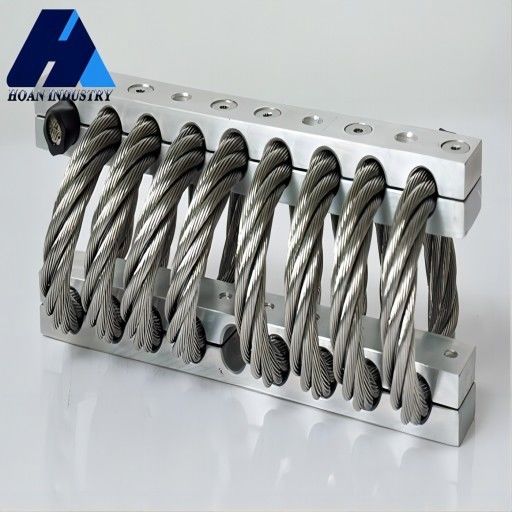

Name: Industrial Workshops Precision Laboratories Transportation Hubs JGX-1278A-292A Wire Rope Vibration Isolator
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-1278A-292A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

Industrial Workshops Precision Laboratories Transportation Hubs JGX-1278A-292A Wire Rope Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JGX-1278A-292A

Request A Quote

Product Details

Function:

Anti Shock

Isolation Type:

Passive

Marketing Type:

Hot Product 2019

Number Of Wires:

Vibration Isolation:

Up To 90%

Vibration Frequency Range:

10Hz To 100Hz

Working Temperature:

-40℃ To 80℃

Isolator Type:

Vibration

Resonance Frequency:

5Hz

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JGX-1278A-154A Lightweight and Compact Steel Wire Rope Vibration Isolators for Space-Constrained Applications

Get Best Price

Upgrade Your Vibration Isolation Game with JGX-1278A-176A High-Performance Wire Rope Vibration Isolators

Get Best Price

Integrate JGX-1278A-370A Wire Rope Vibration Isolator for Improved Equipment Lifespan and Stability

Get Best Price

JGX-1278A-310A Wire Rope Vibration Isolator for Anti-Vibration of Vehicle-Mounted Instruments in Multiple Industries

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-1278A Series

For complex vibration environments such as vehicle-mounted and shipborne applications, the JGX-1278A series innovatively adopts a composite structure of arched rubber pads and metal splints, achieving three-way equal stiffness vibration isolation. Its nonlinear stiffness characteristics can effectively suppress the resonance amplification effect, with a vibration transmissibility of less than 0.3 in the 2-30Hz wide frequency range, which is far superior to traditional rubber vibration isolators. The product has passed 16 environmental tests including salt spray and damp heat, with a protection rating of IP67, making it particularly suitable for corrosive scenarios such as the chemical industry and nuclear power. The company's R&D team has optimized the structural design through ANSYS finite element simulation, reducing the product volume by 20% compared with similar products and significantly improving installation adaptability.

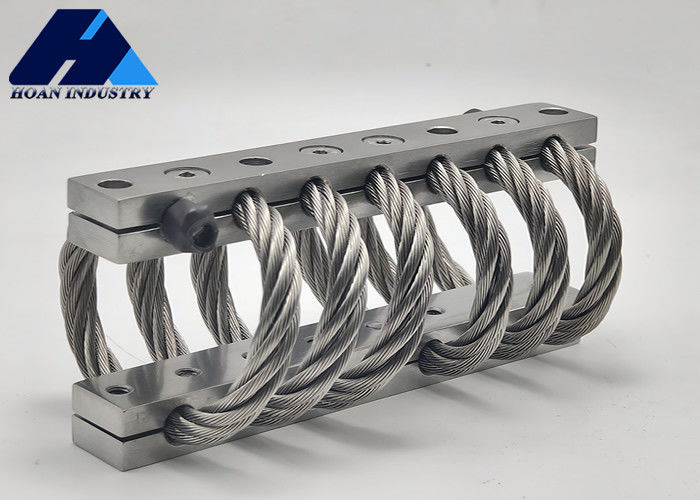

Industrial Workshops Precision Laboratories Transportation Hubs JGX-1278A-292A Wire Rope Vibration Isolator 2

Static-Load Curve

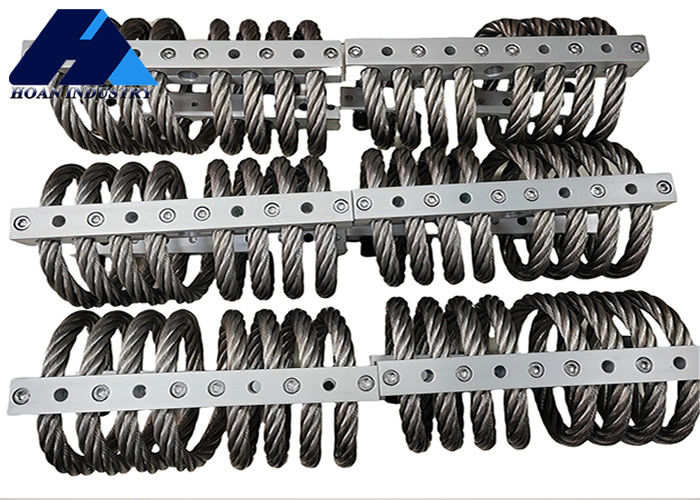

Industrial Workshops Precision Laboratories Transportation Hubs JGX-1278A-292A Wire Rope Vibration Isolator 3

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1278A-370A	370	32.0	954	471
2	JGX-1278A-310A	310	38.1	708	333
3	JGX-1278A-292A	292	43.2	613	278
4	JGX-1278A-235A	235	48.8	457	196
5	JGX-1278A-199A	199	59.9	340	137
6	JGX-1278A-176A	176	74.7	261	96
7	JGX-1278A-154A	154	85.9	207	74
8	JGX-1278A-122A	122	102.6	148	49

Industrial Workshops Precision Laboratories Transportation Hubs JGX-1278A-292A Wire Rope Vibration Isolator 4

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1278A-370A	263.2	44.7	539	236
2	JGX-1278A-310A	220.1	52.8	398	168
3	JGX-1278A-292A	208.8	61.0	349	138
4	JGX-1278A-235A	165.7	68.6	259	98
5	JGX-1278A-199A	143.0	84.8	193	68
6	JGX-1278A-176A	124.8	105.7	147	49
7	JGX-1278A-154A	109.0	121.9	117	37
8	JGX-1278A-122A	84.0	144.8	83	25

Industrial Workshops Precision Laboratories Transportation Hubs JGX-1278A-292A Wire Rope Vibration Isolator 5

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1278A-370A	299.6	33.0	294	294
2	JGX-1278A-310A	174.8	40.1	207	207
3	JGX-1278A-292A	158.9	45.2	173	173
4	JGX-1278A-235A	122.6	50.8	121	121
5	JGX-1278A-199A	81.7	56.9	81	81
6	JGX-1278A-176A	61.3	77.7	60	60
7	JGX-1278A-154A	45.4	90.9	46	46
8	JGX-1278A-122A	29.5	107.7	30	30

Product Applications

Applications	Typical Equipment	Protection From	Operational Advantages
Ship board	Electronics, Computers, Machinery	Explosive blast, Inherent vibration, Storms	Long life, Maintenance-free,Temperature extremes,Corrosion resistance,All axes protection
Rough Terrain Vehicls	Instrumentation, Generators, Electronics	Rough terrain, Poor road conditions, Collision	Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation
Aircraft	Electronics, Computers	High-G maneuvering, Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop, Loading/Unloading	Long life, Maintenance-free, Exposure to moisture, Repeated use
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free, Corrosive environments
Ordnance Equipment	Tank artillery, Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers, Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments

FAQ

Q : Are you trading company or manufacturer?
A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.

Q: How long is your delivery time?
A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days

Q: What's the weight and measurement for the product?
A: Different size with differenct amount, please contact us for details.

Q: Can the products be manufactuered by customer's requirement?
A: Yes, OEM service available

Q: What do you need to know for fast quotation?
A:I need your equipment weight, volume; Shock and vibration requirements of the equipment; We would appreciate these details on the application environment of the device

Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company.We are located in Xi'an, Shaanxi, China
