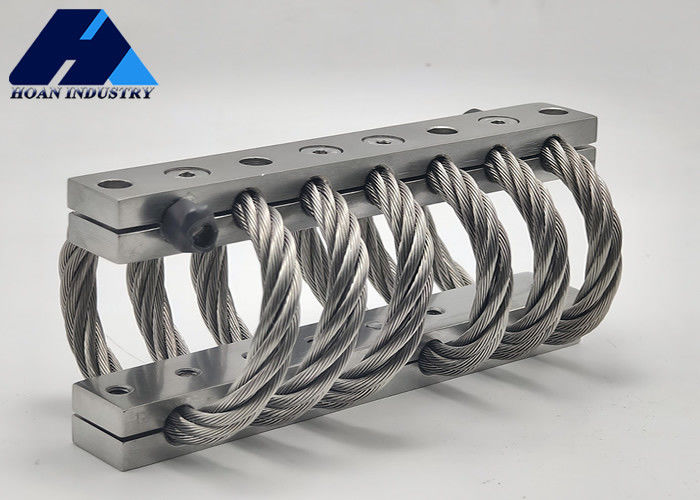

JGX-1278A-235A The Ultimate Vibration Isolator for Anti-Vibration in Vehicle-Mounted Precision Measuring Instruments

Product Details

Applications:

Marine And Industrial Engine Mounts

Isolation Frequency:

10 Hz

Machinery Test Report:

Not Available

Product Keywords:

Wire Vibration Damper

Product Load Capacity:

Customizable

Isolator Type:

Helical

Number Of Wires:

Shock Rsistance:

30g/11ms

Certifications:

ISO 9001, AS9100, MIL-SPEC

Type:

Helical

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

JGX-1278A-154A Lightweight and Compact Steel Wire Rope Vibration Isolators for Space-Constrained Applications

Get Best Price

Upgrade Your Vibration Isolation Game with JGX-1278A-176A High-Performance Wire Rope Vibration Isolators

Get Best Price

Integrate JGX-1278A-370A Wire Rope Vibration Isolator for Improved Equipment Lifespan and Stability

Get Best Price

JGX-1278A-310A Wire Rope Vibration Isolator for Anti-Vibration of Vehicle-Mounted Instruments in Multiple Industries

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-1278A Series

Xi'an Hoan Microwave Co., Ltd. has been deeply engaged in the vibration isolator field for over 20 years. Its independently developed JGX-1278A series steel wire rope vibration isolators, with outstanding technical performance, have become core components for anti-seismic protection of high-end equipment. This series of products adopts a precision winding technology with multi-strand stainless steel wires, forming a unique spiral structure. It achieves energy dissipation through frictional sliding between the wires, and can still maintain stable performance in extreme temperature environments ranging from -50℃ to 150℃. As a high-tech enterprise, the company strictly implements the ISO 9001 quality management system. All processes, from raw material selection to finished product testing, go through 12 precision procedures, ensuring that the product's impact resistance reaches over 100G.

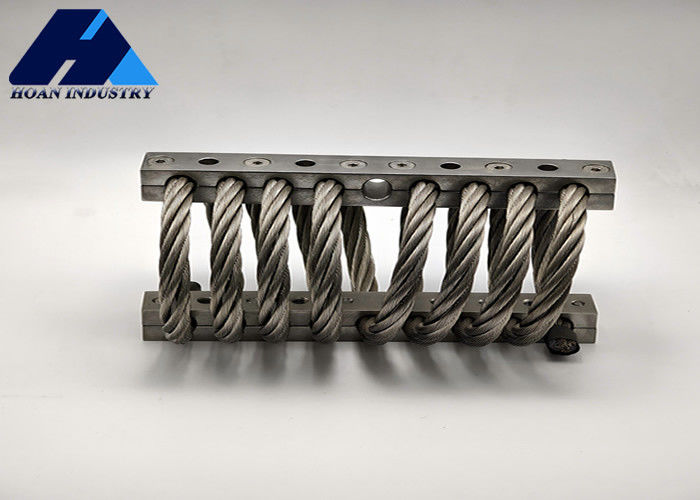

JGX-1278A-235A The Ultimate Vibration Isolator for Anti-Vibration in Vehicle-Mounted Precision Measuring Instruments 2

Static-Load Curve

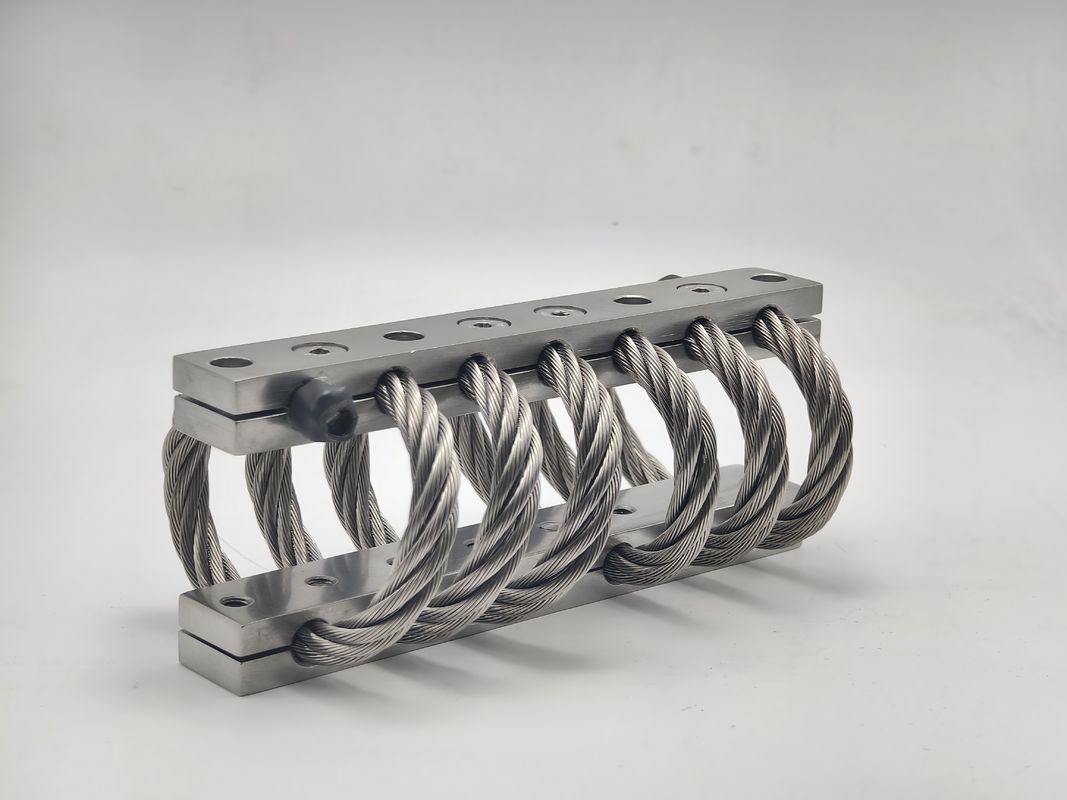

JGX-1278A-235A The Ultimate Vibration Isolator for Anti-Vibration in Vehicle-Mounted Precision Measuring Instruments 3

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1278A-370A	370	32.0	954	471
2	JGX-1278A-310A	310	38.1	708	333
3	JGX-1278A-292A	292	43.2	613	278
4	JGX-1278A-235A	235	48.8	457	196
5	JGX-1278A-199A	199	59.9	340	137
6	JGX-1278A-176A	176	74.7	261	96
7	JGX-1278A-154A	154	85.9	207	74
8	JGX-1278A-122A	122	102.6	148	49

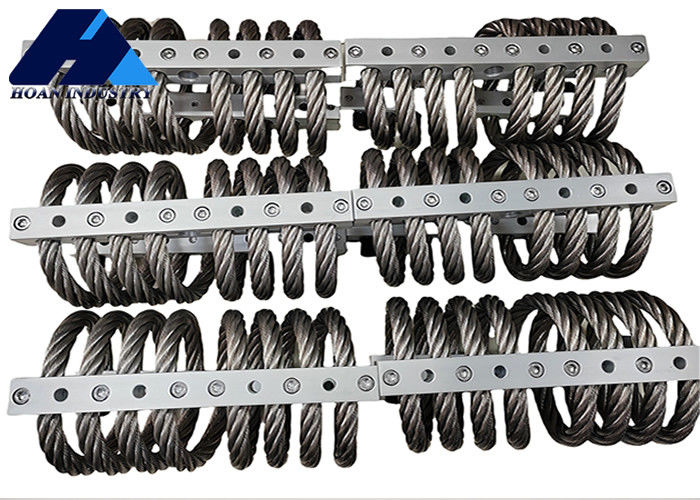

JGX-1278A-235A The Ultimate Vibration Isolator for Anti-Vibration in Vehicle-Mounted Precision Measuring Instruments 4

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1278A-370A	263.2	44.7	539	236
2	JGX-1278A-310A	220.1	52.8	398	168
3	JGX-1278A-292A	208.8	61.0	349	138
4	JGX-1278A-235A	165.7	68.6	259	98
5	JGX-1278A-199A	143.0	84.8	193	68
6	JGX-1278A-176A	124.8	105.7	147	49
7	JGX-1278A-154A	109.0	121.9	117	37
8	JGX-1278A-122A	84.0	144.8	83	25

JGX-1278A-235A The Ultimate Vibration Isolator for Anti-Vibration in Vehicle-Mounted Precision Measuring Instruments 5

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1278A-370A	299.6	33.0	294	294
2	JGX-1278A-310A	174.8	40.1	207	207
3	JGX-1278A-292A	158.9	45.2	173	173
4	JGX-1278A-235A	122.6	50.8	121	121
5	JGX-1278A-199A	81.7	56.9	81	81
6	JGX-1278A-176A	61.3	77.7	60	60
7	JGX-1278A-154A	45.4	90.9	46	46
8	JGX-1278A-122A	29.5	107.7	30	30

Product Applications

Applications	Typical Equipment	Protection From	Operational Advantages
Ship board	Electronics, Computers, Machinery	Explosive blast, Inherent vibration, Storms	Long life, Maintenance-free,Temperature extremes,Corrosion resistance,All axes protection
Rough Terrain Vehicls	Instrumentation, Generators, Electronics	Rough terrain, Poor road conditions, Collision	Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation
Aircraft	Electronics, Computers	High-G maneuvering, Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop, Loading/Unloading	Long life, Maintenance-free, Exposure to moisture, Repeated use
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free, Corrosive environments
Ordnance Equipment	Tank artillery, Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers, Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments

Customer Photos

JGX-1278A-235A The Ultimate Vibration Isolator for Anti-Vibration in Vehicle-Mounted Precision Measuring Instruments 6
