Name: JGX-1278A-154A Lightweight and Compact Steel Wire Rope Vibration Isolators for Space-Constrained Applications
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-1278A-154A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-1278A-154A Lightweight and Compact Steel Wire Rope Vibration Isolators for Space-Constrained Applications

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JGX-1278A-154A

Request A Quote

Product Details

Mounting Type:

Loop To Loop

Isolation Efficiency:

90%

Mounting Hardware:

Eye Bolts

Isolation Frequency:

5Hz

Material:

Stainless Steel

Mounting Hole Diameter:

Model:

JGR SERIERS

Isolator Type:

Helical

Wire Rope Length:

6 Inches

Packing:

Standard Packing

Marketing Type:

New Product 2024

Axial Stiffness:

50N/mm

Feature:

Durable

Load Range:

3.5-2000KG

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JGX-1278A-154A Lightweight and Compact Steel Wire Rope Vibration Isolators for Space-Constrained Applications

Get Best Price

Upgrade Your Vibration Isolation Game with JGX-1278A-176A High-Performance Wire Rope Vibration Isolators

Get Best Price

Integrate JGX-1278A-370A Wire Rope Vibration Isolator for Improved Equipment Lifespan and Stability

Get Best Price

JGX-1278A-310A Wire Rope Vibration Isolator for Anti-Vibration of Vehicle-Mounted Instruments in Multiple Industries

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-1278A Series

The JGX-1278A series steel wire rope vibration isolators of Xi'an Hoan Microwave fully consider engineering practicality and performance optimization in their design.

Steel Wire Rope Core: High-performance stainless steel wire ropes of specific specifications are precisely wound with calculated pretension forces. This core component determines vibration isolation performance (stiffness, damping, fatigue life). The strand structure ensures nonlinear load-deformation characteristics and high damping.

Metal Connection Structure: Both ends of the steel wire rope are firmly anchored to metal connectors (such as base plates and mounting plates). These connectors, usually made of high-strength alloy steel or aluminum alloy with anti-corrosion surface treatment, provide reliable installation interfaces and structural support. The connection design ensures effective load transfer and overall stability.

Compactness and Lightweight: The structure is optimized to minimize volume and weight while meeting load-bearing and vibration isolation requirements, facilitating installation in space-constrained equipment.

Standardization and Serialization: The JGX-1278A series includes various specifications covering different load ranges to meet diverse equipment weights and vibration isolation needs. Standardized designs simplify selection, installation, and maintenance.

This meticulous structural design ensures the stability and durability of the vibration isolators during long-term use.

Static-Load Curve

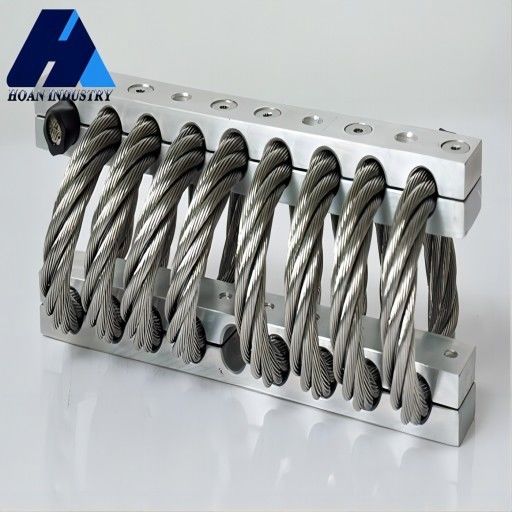

JGX-1278A-154A Lightweight and Compact Steel Wire Rope Vibration Isolators for Space-Constrained Applications 0

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1278A-370A	370	32.0	954	471
2	JGX-1278A-310A	310	38.1	708	333
3	JGX-1278A-292A	292	43.2	613	278
4	JGX-1278A-235A	235	48.8	457	196
5	JGX-1278A-199A	199	59.9	340	137
6	JGX-1278A-176A	176	74.7	261	96
7	JGX-1278A-154A	154	85.9	207	74
8	JGX-1278A-122A	122	102.6	148	49

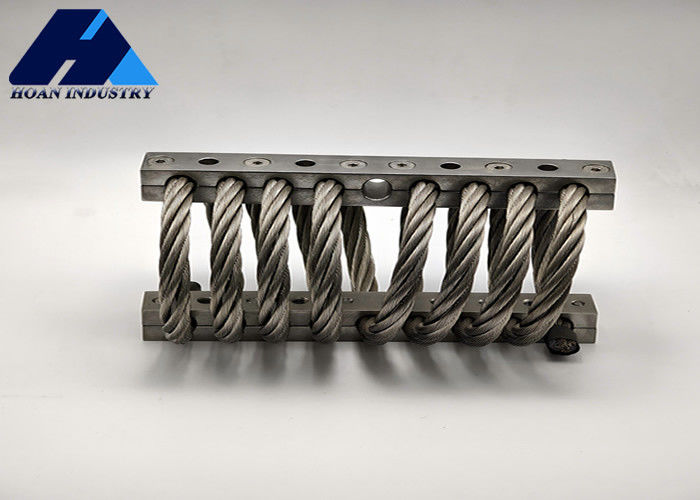

JGX-1278A-154A Lightweight and Compact Steel Wire Rope Vibration Isolators for Space-Constrained Applications 1

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1278A-370A	263.2	44.7	539	236
2	JGX-1278A-310A	220.1	52.8	398	168
3	JGX-1278A-292A	208.8	61.0	349	138
4	JGX-1278A-235A	165.7	68.6	259	98
5	JGX-1278A-199A	143.0	84.8	193	68
6	JGX-1278A-176A	124.8	105.7	147	49
7	JGX-1278A-154A	109.0	121.9	117	37
8	JGX-1278A-122A	84.0	144.8	83	25

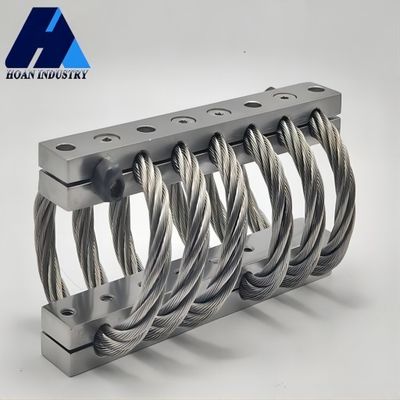

JGX-1278A-154A Lightweight and Compact Steel Wire Rope Vibration Isolators for Space-Constrained Applications 2

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1278A-370A	299.6	33.0	294	294
2	JGX-1278A-310A	174.8	40.1	207	207
3	JGX-1278A-292A	158.9	45.2	173	173
4	JGX-1278A-235A	122.6	50.8	121	121
5	JGX-1278A-199A	81.7	56.9	81	81
6	JGX-1278A-176A	61.3	77.7	60	60
7	JGX-1278A-154A	45.4	90.9	46	46
8	JGX-1278A-122A	29.5	107.7	30	30

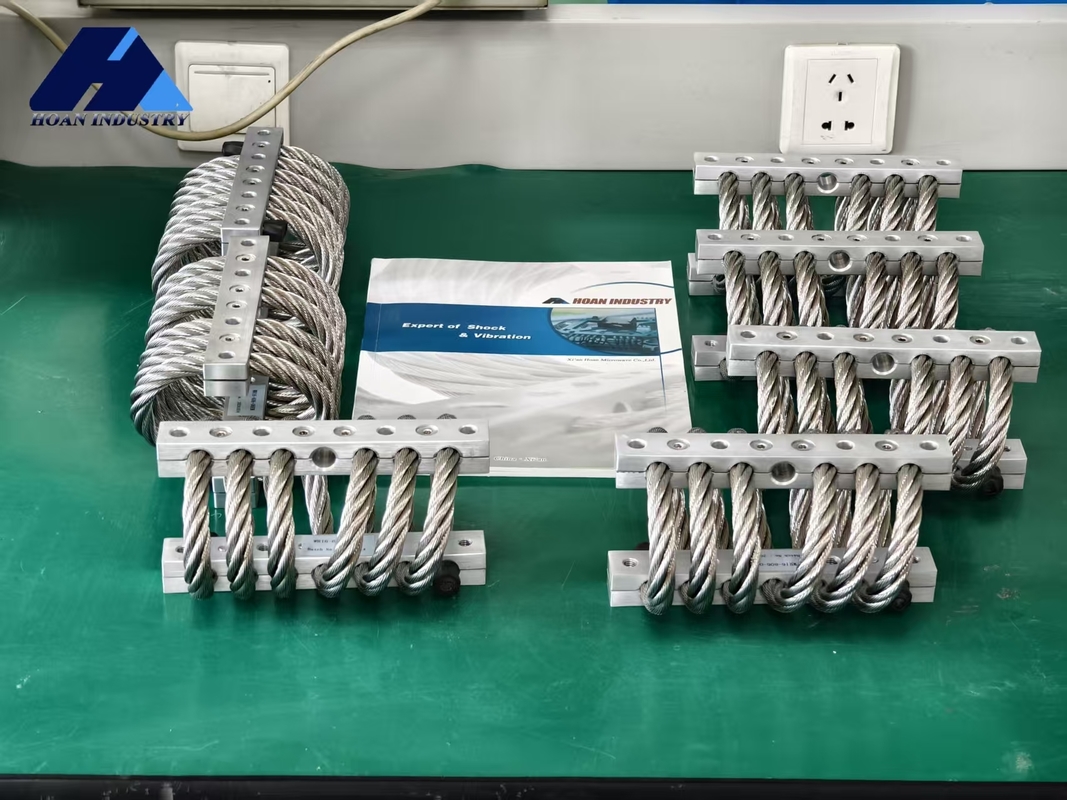

Customer Photos

JGX-1278A-154A Lightweight and Compact Steel Wire Rope Vibration Isolators for Space-Constrained Applications 3

Product Applications

Applications	Typical Equipment	Protection From	Operational Advantages
Shipboard	Electronics,Computers, Machinery	Explosive blast,Inherent vibration, Storms	Long life, Maintenance-free, Temperature extremes,Corrosion resistance,All axes protection
Rough Terrain Vehicles	Instrumentation, Generators,Electronics	Rough terrain,Poor road conditions, Collision	Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop,Loading/Unloading	Long life, Maintenance-free,Exposure to moisture, Repeated use
Aircraft	Electronics,Computers	High-G maneuvering,Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads,Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free,Corrosive environments
Ordnance Equipment	Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers,Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments
