Name: JGX-1598A-515A Simplifying Complexity in Installation with Wire Rope Vibration Isolator
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-1598A-515A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

JGX-1598A-515A Simplifying Complexity in Installation with Wire Rope Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-1598A-515A

Document:

JGX-1598 Series.pdf

Request A Quote

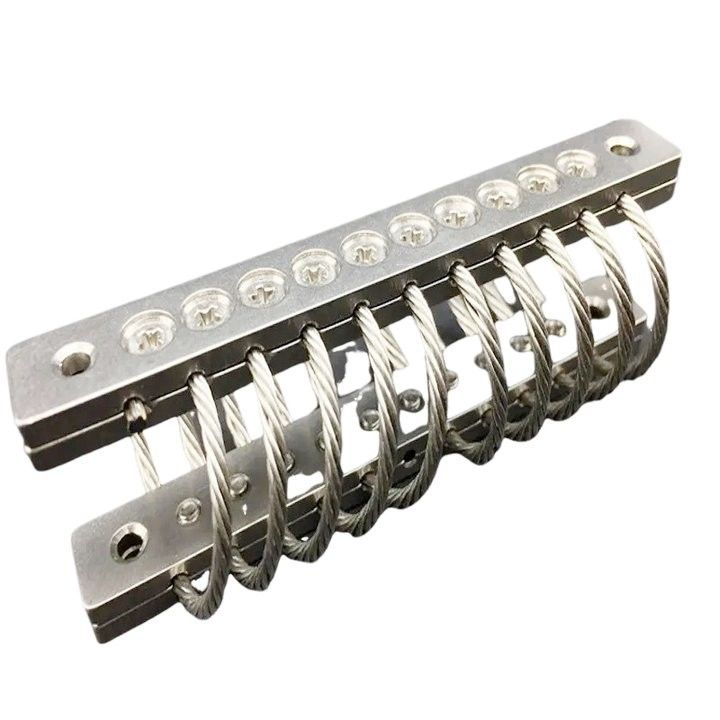

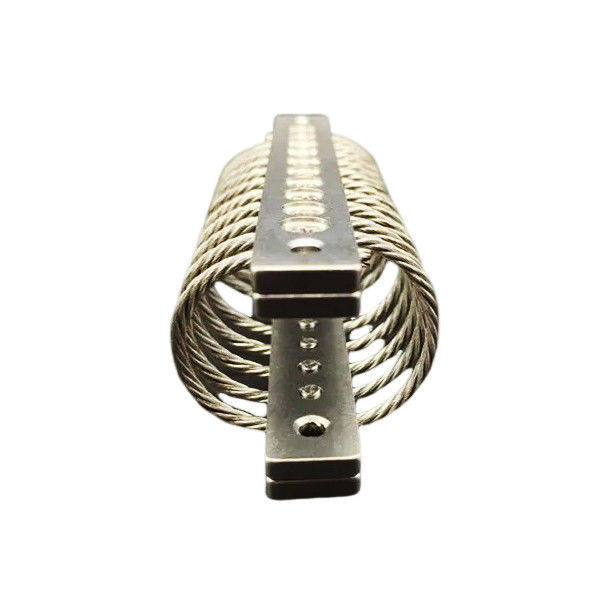

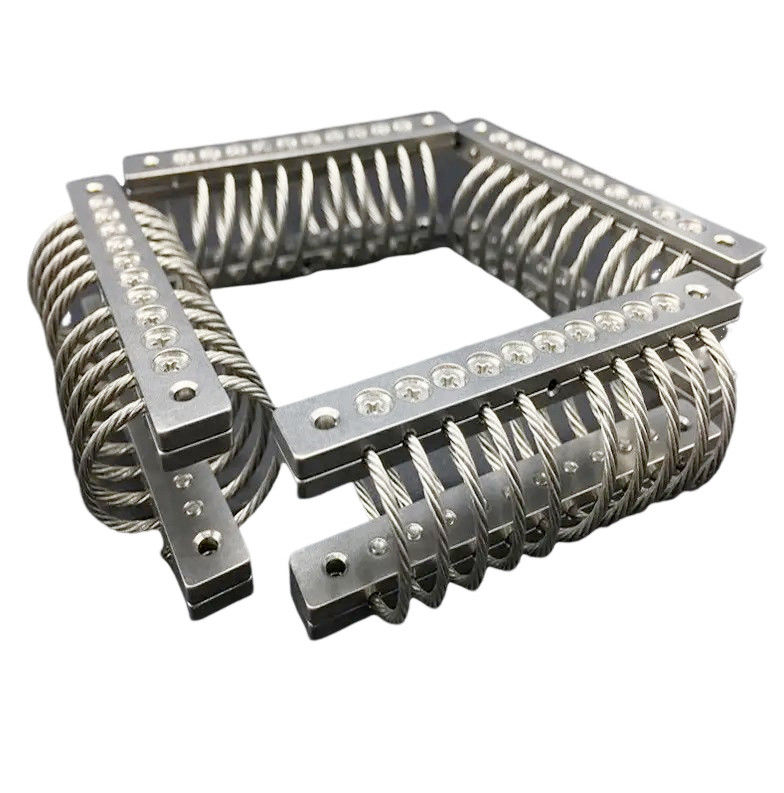

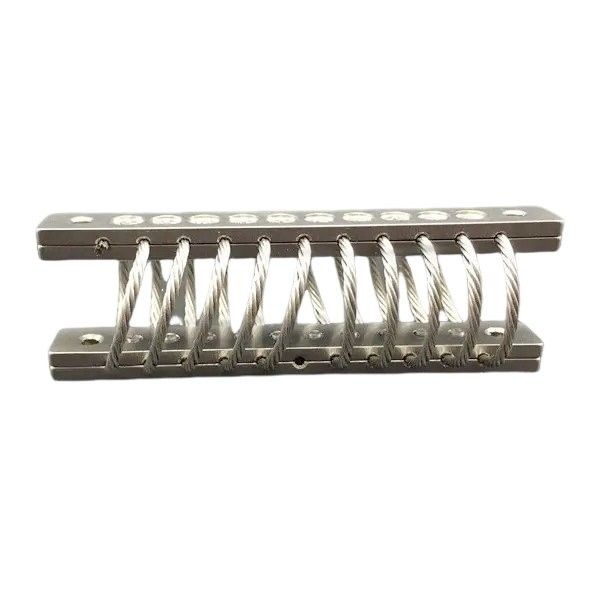

JGX-1598A-515A Simplifying Complexity in Installation with Wire Rope Vibration Isolator

Product Details

Port:

Xi'an

Structure:

Helical

Flexible And Durable:

Yes

Showroom Location:

None

Shape:

Circular

Mounting Thread Size:

M10

High:

102mm

Mounting Type:

Varies Depending On Application

Feature:

Durable

Installation Orientation:

Vertical Or Horizontal

Applications:

Aerospace, Military, Industrial

Load Range:

515KG

Spring Constant:

50N/mm

Wire Rope Diameter:

15.9mm

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JGX-1598A-428A Effective Energy Dissipation and Vibration Attenuation for Precision Manufacturing and Microscopic Observation

Get Best Price

JGX-1598A-515A Simplifying Complexity in Installation with Wire Rope Vibration Isolator

Get Best Price

JGX-1598A-557A Wide-Frequency "Silencing" Capability for High-End Optical Platforms and Semiconductor Manufacturing Equipment

Get Best Price

JGX-1598A-657A Wire Rope Vibration Isolator The Perfect Combination of Materials Science and Engineering

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-1598A Series

JGX-1598A — The Engineering Wisdom of Simplifying Complexity in Installation

In the field of equipment vibration control, efficient installation and maintenance are key to enhancing system reliability and reducing life cycle costs. Xi'an Hoan Microwave understands this well, and its JGX-1598A wire rope isolator has incorporated the concept of "engineering-friendliness" from the very beginning of its design.

The isolator features a simple and intuitive structural design. Typically, no complex specialized tools are required; engineers can quickly complete selection and installation positioning based on the weight distribution of the equipment. Its compact overall dimensions effectively save valuable space at the bottom of the equipment or on the installation base, providing greater flexibility for system integration.

More importantly, its unique structural form greatly simplifies post-maintenance procedures. When inspection or replacement is needed, the operation is convenient and efficient, significantly reducing equipment downtime. With the wisdom of simplifying complexity, the JGX-1598A makes the deployment and application of vibration isolation solutions more efficient and smooth than ever before.

Static-Load Curve

JGX-1598A-515A Simplifying Complexity in Installation with Wire Rope Vibration Isolator 0

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1598A-657A	657	31.8	1676	849
2	JGX-1598A-557A	557	38.1	1259	609
3	JGX-1598A-515A	515	41.9	1105	504
4	JGX-1598A-428A	428	49.5	821	356
5	JGX-1598A-358A	358	58.4	616	252
6	JGX-1598A-324A	324	67.3	511	196
7	JGX-1598A-285A	285	73.7	427	159

JGX-1598A-515A Simplifying Complexity in Installation with Wire Rope Vibration Isolator 1

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1598A-657A	463.0	45.7	951	419
2	JGX-1598A-557A	406.2	54.6	741	305
3	JGX-1598A-515A	365.4	59.7	627	250
4	JGX-1598A-428A	304.1	71.1	468	177
5	JGX-1598A-358A	254.2	83.8	350	124
6	JGX-1598A-324A	229.2	84.0	285	98
7	JGX-1598A-285A	201.9	101.6	238	81

JGX-1598A-515A Simplifying Complexity in Installation with Wire Rope Vibration Isolator 2

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1598A-657A	358.6	34.3	524	524
2	JGX-1598A-557A	308.7	40.6	375	375
3	JGX-1598A-515A	267.8	43.2	308	308
4	JGX-1598A-428A	217.9	52.1	215	215
5	JGX-1598A-358A	154.3	61.0	152	152
6	JGX-1598A-324A	124.8	69.9	123	123
7	JGX-1598A-285A	99.9	76.2	98	98

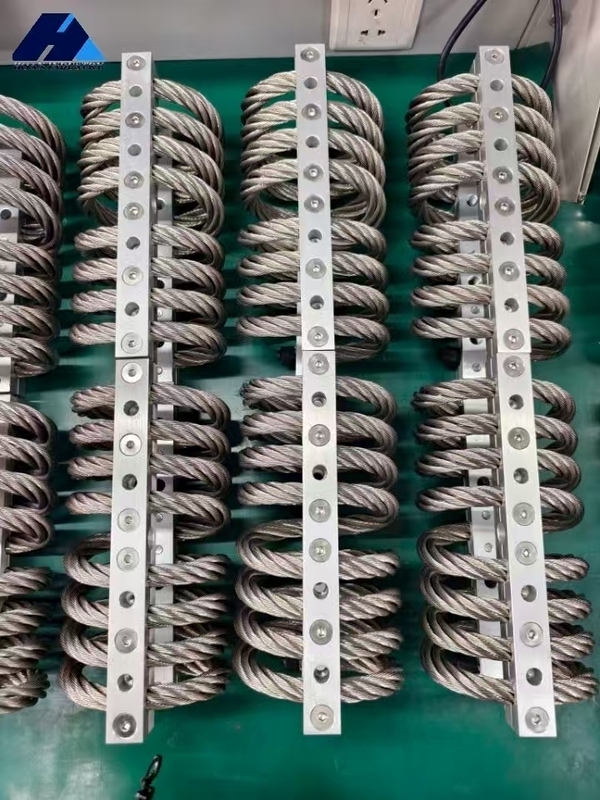

Customer Photos

JGX-1598A-515A Simplifying Complexity in Installation with Wire Rope Vibration Isolator 3

Product Applications

Applications	Typical Equipment	Protection From	Operational Advantages
Shipboard	Electronics,Computers, Machinery	Explosive blast,Inherent vibration, Storms	Long life, Maintenance-free, Temperature extremes,Corrosion resistance,All axes protection
Rough Terrain Vehicles	Instrumentation, Generators,Electronics	Rough terrain,Poor road conditions, Collision	Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop,Loading/Unloading	Long life, Maintenance-free,Exposure to moisture, Repeated use
Aircraft	Electronics,Computers	High-G maneuvering,Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads,Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free,Corrosive environments
Ordnance Equipment	Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers,Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments

* Surface treatment of aluminum alloy plywood *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
