Name: Stable and Performance JGX-1598A-358A Wire Rope Vibration Isolator for Communication Radars and Navigation Equipment
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-1598A-358A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

Stable and Performance JGX-1598A-358A Wire Rope Vibration Isolator for Communication Radars and Navigation Equipment

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

JGX-1598A-358A

Document:

JGX-1598 Series.pdf

Request A Quote

Stable and Performance JGX-1598A-358A Wire Rope Vibration Isolator for Communication Radars and Navigation Equipment

Product Details

Condition:

New

Installation:

Wall Mounted

Marketing Type:

Hot Product 2024

Size:

Custom Size

Application:

Heavy Machinery, Industrial Equipment

Operating Temperature:

-40 To 200 Degrees Fahrenheit

Feature:

Durable

Type:

Metal And Mesh Isolator

Shape:

Circular

Isolation Frequency Range:

5Hz To 100Hz

Temperature Range:

-40℃ To 80℃

Design Style:

Industrial

Shock Resistance:

30g/11ms

Mounting Hole Diameter:

M10

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

JGX-1598A-428A Effective Energy Dissipation and Vibration Attenuation for Precision Manufacturing and Microscopic Observation

Get Best Price

JGX-1598A-515A Simplifying Complexity in Installation with Wire Rope Vibration Isolator

Get Best Price

JGX-1598A-557A Wide-Frequency "Silencing" Capability for High-End Optical Platforms and Semiconductor Manufacturing Equipment

Get Best Price

JGX-1598A-657A Wire Rope Vibration Isolator The Perfect Combination of Materials Science and Engineering

Get Best Price

86-29-88292913

Contact Now

Product Description

JGX-1598A Series

JGX-1598A — All-Scenario Application Value from Laboratory to Industrial Site

The value of Xi'an Hoan Microwave's JGX-1598A wire rope isolator lies in its versatility and reliability that transcend the boundaries of application scenarios.

At the forefront of scientific research, it serves as an indispensable "stable hand" beneath precision optical experimental platforms, high-resolution electron microscopes, and nano-scale measuring instruments, isolating micro-vibrations that could cause critical interference to experimental results.

In the field of high-end manufacturing, precision machine tools, lithography machines, and wafer inspection equipment rely on the ultra-stable platforms it provides, ensuring that processing and inspection accuracy reaches the micron or even nanometer level.

In harsh industrial sites, vehicle-mounted and shipborne communication radars, electronic countermeasure systems, high-precision inertial navigation equipment, and more also benefit from the JGX-1598A's excellent isolation performance and impact resistance in complex vibration environments (such as road bumps, engine vibrations, and sea wave impacts). It guarantees the continuous and stable operation of key equipment in mobile or vibrating environments.

From quiet laboratories to bumpy mobile platforms, the JGX-1598A, with its consistent reliability, safeguards the "stability" of precision equipment across various industries.

Static-Load Curve

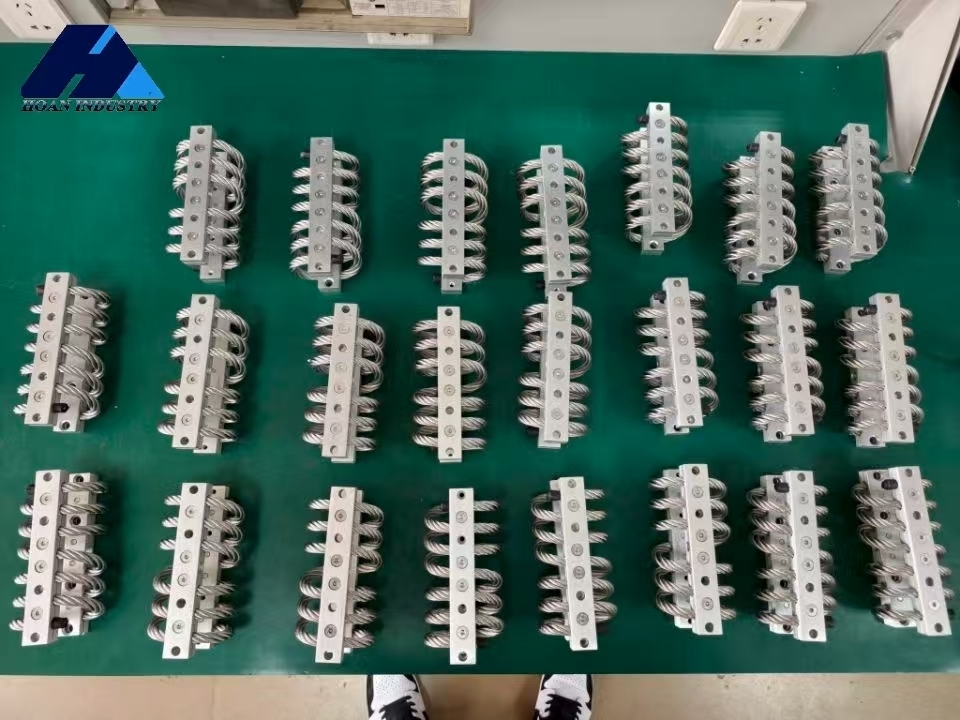

Stable and Performance JGX-1598A-358A Wire Rope Vibration Isolator for Communication Radars and Navigation Equipment 0

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1598A-657A	657	31.8	1676	849
2	JGX-1598A-557A	557	38.1	1259	609
3	JGX-1598A-515A	515	41.9	1105	504
4	JGX-1598A-428A	428	49.5	821	356
5	JGX-1598A-358A	358	58.4	616	252
6	JGX-1598A-324A	324	67.3	511	196
7	JGX-1598A-285A	285	73.7	427	159

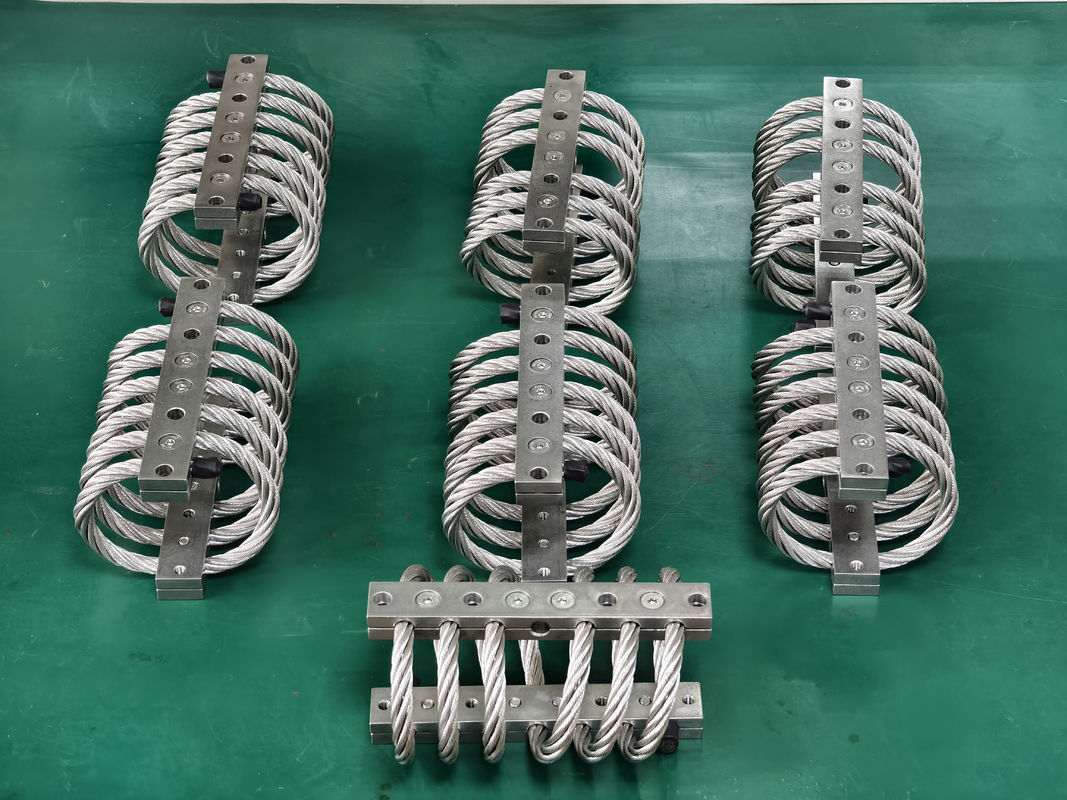

Stable and Performance JGX-1598A-358A Wire Rope Vibration Isolator for Communication Radars and Navigation Equipment 1

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1598A-657A	463.0	45.7	951	419
2	JGX-1598A-557A	406.2	54.6	741	305
3	JGX-1598A-515A	365.4	59.7	627	250
4	JGX-1598A-428A	304.1	71.1	468	177
5	JGX-1598A-358A	254.2	83.8	350	124
6	JGX-1598A-324A	229.2	84.0	285	98
7	JGX-1598A-285A	201.9	101.6	238	81

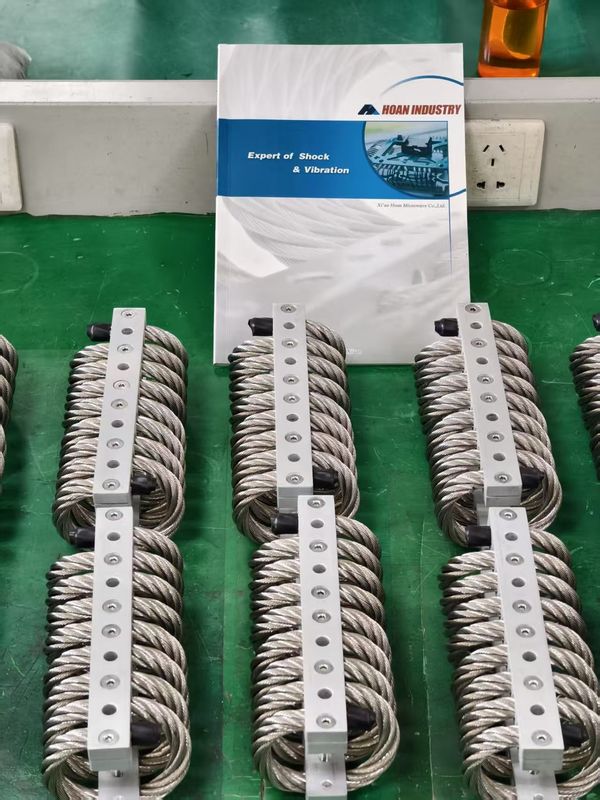

Stable and Performance JGX-1598A-358A Wire Rope Vibration Isolator for Communication Radars and Navigation Equipment 2

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1598A-657A	358.6	34.3	524	524
2	JGX-1598A-557A	308.7	40.6	375	375
3	JGX-1598A-515A	267.8	43.2	308	308
4	JGX-1598A-428A	217.9	52.1	215	215
5	JGX-1598A-358A	154.3	61.0	152	152
6	JGX-1598A-324A	124.8	69.9	123	123
7	JGX-1598A-285A	99.9	76.2	98	98

Customer Photos

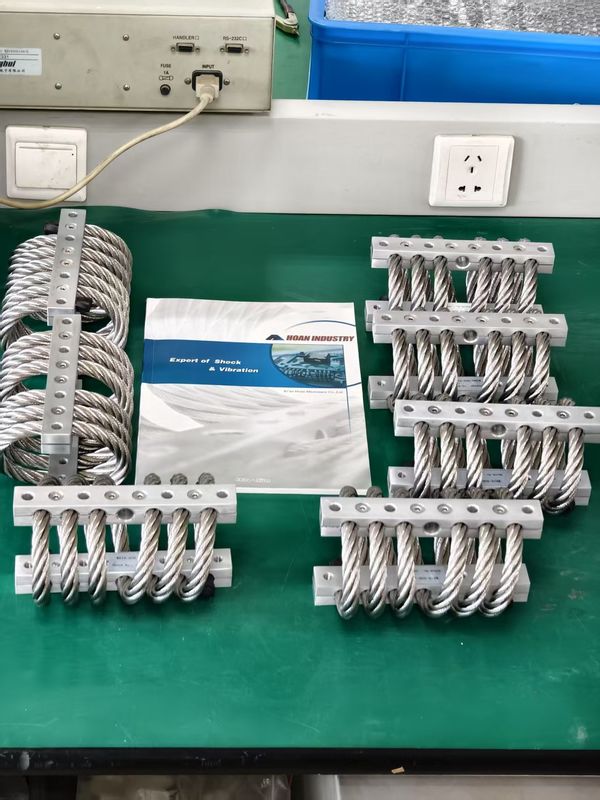

Stable and Performance JGX-1598A-358A Wire Rope Vibration Isolator for Communication Radars and Navigation Equipment 3

Product Applications

Applications	Typical Equipment	Protection From	Operational Advantages
Shipboard	Electronics,Computers, Machinery	Explosive blast,Inherent vibration, Storms	Long life, Maintenance-free, Temperature extremes,Corrosion resistance,All axes protection
Rough Terrain Vehicles	Instrumentation, Generators,Electronics	Rough terrain,Poor road conditions, Collision	Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop,Loading/Unloading	Long life, Maintenance-free,Exposure to moisture, Repeated use
Aircraft	Electronics,Computers	High-G maneuvering,Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads,Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free,Corrosive environments
Ordnance Equipment	Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers,Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments
