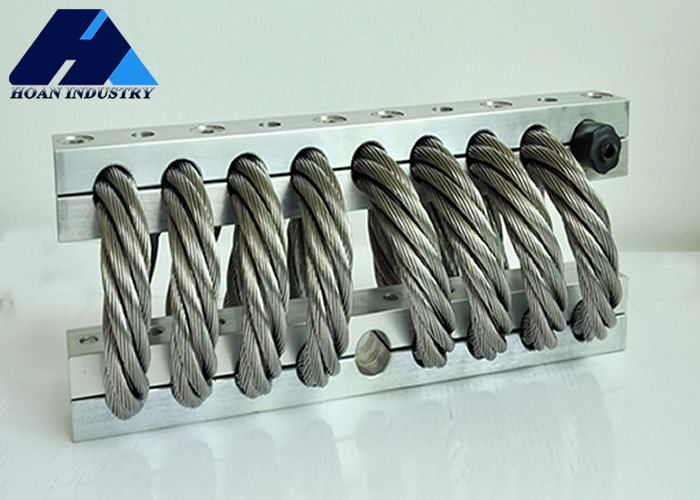

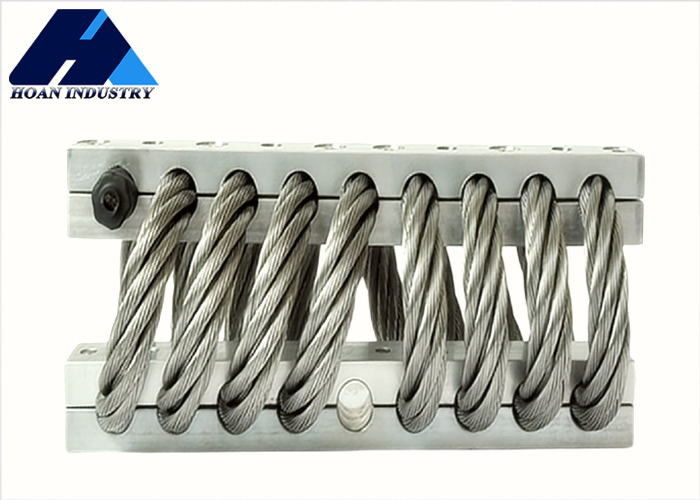

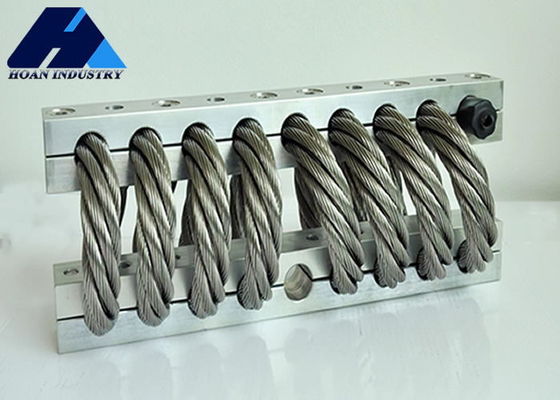

JGX-2228A Series
In the face of the intelligent trends in the vibration isolator industry in 2025, Xi'an Hoan Microwave is promoting the digital upgrading of the JGX-2228A. Its newly developed IoT integration solution can conduct real-time monitoring of equipment vibration data through built-in sensors and predict fault risks with AI algorithms. In a pilot project at an automobile production line, the system reduced equipment downtime by 58% and increased maintenance efficiency by 3 times.
In the field of environmental protection, the company has achieved sustainable development through material recycling technology. The stainless steel material of the JGX-2228A has a recovery rate of 98%, and the cyanide-free electroplating process adopted in its production reduces heavy metal emissions by 70% compared with traditional processes. This concept of green manufacturing has obtained EU RoHS certification and been included in the National Key Energy-Saving Technology Promotion Catalog.
Static-Load Curve
| No. |
Model |
Max Static Load
(mm)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/m)
|
Ks(Shock)
(KN/m)
|
| 1 |
JGX-2228A-1250A |
1250 |
50.8 |
2362 |
1010 |
| 2 |
JGX-2228A-960A |
960 |
67.3 |
1513 |
585 |
| 3 |
JGX-2228A-860A |
860 |
74.9 |
1270 |
469 |
| 4 |
JGX-2228A-665A |
665 |
102.9 |
800 |
263 |
| 5 |
JGX-2228A-550A |
550 |
125.7 |
585 |
180 |
| 6 |
JGX-2228A-380A |
380 |
125.7 |
377 |
138 |
| No. |
Model |
Max Static Load
(mm)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/m)
|
Ks(Shock)
(KN/m)
|
| 1 |
JGX-2228A-1250A |
889.8 |
72.4 |
1348 |
503 |
| 2 |
JGX-2228A-960A |
680.6 |
96.5 |
860 |
289 |
| 3 |
JGX-2228A-860A |
613.3 |
105.4 |
718 |
235 |
| 4 |
JGX-2228A-665A |
454.1 |
144.8 |
448 |
131 |
| 5 |
JGX-2228A-550A |
331.6 |
177.8 |
327 |
89 |
| 6 |
JGX-2228A-380A |
215.3 |
177.8 |
212 |
70 |
| No. |
Model |
Max Static Load
(mm)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/m)
|
Ks(Shock)
(KN/m)
|
| 1 |
JGX-2228A-1250A |
626.5 |
53.3 |
618 |
618 |
| 2 |
JGX-2228A-960A |
361.5 |
71.1 |
356 |
356 |
| 3 |
JGX-2228A-860A |
294.9 |
77.5 |
291 |
291 |
| 4 |
JGX-2228A-665A |
165.3 |
108.0 |
163 |
163 |
| 5 |
JGX-2228A-550A |
113.2 |
132.1 |
112 |
112 |
| 6 |
JGX-2228A-380A |
77.6 |
132.1 |
77 |
77 |
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.
Q: How long is your delivery time?
A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days
Q: What's the weight and measurement for the product?
A: Different size with differenct amount, please contact us for details.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, OEM service available
Q: What do you need to know for fast quotation?
A:I need your equipment weight, volume; Shock and vibration requirements of the equipment; We would appreciate these details on the application environment of the device
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company.We are located in Xi'an, Shaanxi, China
