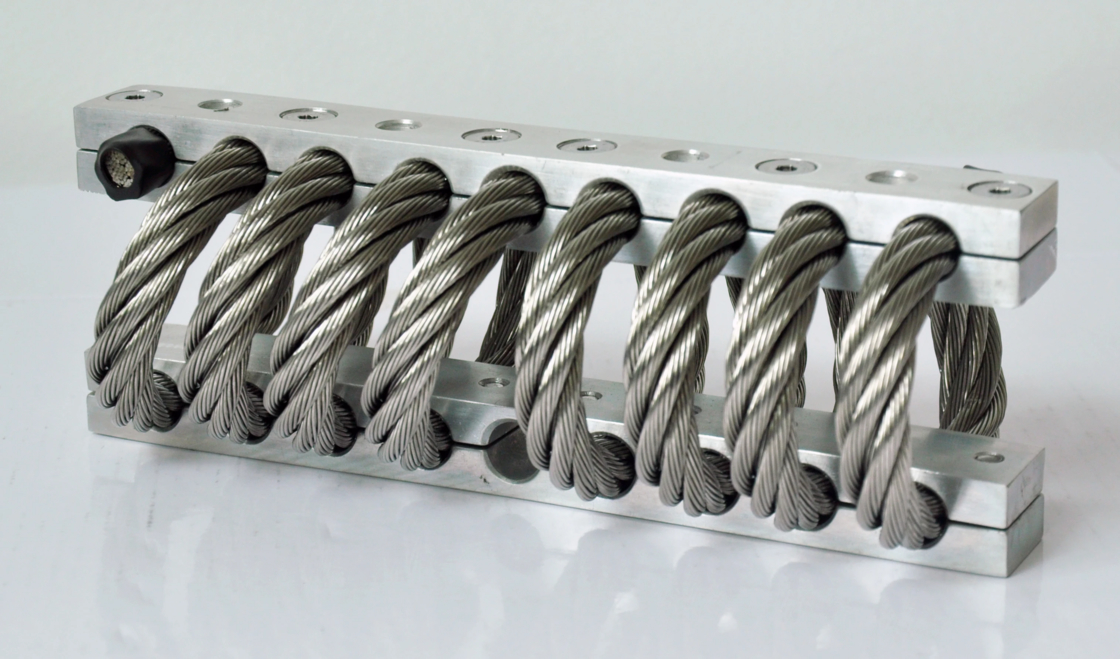

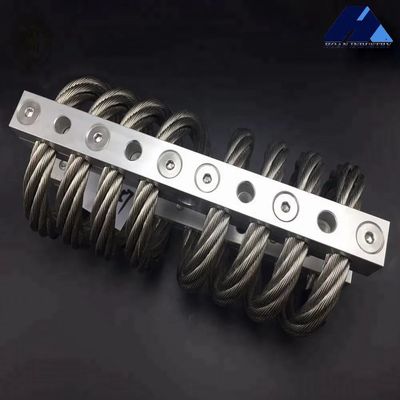

JGX-2228A Series
Technological Evolution and Industrial Trends: From Passive Protection to Intelligent Collaboration
In the field of green manufacturing, the material recycling design of JGX-2228A complies with the requirements of the EU RoHS directive. Its metal components can be 100% recycled, and rubber components use bio-based materials (with a content of ≥30%), resulting in an 80% reduction in the release of harmful substances during disposal compared to traditional products. This environmental protection feature has made it favored in green building projects. After a precision laboratory in a national low-carbon park adopted this product, its vibration control indicators met the ISO 14001 standard, and it also obtained the LEED Gold certification.
Facing future challenges, Hoan Microwave is exploring multi-physics field coupling design. By combining electromagnetic damping technology with steel wire rope vibration isolation, the new model can suppress electromagnetic interference generated by equipment operation while maintaining mechanical vibration isolation performance. This innovative solution has been verified in a military project, improving the overall electromagnetic compatibility of the system by more than 50dB. With the introduction of digital twin technology, the product design cycle has been shortened by 30%, and customers can customize personalized vibration isolation solutions through a virtual simulation platform. This "digital + physical" collaborative model is leading the industry into a new era of precise vibration isolation.
Dimension Parameter Table
| Model |
Height(mm)±6.35
|
Width
(mm)
|
Weight
(kg)
|
Mounting Options |
Thru Hole
(mm)
|
Thread
(mm)
|
C‘sink(°) |
| JGX-2228A-1250A |
133 |
140 |
8.4 |
C,D |
∅13.5+0.13-0.38 |
M12*1.75 |
90 |
| JGX-2228A-960A |
152 |
165 |
9.53 |
A,B,C,D,E,S |
| JGX-2228A-860A |
159 |
178 |
9.9 |
| JGX-2228A-665A |
191 |
210 |
11.5 |
| JGX-2228A-550A |
216 |
235 |
12.7 |
| JGX-2228A-380A |
216 |
286 |
13.9 |
Static-Load Curve
| No. |
Model |
Max Static Load
(kg)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/m)
|
Ks(Shock)
(KN/m)
|
| 1 |
JGX-2228A-1250A |
1250 |
50.8 |
2362 |
1010 |
| 2 |
JGX-2228A-960A |
960 |
67.3 |
1513 |
585 |
| 3 |
JGX-2228A-860A |
860 |
74.9 |
1270 |
469 |
| 4 |
JGX-2228A-665A |
665 |
102.9 |
800 |
263 |
| 5 |
JGX-2228A-550A |
550 |
125.7 |
585 |
180 |
| 6 |
JGX-2228A-380A |
380 |
125.7 |
377 |
138 |
| No. |
Model |
Max Static Load
(kg)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/m)
|
Ks(Shock)
(KN/m)
|
| 1 |
JGX-2228A-1250A |
889.8 |
72.4 |
1348 |
503 |
| 2 |
JGX-2228A-960A |
680.6 |
96.5 |
860 |
289 |
| 3 |
JGX-2228A-860A |
613.3 |
105.4 |
718 |
235 |
| 4 |
JGX-2228A-665A |
454.1 |
144.8 |
448 |
131 |
| 5 |
JGX-2228A-550A |
331.6 |
177.8 |
327 |
89 |
| 6 |
JGX-2228A-380A |
215.3 |
177.8 |
212 |
70 |
| No. |
Model |
Max Static Load
(kg)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/m)
|
Ks(Shock)
(KN/m)
|
| 1 |
JGX-2228A-1250A |
626.5 |
53.3 |
618 |
618 |
| 2 |
JGX-2228A-960A |
361.5 |
71.1 |
356 |
356 |
| 3 |
JGX-2228A-860A |
294.9 |
77.5 |
291 |
291 |
| 4 |
JGX-2228A-665A |
165.3 |
108.0 |
163 |
163 |
| 5 |
JGX-2228A-550A |
113.2 |
132.1 |
112 |
112 |
| 6 |
JGX-2228A-380A |
77.6 |
132.1 |
77 |
77 |
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.
Q: How long is your delivery time?
A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days
Q: What's the weight and measurement for the product?
A: Different size with differenct amount, please contact us for details.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, OEM service available
Q: What do you need to know for fast quotation?
A:I need your equipment weight, volume; Shock and vibration requirements of the equipment; We would appreciate these details on the application environment of the device
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company.We are located in Xi'an, Shaanxi, China

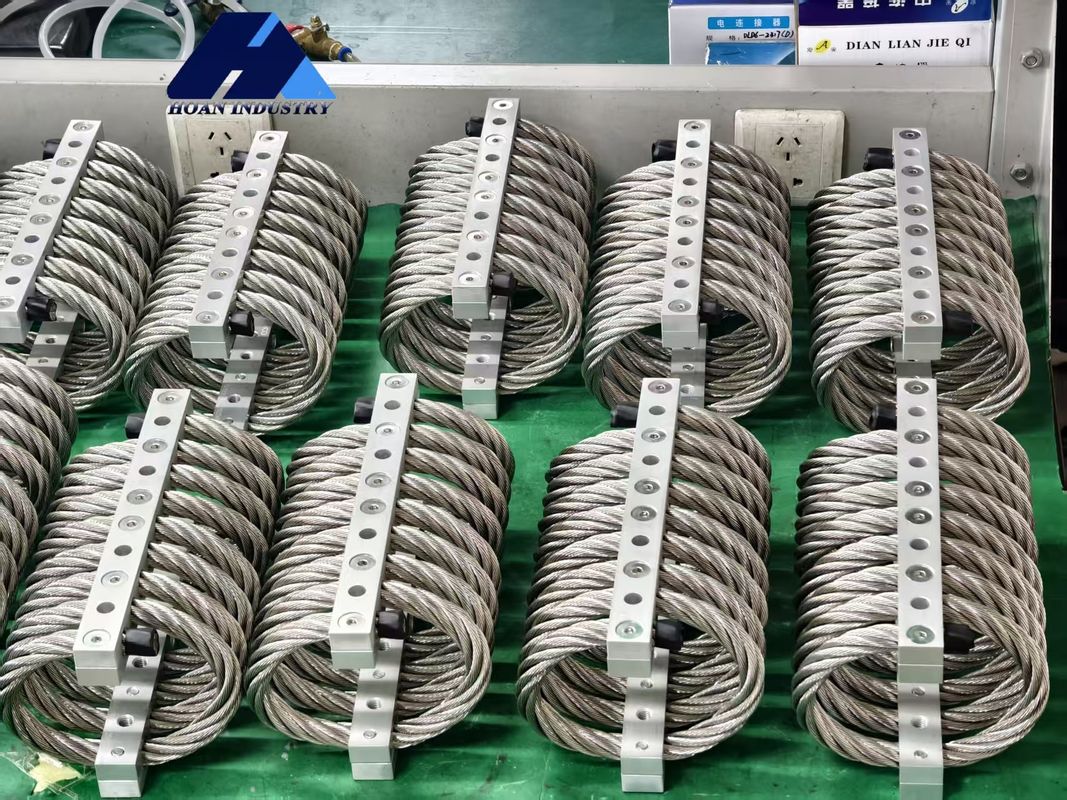

Customer Photos
