GR5-27A-A Steel Wire Rope Vibration Isolator for Aerospace and

Name: GR5-27A-A Steel Wire Rope Vibration Isolator for Aerospace and
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR5-27A-A
Availability: InStock

Brand Name:	Hoan
Model Number:	GR5-27A-A
MOQ:	4
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

GR series.pdf

Vibration Isolation Efficiency:

90%

Shape:

Cylindrical

Installation Type:

Vertical

Structure:

Helical

Applications:

Aerospace, , Industrial

Operating Temperature:

-40 To 200 Degrees Fahrenheit

After Warranty Service:

Online Support

Mounting Hole Diameter:

Characteristic:

Wide Working Frequency, Long Li

Resonance Frequency:

15Hz

Mounting Orientation:

Vertical

Customization:

Available

Compression Ratio:

1:2

Highlight:

GR5-27A-A Wire Rope Isolator

Wire Rope Vibration Isolator

Aerospace Wire Rope Vibration Isolator

Product Description

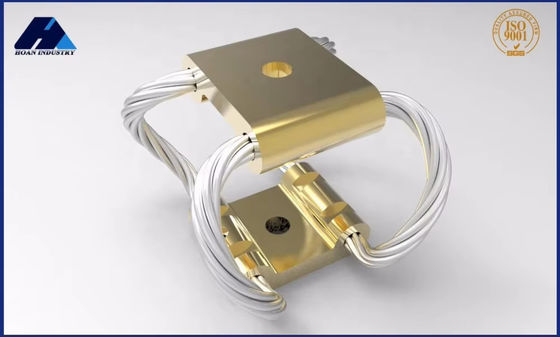

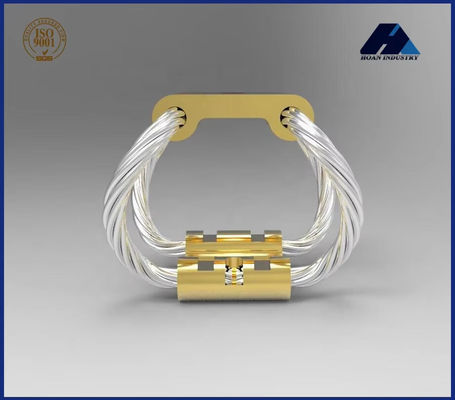

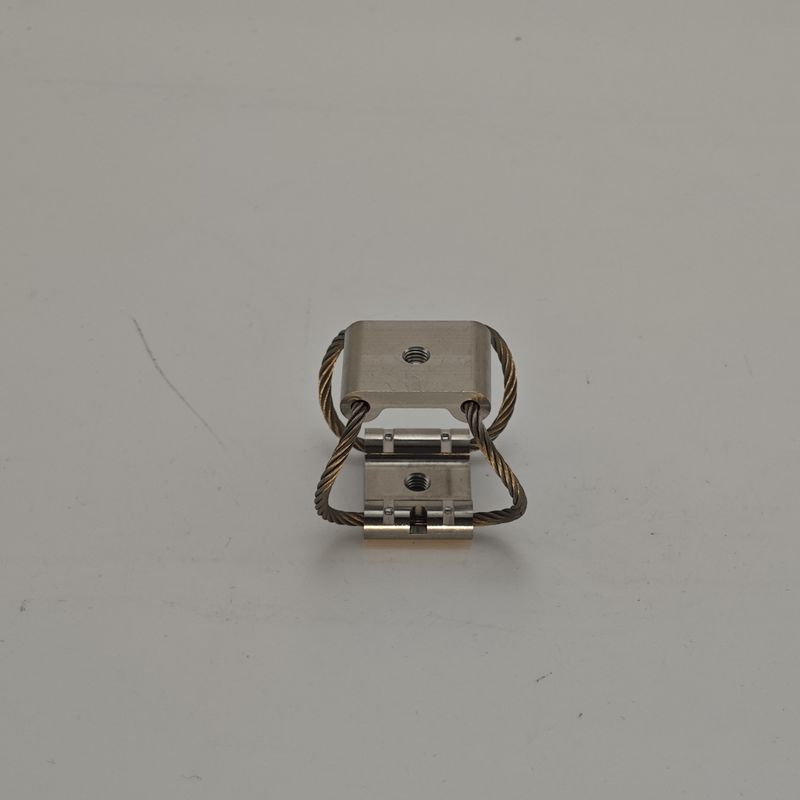

GR5-27A-A Steel Wire Rope Vibration Isolators

Perfect balance of static and dynamic stiffness for demanding industrial applications.

Product Specifications

Attribute	Value
Vibration Isolation Efficiency	90%
Shape	Cylindrical
Installation Type	Vertical
Structure	Helical
Applications	Aerospace, , Industrial
Operating Temperature	-40 to 200°F (-40 to 93°C)
Resonance Frequency	15Hz
Compression Ratio	1:2
Customization	Available

GR5 Series Features

The GR series steel wire rope vibration isolators feature an innovative design with -quality standards. Constructed from multiple strands of stainless steel wire ropes wound through a specialized process, these isolators effectively dissipate vibration energy through friction and deformation between steel wires.

Key advantages of the GR series include:

Unique combination of high static stiffness and low dynamic stiffness
Wide operating temperature range (-55°C to +150°C)
Exceptional corrosion resistance
Service life exceeding 10 years
Superior anti-aging and oil resistance compared to rubber isolators
Compliance with standards (GJB150A-2009)
Consistent performance with resonance frequency of 5-15Hz and damping ratio of 0.05-0.15

Dimensions

Model	Height±1.5 (mm)	Width (mm)	Weight (kg)	Mounting Options	Thru Hole(mm)	Thread (mm)	C'sink(°)
GR5-80A-A	41	48	0.72	A,B,C,D,E,S	∅7	M6*1.0	90
GR5-38A-A	53	54	0.77
GR5-27A-A	60	59	0.81
GR5-16A-A	76	67	0.9

Performance Data

Static-Load Curve:

Frequently Asked Questions

Q: Are you a manufacturer or a trading company?

A: We are a manufacturer with our own production facilities, ensuring full quality control and competitive pricing.

Q: Can you customize products?

A: Yes, we offer customized solutions tailored to your specific requirements.

Q: What is the lead time?

A: Samples take 2-5 days. Mass production typically requires 7-20 days, with faster delivery when stock is available.

Q: Do you offer samples?

A: Yes, sample orders are accepted.

Q: What shipping options are available?

A: Worldwide shipping is available. Please contact us for current shipping costs.

Q: Do you offer bulk order discounts?

A: Yes, we provide discounts for bulk orders based on quantity.

Customer Installation Example
