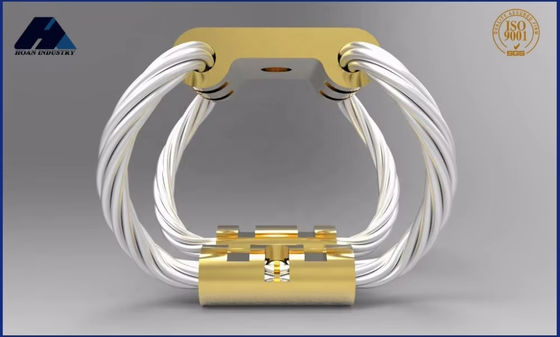

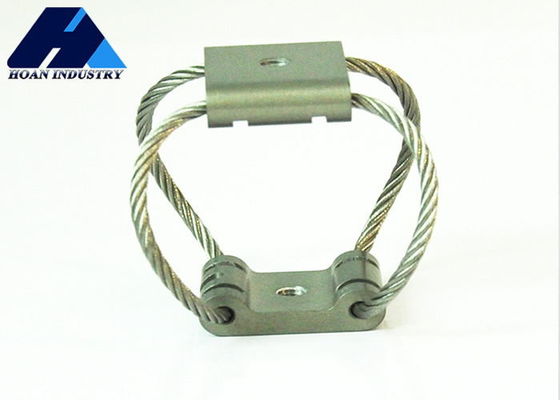

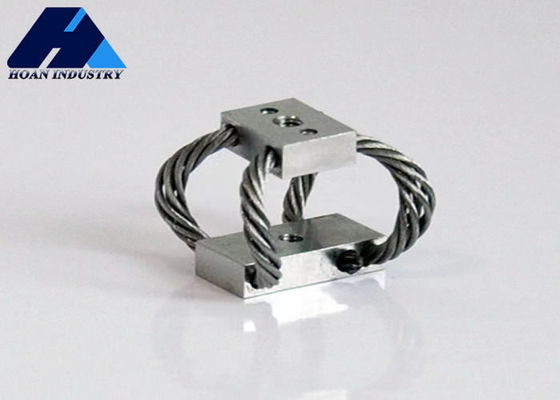

Name: GR6-93A-A Steel Wire Rope Vibration Isolator for Industrial Machinery
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR6-93A-A
Availability: InStock

Home > Products > Wire Rope Vibration Isolator >

GR6-93A-A Steel Wire Rope Vibration Isolator for Industrial Machinery

GR6-93A-A Vibration Isolator

Steel Wire Rope Vibration Isolator

Industrial Machinery Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

GR6-93A-A

Document:

GR6 series Vibration Isolat...or.pdf

Request A Quote

GR6-93A-A Steel Wire Rope Vibration Isolator for Industrial Machinery

Product Details

Resonance Frequency:

10Hz

Operating Temperature:

-40℃ To 80℃

Shock Absorption:

Up To 90%

Isolator Type:

Helical

Maximum Tension:

0.5 Inch

Installation:

Wall Mounted

Packing:

Standard Packing

Vibration Frequency:

10-100Hz

Maintenance:

Low

Application:

Industrial Machinery

Applications:

Marine And Industrial Engine Mounts

Shock Resistance:

30g/11ms

Number Of Wires:

Installation Type:

Vertical

Isolation Frequency Range:

5Hz To 100Hz

Highlight:

GR6-93A-A Vibration Isolator

Steel Wire Rope Vibration Isolator

Industrial Machinery Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,MoneyGram,Western Union

JGX-1598 Vibration Mounts Versatile Mounting Options and Size Variation for Any Field JGX-1598D-657B

Get Best Price

Video

JGX-2228A-1250A Wire Rope Vibration Isolator The Future of Industrial Machinery Vibration Isolation

Get Best Price

JGX-2228A-380A Intelligent Collaboration and Green Manufacturing with Wire Rope Vibration Isolator

Get Best Price

JGX-2228A-550A The Ultimate Solution for Vibration Control in Cutting-Edge National Defense and Industrial Manufacturing

Get Best Price

86-29-88292913

Contact Now

Product Description

Precision Instrument and Communication Equipment Protection GR6-93A-A Steel Wire Rope Vibration Isolator

Product Specifications

Attribute	Value
Resonance Frequency	10Hz
Operating Temperature	-40℃ to 80℃
Shock Absorption	Up to 90%
Isolator Type	Helical
Maximum Tension	0.5 inch
Installation	Wall Mounted
Vibration Frequency	10-100Hz
Shock Resistance	30g/11ms
Number Of Wires	7
Installation Type	Vertical
Isolation Frequency Range	5Hz to 100Hz

GR6 Series Overview

The GR6 series steel wire rope vibration isolators from Xi'an Hoan Microwave Co., Ltd. are manufactured to military-grade standards, offering exceptional reliability for civilian applications. These isolators feature high-strength stainless steel wire ropes wound in a special structural design that provides multi-directional vibration isolation, effectively attenuating wide-frequency band vibration and impact energy.

Ideal for protecting precision instruments, communication equipment, and vehicle-mounted electronic systems, the GR6 series outperforms traditional rubber isolators with superior corrosion resistance, anti-aging properties, and environmental adaptability. Its unique nonlinear stiffness characteristic dynamically adjusts vibration isolation based on load, significantly extending equipment lifespan.

Dimension Parameters

Model	Height (mm)	Width (mm)	Weight (kg)	Mounting Options	Thru Hole (mm)	Thread (mm)	C'sink (°)
GR6-142A-A	47	54	0.91	A,B,C,D,E,S	∅7	M6*1.0	90
GR6-93A-A	55	59	0.99
GR6-67A-A	64	64	0.99
GR6-36A-A	79	73	0.99

Static-Load Curve

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	GR6-142A-A	142	22.1	32	16
2	GR6-93A-A	93	29.5	20	9.6
3	GR6-67A-A	67	37.6	15	5.3
4	GR6-36A-A	36	51.6	7.9	2.6

Frequently Asked Questions

Q: Are you a manufacturer or a trading company?

A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process. This allows us to offer competitive pricing and customized solutions directly to our clients.

Q: Can you customize products for us?

A: Yes, we have the capability to customize our products to meet your specific needs. Please contact us with your requirements, and our team will work with you to create a tailored solution that fits your preferences.

Q: What is the lead time?

A: Samples typically take 2 to 5 days. For mass production, estimated lead time is 7 to 20 days, with faster delivery available when our factory has stock.

Q: Can I get some samples before placing an order and how long for a sample?

A: Yes, sample orders are accepted.

Q: How is your shipping?

A: 1) Worldwide shipping service available
2) Please contact before ordering as shipping costs vary.

Q: Do you offer discounts for bulk orders?

A: Yes, we offer discounts for bulk orders. The discount percentage may vary depending on the order quantity.

Unique Characteristics of Xi'an Hoan's Vibration Isolators

No creep or ageing
High internal damping
Very wide temperature range
Wide variety of possible fittings
Rapid and economical prototyping
Extremely rugged construction and long lifespan
Excellent combined shock and vibration isolation
Not affected by chemical agents, seawater, ozone, UV rays
