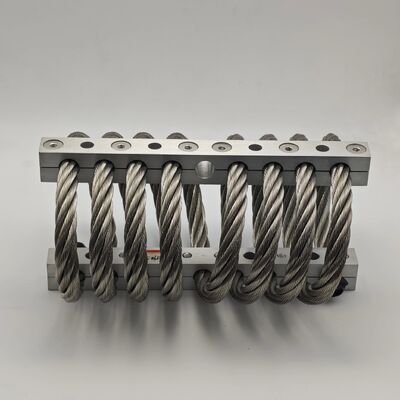

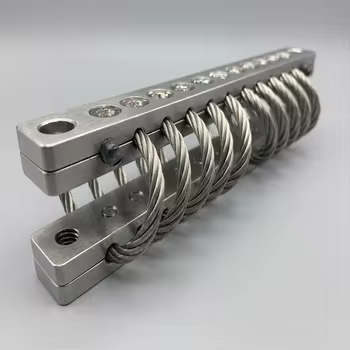

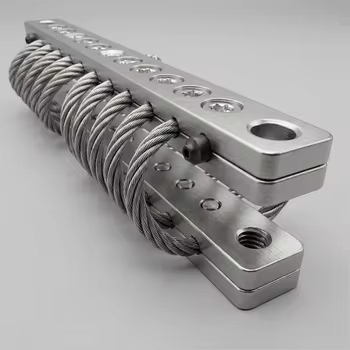

JGX-0240D-8.6A Medium-Load Rugged Wire Rope Vibration Isolator for All-Weather Zero Maintenance Protection

JGX-0240D-8.6A Medium-Load Rugged Wire Rope Vibration Isolator

Product Overview

The JGX-0240D-8.6A is a medium-load rugged wire rope vibration isolator purpose-built for all-weather zero maintenance protection in the harshest outdoor and industrial environments. Fabricated from premium AISI 316L stainless steel with proprietary D-grade enhanced damping geometry, this isolator delivers calibrated vibration attenuation across a 3-30 kg payload range while requiring absolutely no lubrication, adjustment, or periodic servicing throughout its entire service life. The 316L material choice — with its molybdenum content — provides superior pitting and crevice corrosion resistance, making this mount suitable for coastal, offshore, chemical processing, and high-humidity installations where standard 304-grade isolators exhibit premature degradation.

Key Features

• Medium-Load Optimized Design: Precision-tuned for 3-30 kg payloads — provides the ideal stiffness-to-damping ratio for telecom RRUs, railway signal processors, marine navigation electronics, and industrial sensor packages without the unnecessary mass and cost of heavier-duty isolators.
• All-Weather Zero Maintenance Architecture: IP67-equivalent environmental sealing combined with electropolished 316L surfaces eliminates all maintenance requirements. No rubber components to crack in UV, no lubrication ports to service, no corrosion inhibitors to reapply — simply install and the isolator maintains its rated performance through rain, salt fog, sandstorms, and temperature swings from -70°C to +300°C.
• D-Grade Enhanced Damping: Proprietary coil geometry optimization raises the damping ratio to 0.15-0.25 C/Cc, delivering transmissibility below 3.5 at resonance — a 20-30% improvement over standard-grade wire rope isolators in the same form factor.
• 316L Stainless Steel Construction: Molybdenum-alloyed 316L provides significantly better resistance to chloride-induced stress corrosion cracking than 304-grade materials, validated through 1000-hour salt spray testing per ASTM B117 with zero red rust formation.
• Broad-Spectrum Vibration Isolation: Natural frequency of 10-15 Hz under rated load with isolation efficiency exceeding 92% above 25 Hz, effectively attenuating the full spectrum of transportation, machinery, and environmental vibration sources.
• Predictable Long-Life Performance: All-metal passive damping mechanism exhibits no creep, aging, or fatigue degradation — rated dynamic stiffness of 80-250 N/mm remains stable throughout a 15+ year design life under normal industrial duty cycles.

Applications

• Outdoor 4G/5G telecom base station remote radio units (RRU)
• Railway trackside signaling, axle counter, and balise cabinets
• Marine navigation displays, GPS compasses, and fish-finding sonar
• Wind turbine nacelle pitch control and condition monitoring systems
• Remote solar farm inverter, battery storage, and SCADA enclosures
• Offshore platform safety instrumentation and gas detection panels
• Industrial compressor, vacuum pump, and chiller skid mounts
• Mining conveyor monitoring, ventilation sensor, and communication nodes

Technical Specifications

Why Choose JGX-0240D-8.6A

When your equipment operates at remote sites where a service visit costs more than the equipment itself, the JGX-0240D-8.6A delivers proven all-weather reliability without the maintenance burden. Unlike rubber isolators that crack, harden, and delaminate after 2-3 years of outdoor exposure, our all-metal 316L architecture maintains its calibrated damping performance through decades of sun, salt, and storm cycles. The D-grade enhanced damping geometry provides an additional margin of resonance control that protects sensitive electronics during multi-frequency vibration events — a critical advantage when isolating equipment exposed to combined wind, traffic, and machinery-induced excitation. For system integrators and OEMs seeking a single qualified vibration isolation part number that can be specified with confidence from tropical coastlines to arctic installations, the JGX-0240D-8.6A-01 offers a field-validated, fully traceable, zero-maintenance solution backed by ISO 9001:2015 quality systems.
