JGX-1278D-370B Drop-in Replacement Wire Rope Vibration Isolator for Precision Static Load Matching Industrial Systems

JGX-1278D-370B Wire Rope Vibration Isolator — Cost-Effective Drop-in Replacement Vibration Mount with Precision Load Tuning

Wire Rope Isolator Overview

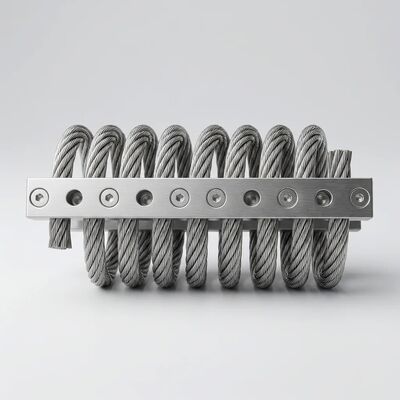

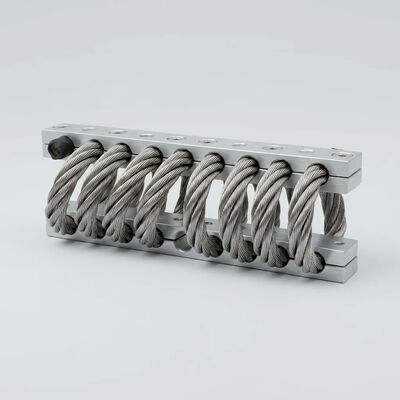

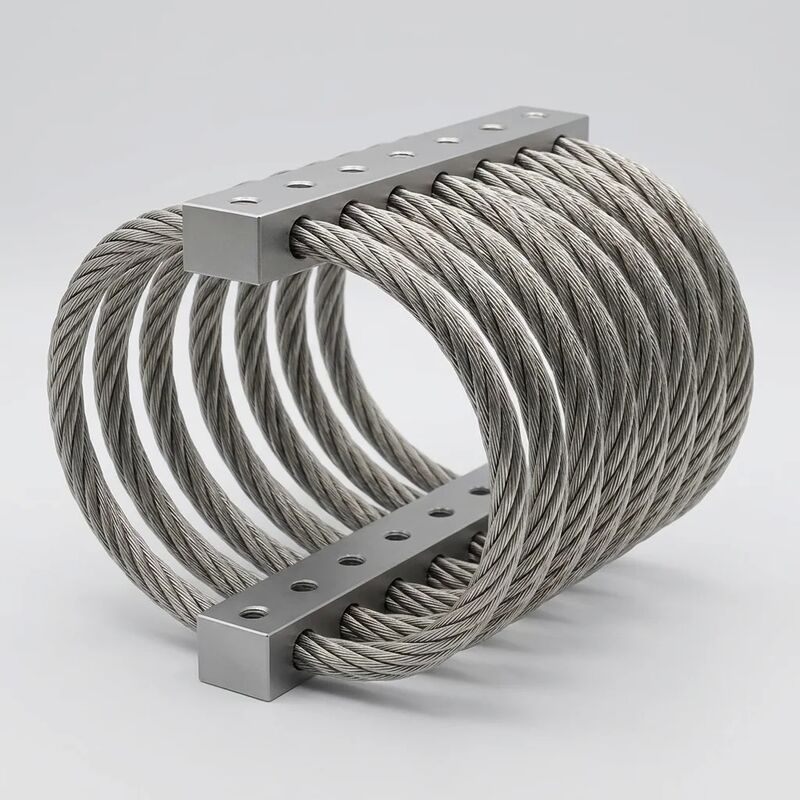

The JGX-1278D-370B is a helically wound stainless steel wire rope vibration isolator engineered as a direct-fit replacement for OEM and aftermarket isolation mounts across industrial equipment platforms. Featuring an 8-loop SS304 wire rope core (7.8 mm diameter, 7×19 strand construction) clamped between 6061-T6 aluminum alloy mounting bars with clear hard anodized finish, this all-metal isolator delivers 5–120 kg static load capacity per mount with no rubber, no fluids, and no scheduled maintenance—ever.

Cost-Effective Drop-in Replacement Strategy

Procurement managers and maintenance engineers face a persistent challenge: OEM-branded vibration isolators carry premium pricing with extended lead times, yet the mounting footprint is standardized. The JGX-1278D-370B addresses this directly with standardized Ø10.5 mm through-hole mounting geometry that aligns with industry-common bracket patterns. Installation requires only standard M10 fasteners (Grade 8.8, torqued to 28–32 N·m with flat washers) and no drilling, adapter fabrication, or equipment modification. Compared to equivalent-capacity OEM isolators, the JGX-1278D-370B typically achieves 15–30% per-unit cost savings while maintaining full vibration isolation performance across the 10–2000 Hz excitation bandwidth. For operators maintaining mixed fleets of equipment from multiple manufacturers, this single part number consolidates inventory and reduces SKU complexity.

Precision Static Load Matching

Generic vibration mounts are sold by approximate weight range, but real equipment has a specific mass distribution and center of gravity that demands precise isolator tuning. Each JGX-1278D-370B production batch undergoes sampled static load-deflection characterization at three load points within the 5–120 kg rated envelope: minimum load (5 kg), median load (60 kg), and maximum load (120 kg). The resulting load-deflection curve verifies that the isolator's progressive non-linear stiffness profile keeps the natural frequency within 4–7 Hz across the entire useful load range, with Coulomb friction damping contributing a 0.12–0.22 damping ratio. This limits the resonance amplification factor (Q) to below 2.5—effectively preventing the destructive magnification that occurs when excitation frequency coincides with the mounted system's natural frequency. For critical installations, we offer 100% individual unit testing with serialized load-deflection reports.

Premium Industrial Manufacturing Standards

The JGX-1278D-370B reflects precision manufacturing quality visible in every detail:

• Wire Rope Finish: The 7.8 mm SS304 wire rope (right regular lay, 7×19 construction per ASTM A313) receives post-forming electropolishing to a surface roughness of Ra ≤ 0.35 μm. This eliminates surface micro-cracks from the coiling process, enhances corrosion resistance, and ensures uniform inter-strand friction characteristics for consistent damping performance across millions of load cycles.
• Clamping Bar Aesthetics: 6061-T6 aluminum alloy bars are CNC-machined with chamfered edges and receive a clear hard anodized coating that provides a durable, fingerprint-resistant surface. The anodizing layer also electrically isolates the aluminum from the stainless steel rope, preventing galvanic corrosion in humid or salt-laden environments.
• Permanent Identification: Each clamping bar carries a laser-etched model designation and batch code. No adhesive labels, no ink stamps that fade, and no separate tags that detach during shipping or installation. The etching depth ensures legibility after years of service in harsh industrial environments.

Technical Specifications

Frequently Asked Questions

Q: Can the JGX-1278D-370B directly replace my existing vibration mounts?
A: If your current mounts use a through-hole mounting interface with hole centers compatible with our Ø10.5 mm pattern and M10 fasteners, the JGX-1278D-370B installs without bracket modification. Contact us with your existing isolator brand and part number for a mounting compatibility assessment.

Q: How do I select the correct number of mounts for my equipment?
A: Divide your equipment's total mass by the number of mounting points. Each JGX-1278D-370B should carry 5–120 kg. For optimal isolation, aim for the middle 40–80 kg per mount. Our application engineers can review your equipment specifications and recommend the ideal configuration.

Q: Does the isolator performance change over time?
A: No. The all-metal construction eliminates the aging mechanisms that degrade rubber and elastomeric mounts. The Coulomb friction damping characteristic stabilizes after an initial bedding-in period of approximately 1000 load cycles and remains consistent for the service life of the equipment.

Typical Industrial Applications

Diesel generator set mounting platforms • Industrial chiller and HVAC compressor frames • Railway signaling and communication equipment enclosures • Mining and quarry machinery operator cabins • Marine auxiliary equipment panels • Mobile telecom shelter electronics • Packaging machinery vibration isolation • Pump and motor base frames • Industrial fan and blower mounting • Test and measurement laboratory tables

Request a complimentary mounting pattern compatibility check, cross-reference your current isolator part numbers, and receive a competitive OEM-alternative quotation. Our engineering team provides load-deflection data, 3D CAD models, and application-specific installation recommendations at no charge.
