JGX-1278D-370B Industrial Compliance Wire Rope Vibration Isolator for Cost-Effective Precision Load Applications

JGX-1278D-370B Wire Rope Vibration Isolator — Fully Traceable Industrial Vibration Control with Complete Compliance Documentation

When Compliance Documentation Matters as Much as Performance

For industries governed by regulatory oversight, supplier qualification requirements, and third-party audit frameworks, a vibration isolator is more than a mechanical component—it's a documented part within a quality-assured supply chain. The JGX-1278D-370B is manufactured specifically for these demanding environments, with 100% material traceability spanning from raw SS304 wire rope coil to finished isolator, supported by a comprehensive documentation package that satisfies ISO 9001:2015, customer-specific QMS requirements, and third-party inspection protocols.

Industrial Compliance Framework

Every JGX-1278D-370B is produced within a quality management system audited to ISO 9001:2015. Our compliance framework extends beyond basic certification to include:

• Certificate of Conformance (CoC): Issued per production lot, referencing the specific heat number of the SS304 wire rope, the anodizing batch of the 6061-T6 aluminum bars, and the production date range. Each CoC is digitally archived and retrievable by product serial number.
• RoHS and REACH Compliance: The all-metal SS304 + 6061-T6 construction is inherently compliant with EU RoHS Directive 2011/65/EU and REACH Regulation (EC) 1907/2006. No restricted substances, no SVHC concerns, no organic compounds subject to regulatory phase-out.
• Conflict Minerals Reporting: Raw material sourcing documentation supports CMRT (Conflict Minerals Reporting Template) filings under Section 1502 of the Dodd-Frank Act for customers who require supply chain due diligence.
• Optional Third-Party Verification: We coordinate with TÜV Rheinland, SGS, Bureau Veritas, or your nominated inspection agency for pre-shipment inspection, material verification, and dimensional conformance auditing.

End-to-End Material Traceability

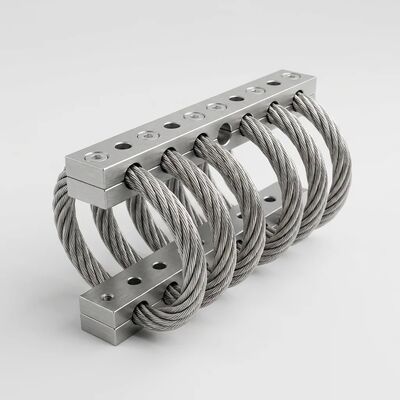

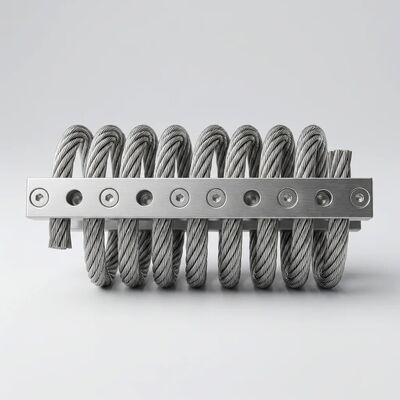

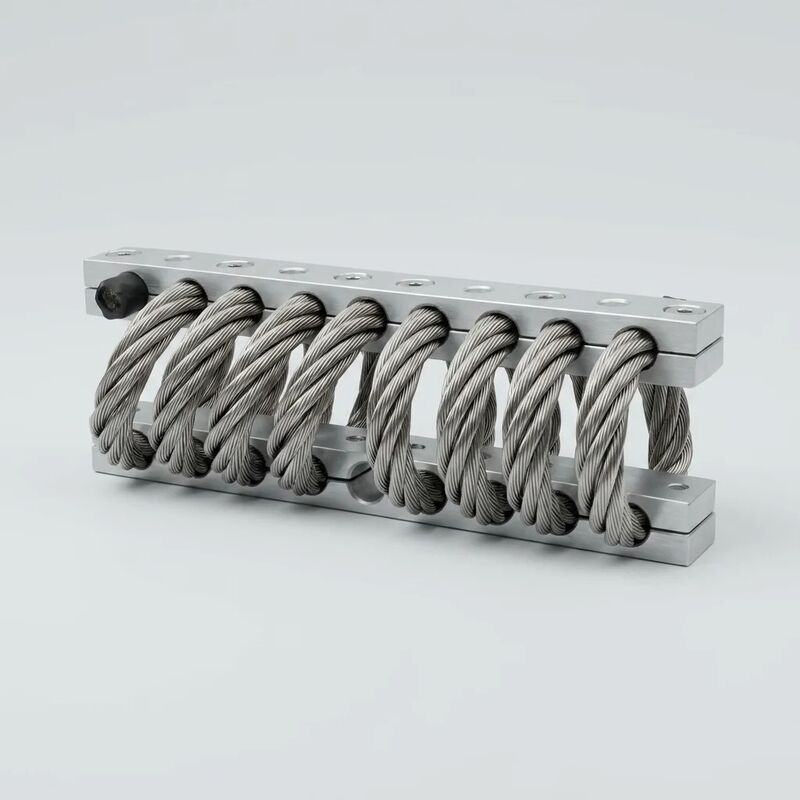

Each JGX-1278D-370B carries a laser-etched, human-readable serial identifier on both clamping bars, permanently linking the physical unit to its digital manufacturing record. This record captures:

• SS304 Wire Rope: Mill test report (MTR) per ASTM A313/A313M, including heat number, chemical composition (C, Mn, Si, P, S, Cr, Ni), tensile strength, and elongation. The wire rope is formed from 7×19 right regular lay construction with a nominal diameter of 7.8 mm.
• 6061-T6 Aluminum Bars: Extrusion lot certification with alloy composition verification, anodizing process parameters (bath chemistry, current density, coating thickness measured by eddy current), and seal quality per ASTM B680.
• Manufacturing Execution Data: Coiling workstation, assembly torque values, electropolishing bath parameters, final inspection measurements (loop geometry, surface roughness Ra, dimensional conformance to drawing), and inspector sign-off.
• Load-Deflection Characterization: Static load test results at minimum, median, and maximum rated loads, demonstrating that the isolator's natural frequency remains within the specified 4–7 Hz band and the Coulomb friction damping ratio stays between 0.12–0.22.

This traceability depth supports regulated industry requirements including nuclear power auxiliary equipment qualification, railway component type-approval documentation, and offshore equipment verification schemes.

Cost-Effective Precision Load Performance

Regulatory compliance and cost efficiency are not mutually exclusive. The JGX-1278D-370B consolidates three value pillars into a single part number:

Precision Load Range: Each mount supports 5–120 kg static load with a natural frequency of 4–7 Hz. The progressive, non-linear stiffness curve (soft at low amplitude excitation, stiffening under high-energy shock) provides effective vibration isolation from approximately 10 Hz to 2000 Hz. Resonance amplification is limited to below 2.5 times input amplitude, protecting sensitive payloads during equipment start-up and shutdown transients when excitation sweeps through the natural frequency.

All-Metal Durability: Operating continuously from -70°C to +300°C, the isolator withstands salt spray (>500 h per ASTM B117), total immersion in diesel fuel and hydraulic oil (72 h, no property change), and UV exposure (1000 h xenon arc, zero degradation—no organic content to oxidize). These characteristics make it suitable for arctic mining operations, desert solar installations, tropical marine environments, and high-altitude telecommunications sites.

Standardized Integration: Ø10.5 mm through-holes accept M10 Grade 8.8 fasteners (28–32 N·m installation torque). Symmetrical bar geometry allows vertical, horizontal, or 45° canted mounting without performance variation. No specialized tooling, no field adjustment, no periodic re-torquing required.

Compliance Documentation Package

Regulated Industry Applications

Power generation turbine auxiliary systems • Nuclear plant balance-of-plant equipment • Railway rolling stock electronics (EN 61373 environments) • Offshore platform safety-critical panels • Pharmaceutical manufacturing isolator frames • Food processing conveyor vibration control • Semiconductor fabrication support equipment • High-voltage substation control cabinets • Desalination plant pump isolation • LNG terminal instrumentation shelters

For projects requiring complete compliance documentation packages prior to shipment—including pre-assembled supplier qualification dossiers—contact our quality assurance team. We routinely support customer onboarding with customized documentation aligned to your procurement specifications, with typical turnaround of 48 hours for standard packages.
