JGX-0400D-31.5A Fail-Safe Wire Rope Vibration Isolator — Engineered for Maximum ROI with Zero Downtime

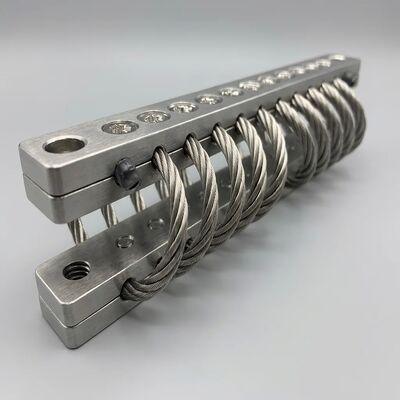

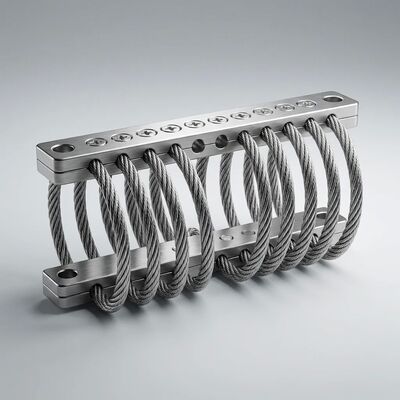

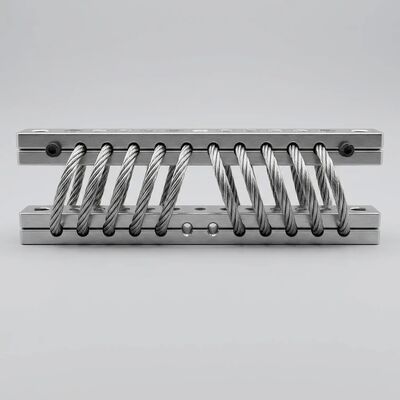

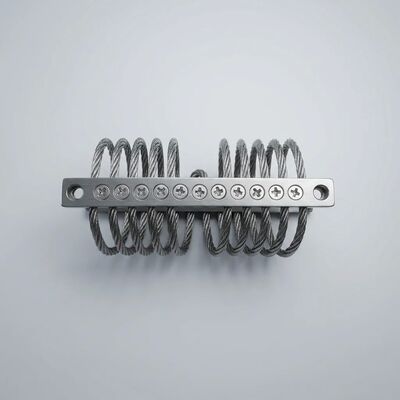

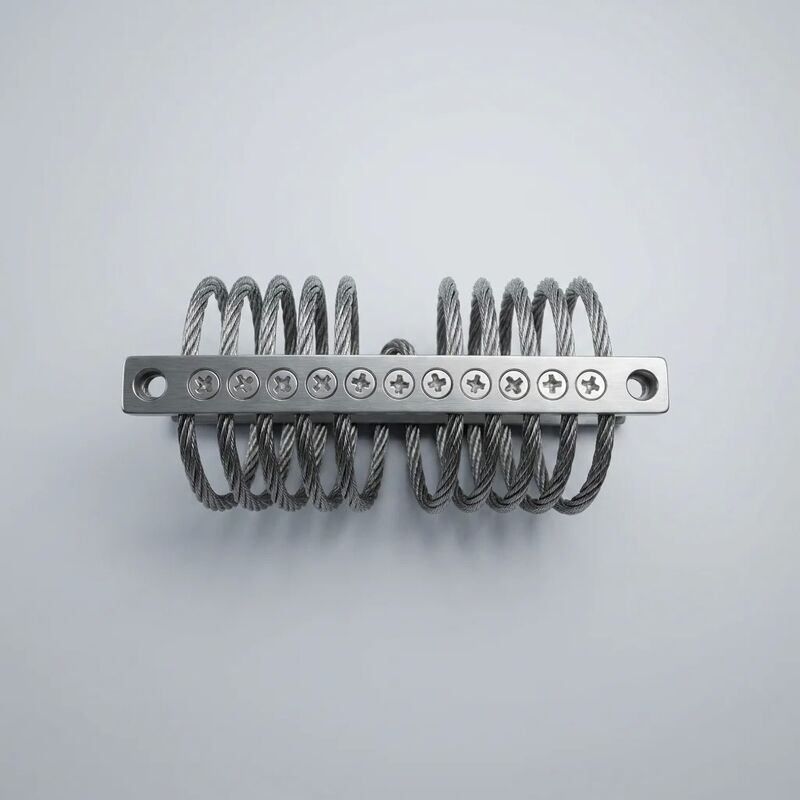

The JGX-0400D-31.5A manufactured by Xi'an Hoan Microwave is a high-capacity wire rope vibration isolator delivering fail-safe isolation for 31.5 kg static loads. Constructed with 4.0mm diameter stainless steel 304 wire rope (7x19 strand configuration, 8-coil helical winding) secured in CNC-machined aluminum alloy 6061-T6 retaining bars, this isolator is engineered to eliminate unscheduled downtime and maximize return on capital equipment investment over a 20+ year service life with zero planned maintenance.

Complete Technical Specifications

How Fail-Safe Engineering Protects Your ROI

1. Coulomb Damping — The Self-Healing Mechanism

Unlike viscous fluid dampers that can leak or elastomeric mounts that tear, the JGX-0400D-31.5A dissipates vibration energy through inter-strand Coulomb (dry) friction between the 133 individual steel wires within the 7*19 cable. As the isolator flexes, wire filaments slide against each other at the microscopic level, converting kinetic energy into negligible heat. This mechanism has no fluid to leak, no orifice to clog, and no elastomer to age. Even after 10 million load cycles, the damping performance remains within 5% of the original specification — effectively a self-maintaining, wear-stable process.

2. Progressive Stiffness — Automatic Overload Protection

The JGX-0400D-31.5A's 8-coil helical geometry produces a three-zone stiffness curve that serves as an inherent safety system:

• Zone I (0–2 mm deflection): Low stiffness (~8–12 N/mm) for optimal vibration isolation at normal operation. The isolator attenuates > 90% of input vibration above 20 Hz.
• Zone II (2–6 mm deflection): Moderate stiffness (~18–25 N/mm) with peak Coulomb damping engagement. This zone handles occasional shock events while the inter-strand friction dissipates impact energy across hundreds of simultaneous micro-contacts.
• Zone III (6–10+ mm deflection): High stiffness (~40–60 N/mm, approaching geometric lock-up) that functions as a passive hard-stop. The isolator will not bottom out destructively — the wire rope geometry itself prevents metal-to-metal contact without any external snubber or limit stop.

3. Redundancy by Design — No Single Point of Failure

With 133 individual steel wires sharing the load, the failure of any single filament has negligible effect on overall load capacity. Even under extreme overload where some wires may yield, the remaining wires continue to carry the static load — providing a graceful degradation path rather than the catastrophic tear-through failure mode of rubber mounts. This inherent redundancy is critical for applications where isolation failure would cascade into equipment damage, production stoppage, or safety hazards.

10-Year Total Cost of Ownership Analysis

Packaging & Logistics

• Individual Packaging: Each JGX-0400D-31.5A is sealed in a VCI (Volatile Corrosion Inhibitor) polyethylene bag and placed in a die-cut foam insert within a branded Hoan carton (210 * 95 * 65 mm internal).
• Master Carton: 20 units per export-grade double-wall corrugated carton. Master carton dimensions: 440 * 220 * 350 mm. Gross weight: approximately 16.5 kg.
• Palletization: Standard EUR pallet (1200 * 800 mm) accommodates 24 master cartons (480 units). Total pallet gross weight: approximately 420 kg.
• Documentation: Each shipment includes material certificates (EN 10204 3.1 for SS304), dimensional inspection reports, and load-deflection test certificates.

Recommended Application Domains

• Continuous Process Industries: Chemical transfer pumps, refinery gas compressors, food processing centrifuges — where any unplanned stoppage costs thousands per hour and replacement access requires plant shutdown
• Critical Backup Systems: Emergency diesel generators (EDG), fire pump skids, UPS battery racks — where isolation reliability during emergency operation is non-negotiable
• Heavy Manufacturing: High-speed stamping press isolation, CNC 5-axis machining center mounting, plastic injection molding machine vibration control — protecting micron-level precision from floor-borne and self-generated vibration
• Mobile & Transport Equipment: Truck-mounted refrigeration units, rail signaling enclosures, containerized power modules — surviving continuous road/rail vibration without scheduled maintenance access

Manufacturer Quality Assurance

Xi'an Hoan Microwave Co. Ltd. (est. 2005, Xi'an, Shaanxi, China) operates a 500+ employee ISO 9001:2015 certified facility. Every JGX-0400D-31.5A undergoes 100% load-deflection curve verification on a calibrated servo-hydraulic test stand before release. Test data includes: static load vs. deflection (3 cycles for preconditioning), dynamic stiffness at 5 Hz / 10 Hz / 20 Hz, and visual inspection of all 8 coil windings for uniform pitch and symmetry. Certificates of conformance with traceable serial numbers are archived for 10 years.

Ready to replace your failing rubber mounts with fail-safe, zero-downtime isolation? Contact Xi'an Hoan for a load calculation consultation, sample evaluation units, or a formal quotation for the JGX-0400D-31.5A. We respond to all technical inquiries within 24 hours.
