JGX-0480D-72A Wire Rope Vibration Isolator Acoustic Micro-Vibration Isolation High Damping Industrial Shock Mount

JGX-0480D-72A Acoustic & Micro-Vibration Wire Rope Isolator — High Damping Coefficient for Precision Environments

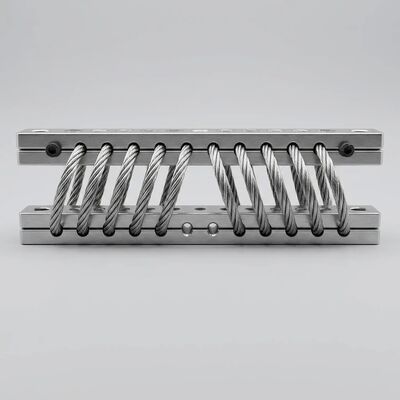

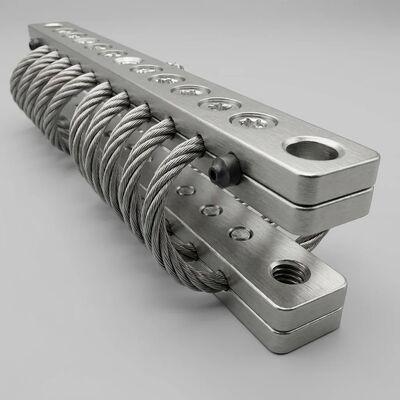

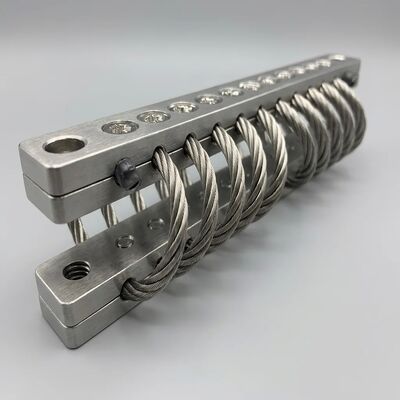

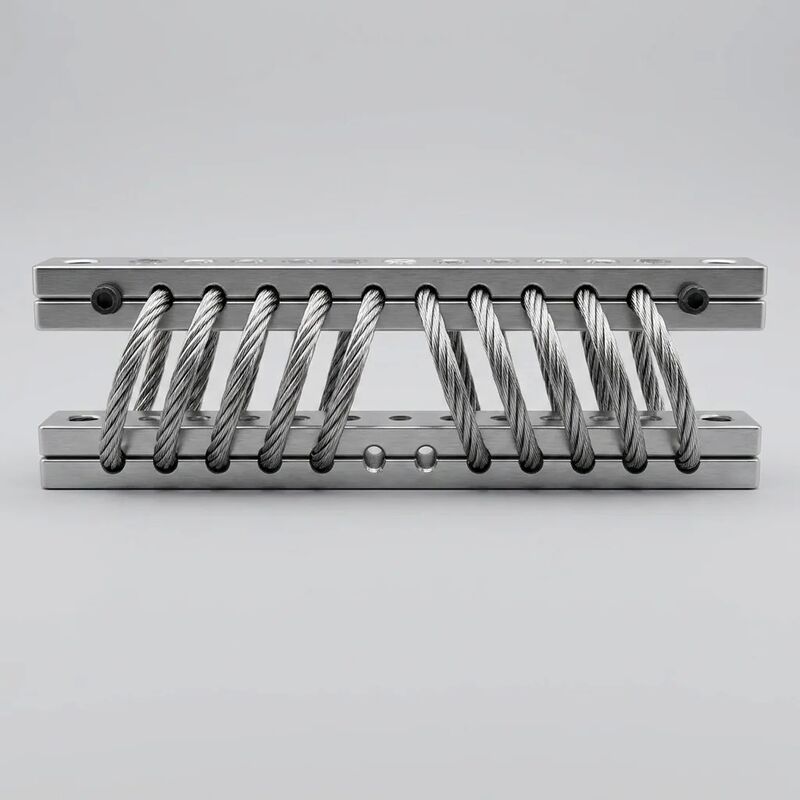

The JGX-0480D-72A by Xi'an Hoan Microwave is a specialized wire rope vibration isolator engineered for acoustic and micro-vibration isolation in environments where sub-micron displacement and audible noise transmission must be controlled with extreme precision. Built with 4.8mm diameter stainless steel 304 wire rope (7*19 strand, 10-coil helical winding) and aluminum alloy 6061-T6 retaining bars, this isolator supports a rated static load of 72 kg while delivering an exceptionally high Coulomb damping coefficient (effective damping ratio 0.15–0.30) that suppresses both structural vibration and structure-borne acoustic noise across a broad frequency spectrum.

Complete Technical Specifications

How High Coulomb Damping Suppresses Acoustic & Micro-Vibration

The Physics of Inter-Strand Energy Dissipation

Conventional rubber isolators exhibit viscoelastic damping — a mechanism that is inherently frequency-dependent and generates internal heat buildup at higher frequencies. The JGX-0480D-72A employs a fundamentally different mechanism: Coulomb (dry friction) damping distributed across the 133 individual steel wire filaments within the 7*19 cable. As the isolator flexes under vibration input, microscopic relative sliding occurs at thousands of wire-to-wire contact points throughout the cable cross-section. Each micro-slip event converts a small fraction of the vibrational kinetic energy into negligible heat — collectively producing an effective damping ratio of 0.15–0.30, substantially higher than the 0.05–0.10 typical of undamped steel springs.

Frequency-Independent Damping — Critical for Broadband Isolation

Viscoelastic damping in rubber mounts drops sharply at frequencies above 100 Hz due to the polymer's limited molecular relaxation rate. Coulomb damping, by contrast, is fundamentally rate-independent — the energy dissipated per cycle depends on the displacement amplitude, not the frequency. This means the JGX-0480D-72A maintains its high damping coefficient from sub-Hz micro-vibration (e.g., building sway at 0.1–1 Hz) through mid-frequency rotating equipment excitation (10–200 Hz) up to high-frequency structure-borne acoustic noise (500 Hz – 4 kHz). The result is effective isolation across the entire audible and sub-audible spectrum — a capability that viscoelastic mounts simply cannot match.

Micro-Vibration Performance — Sub-Micron Isolation

In precision applications such as semiconductor lithography, electron microscopy, and optical metrology, floor-borne vibration amplitudes as small as 0.1 μm can degrade instrument resolution. The JGX-0480D-72A's 10-coil geometry provides:

• Very low initial stiffness (~5–8 N/mm in the first millimeter of deflection) — the wire ropes respond elastically to sub-micron displacement without the "stiction" threshold that plagues elastomeric mounts
• No micro-slip threshold — the distributed wire contact architecture ensures damping is active even at nanometer-scale amplitudes, unlike macroscopic friction dampers that require a minimum displacement to engage
• Velocity-proportional response at micro-scale — at amplitudes below the Coulomb slip threshold, the individual wire bending stiffness provides a purely elastic response, transitioning smoothly to friction damping as amplitude increases

Acoustic Isolation — Measured Performance

Insertion loss measured per ISO 10846-2:2008, dynamic stiffness method, JGX-0480D-72A at 72 kg preload.

Application Domains

• Acoustic Labs & Anechoic Chambers: Isolating HVAC equipment, cable trays, and structural supports from the chamber shell to prevent flanking noise paths that compromise free-field measurement accuracy
• Precision Metrology & Semiconductor: Wafer inspection stages, coordinate measuring machines (CMM), laser interferometer tables — where 0.1 μm floor vibration destroys measurement repeatability
• Hospital & Healthcare: MRI chiller isolation, surgical microscope mounting, neonatal incubator vibration control — environments where both micro-vibration and audible noise directly impact clinical outcomes
• Recording Studios & Broadcast: Floating floor isolation, equipment rack mounting, HVAC decoupling — preserving signal-to-noise ratio in professional audio environments
• Research Laboratories: Optical table isolation, electron microscope foundation decoupling, laser lab equipment mounting — where building vibration is the limiting factor in experimental resolution

Factory-Direct Manufacturing at Xi'an Hoan

Xi'an Hoan Microwave Co. Ltd. (est. 2005, Xi'an, Shaanxi) operates a 500+ employee ISO 9001:2015 certified facility with full in-house CNC machining, wire rope forming, surface treatment, and 100% dynamic testing capabilities. As a factory-direct manufacturer, we eliminate distributor markups — every JGX-0480D-72A ships directly from our production line to your receiving dock with full traceability documentation. Each unit carries a unique serial number linked to its individual load-deflection test record, EN 10204 3.1 material certificates for both SS304 wire and Al 6061-T6 bar stock, and a certificate of conformance.

Need precision acoustic or micro-vibration isolation? Contact Xi'an Hoan's application engineering team. Submit your vibration spectra and isolation targets — we provide a technical proposal with predicted insertion loss curves within 48 hours.
